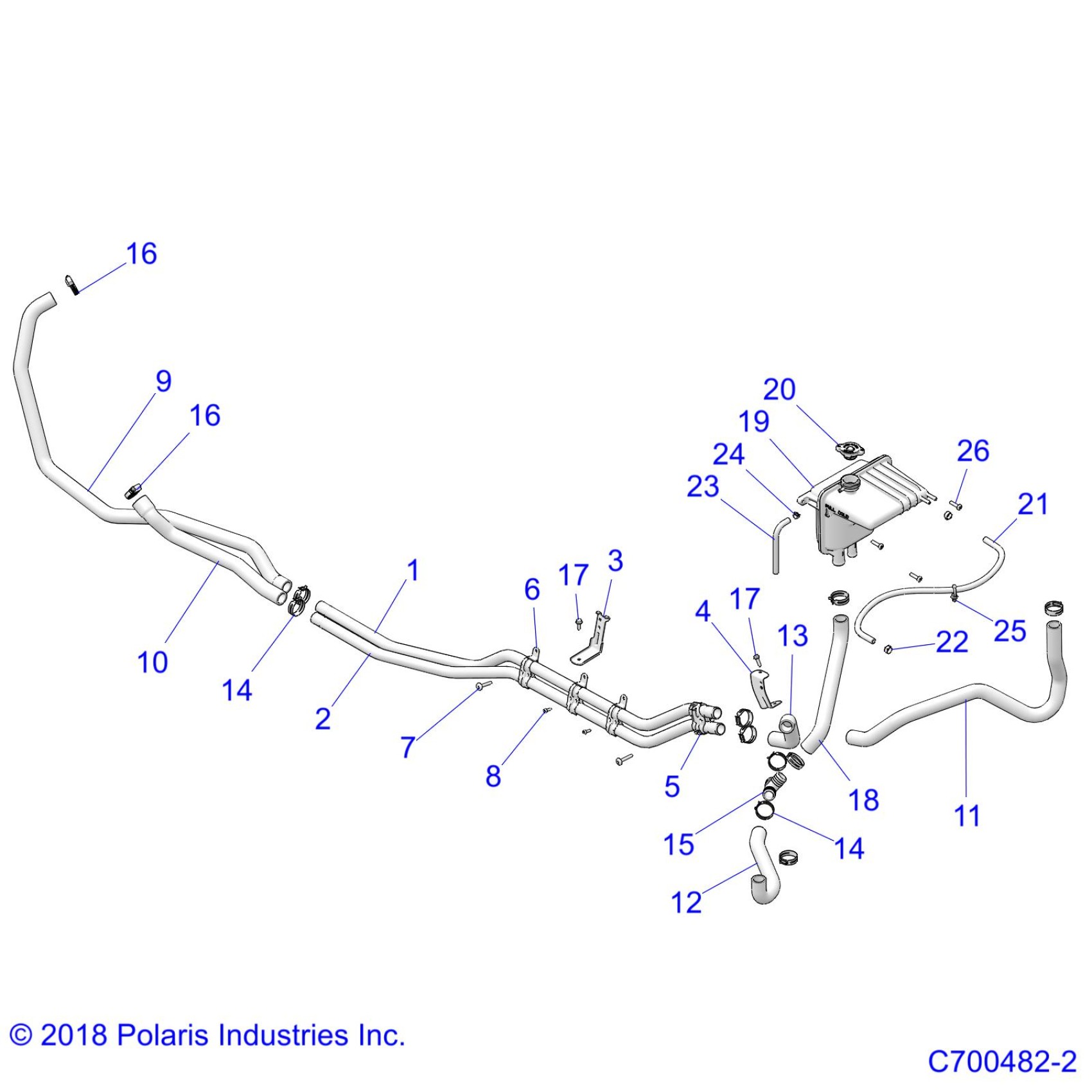

Polaris RZR XP TURBO S VELOCITY (R02) - Z19VEE92AM/BM ENGINE, COOLING MAIN LINES - Z19VEE92AM/BM (C700482-2) Diagram

#

Description
Price

1

TUBE-COOLANT,1"

5141611

$53.24

2

TUBE-COOLANT,1"

5141612

$62.92

3

BRKT-COOLANT TUBE,BLK

5259433-329

$27.99

4

BRKT-COOLANT TUBE,ECOAT

5265342-329

$47.99

5

CLIP-COOLANT ROUTING

5453767

$5.59

6

BRACKET-COOLANT TUBE

5451221

$8.79

7

SCR-M6X1X40,TR/TX-BLK

7519001

$3.99

8

SCR-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

9

HOSE-ENG OUTLET,REAR

5414530

$71.99

10

HOSE-ENG INLET,REAR

5414976

$39.99

11

HOSE-RADIATOR,UPPER

5416028

$51.99

12

HOSE-RADIATOR,LWR,FRONT

5416030

$27.99

13

HOSE-RADIATOR,LWR,REAR

5415446

$27.99

14

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

14

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

15

CONNECTOR-TEE,1",1",1" BARBED

7052373

$10.39

16

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

16

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

17

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

17

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

18

HOSE-OUT,SURGE TANK TO TEE

5415443

$31.99

19

WELD-SURGE TANK,DUAL

1240943

$115.99

20

CAP-PRESSURE

1240300

$40.46

21

1/4"SAEJ2002,EPDM HOSE,61 CM

8450120-61

Unavailable

22

HOSE CLAMP, RED

7080003

$1.49

23

HOSE-IAC,SHORT

5813672

$5.59

24

CLAMP-HOSE,(7/16)

7080236

$1.59

25

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

26

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79
