- RZR XP TURBO S (R06) - Z19VEL92AK/BK/AR/BR/LR/AM/BM
SUSPENSION, FRONT SHOCK INTERNALS - Z19VEL92AK/BK/AR/BR/LR/AM/BM (702428)

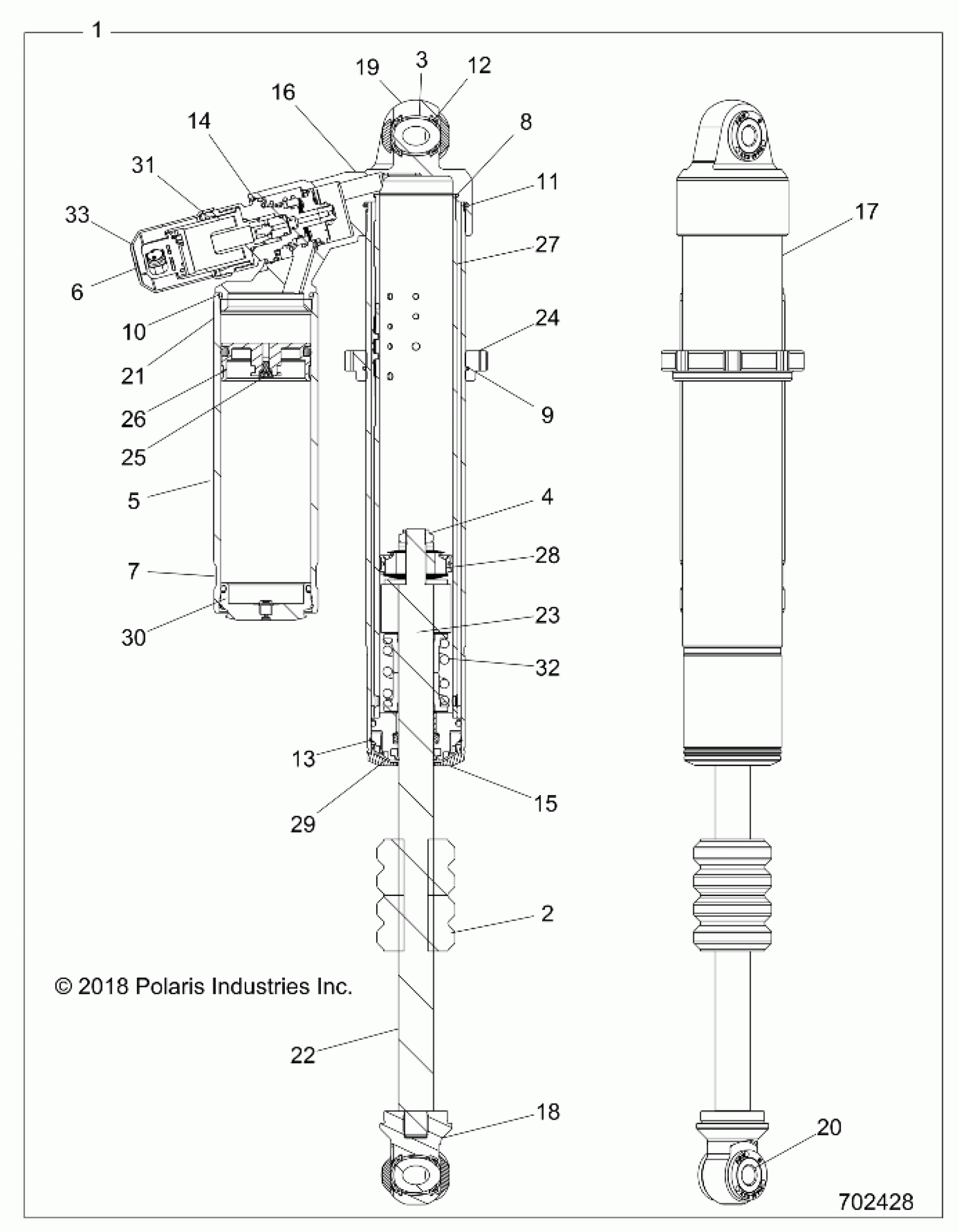

Polaris RZR XP TURBO S (R06) - Z19VEL92AK/BK/AR/BR/LR/AM/BM SUSPENSION, FRONT SHOCK INTERNALS - Z19VEL92AK/BK/AR/BR/LR/AM/BM (702428) Diagram
#
Description
Price
1
SHOCK-FRONT,PXP,IBPLV,LTD,LH [INCL ALL]
7045186
Unavailable
1
SHOCK-FRONT,PXP,IBPLV,LTD,RH [INCL ALL]
7045187
Unavailable
2
BUMPER, B/O SHAFT
1501028
$26.39
3
BUSHING, EYELET
1501010
$19.99
4
FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]
1500842
Unavailable
5
-------
-------
Unavailable
6
DECAL - IRD CVR, LIVE
1501272
$10.39
7
DECAL - BAND
1501273
$11.99
8
SEALS:O-RING [(-033) .070 C.S. X 1.989 ID] STANDARD, N-70, STATIC
1501047
$8.87
9
-------
-------
Unavailable
10
SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC
1501048
$8.87
11
SEALS:O-RING [(-143) .103 C.S. X 2.425 ID] STANDARD, N-70, STATIC
1501049
$8.87
12
SEAL - CANNED WEATHER
1501274
$12.79
13
WIRE, RETAINING RING
1500960
$3.73
14
RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS
1501052
$14.21
15
Bearing Cap: [� 2.250 Bore, .� 0.875 Shaft] No Scraper, Press-in, Clear Ano II
1501053
$31.10
16
------- [USE WITH 7045186]
-------
Unavailable
16
------- [USE WITH 7045187]
-------
Unavailable
17
-------
-------
Unavailable
18
RETAINER SPECIAL
1501327
$43.99
19
-------
-------
Unavailable
20
SPACER - NYLON
1501283
$8.79
21
RESERVOIR
1501093
$95.99
22
-------
-------
Unavailable
23
-------
-------
Unavailable
24
-------
-------
Unavailable
25
SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE
1500161
Unavailable
26
PISTON ASSEMBLY: FLOATING [�2.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND
1501060
$79.99
27
-------
-------
Unavailable
28
-------
-------
Unavailable
29
ASM., SEAL HEAD
1501095
$124.99
30
RESERVOIR END CAP ASSEMBLY: [� 2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM, BLAC
1501063
$124.99
31
-------
-------
Unavailable
32
GUIDE, NEGATIVE SPRING
1501179
$101.65
33
COVER - LIVE VALVE
1501290
$27.99
