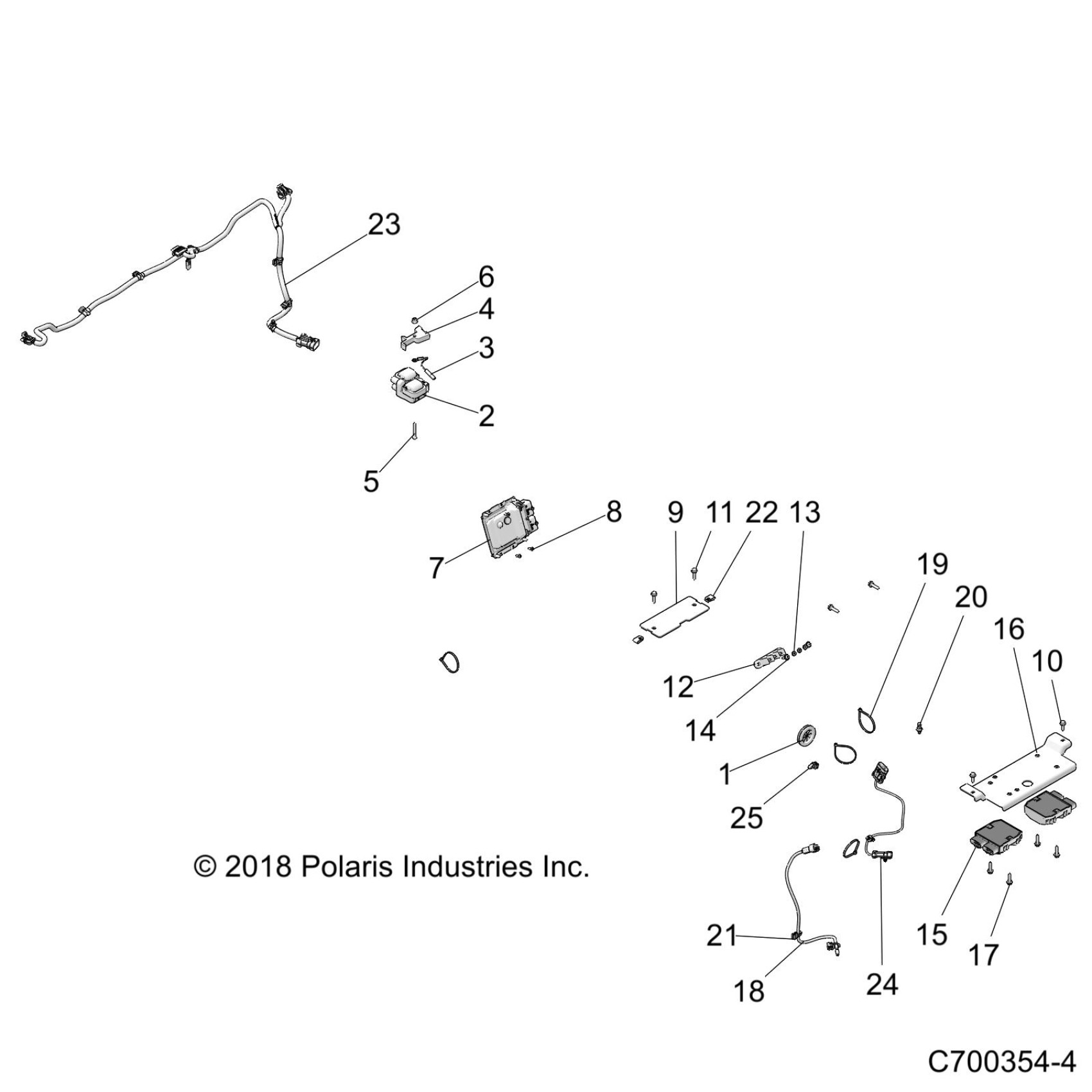

Polaris RZR XP TURBO S (R06) - Z19VEL92AK/BK/AR/BR/LR/AM/BM ELECTRICAL, ECU, REGULATOR, ETC. - Z19VEL92AK/BK/AR/BR/LR/AM/BM (C700354-4) Diagram

GROMMET-ELECTRICAL,CAB [TO 10/15/18]

5414440

$7.19

GROMMET-ELEC,CAB,SLIT [FROM 10/15/18]

5415049

$3.99

COIL-EFI

4010425

Unavailable

JUMPER,COIL GROUND

4014422

$27.99

SPACER-COIL MOUNT

5436577

$3.99

SCR-M6X1.0X40,HX/SOC/CP-B

7518780

$3.99

NUT-M6 FLANGE,NYLOC

7547274

$1.49

ECM-NO START,ME17

4014125

$694.99

ECM-NO START,ME17,WB CJ125 [EVAP]

4015694

$329.59

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

7519091

$3.19

PANEL-CLOSEOFF,FUSE CTR LOC

5454317

$8.79

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-HXFL-M6X1.0X25 8.8 RIE

7518576

$3.19

BLOCK-TERMINAL,3 POST,TALL

4015778

$27.99

NUTS-KEPS,10-32

7547341

$1.49

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.49

REGULATOR-3PH,35A,SERIES,105C

4012941

$227.99

BRKT-MOUNT,REGULATOR,DUAL,BLK

5267079-329

$43.99

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

HARNESS-TEMP SENSOR

2413743

$69.99

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CLIP-EDGE,HARNESS

7081890

$10.39

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.49

HARNESS-BOX,RZR,72,CAMERA

2414085

$95.99

HARNESS-ADAPTER,FRNT,DRIVE

2414995

$39.99

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19
