Partiron

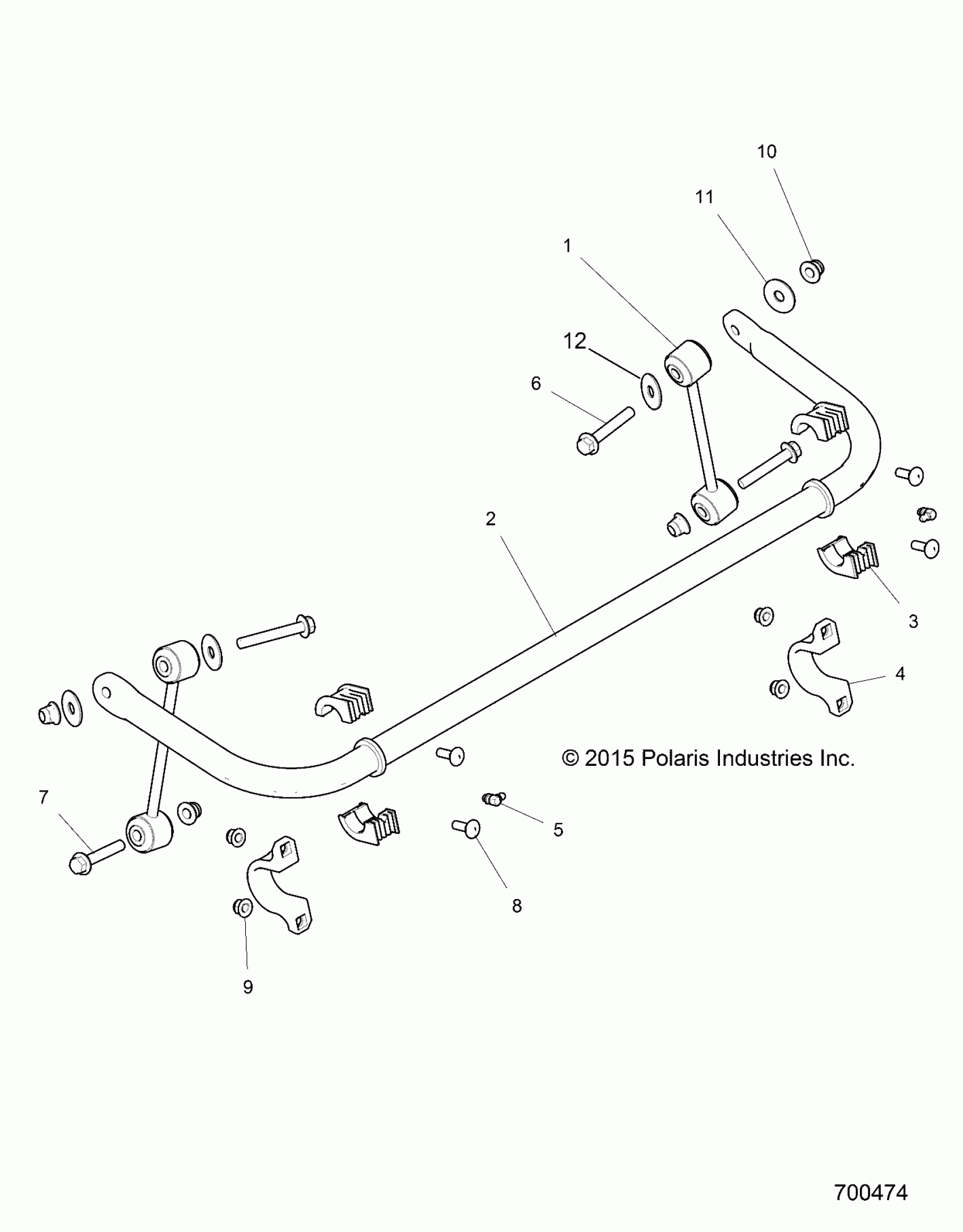

Polaris RZR XP TURBO (R15) - Z16VDE92AE/AH/AV/AS/AW/N8 SUSPENSION, STABILIZER BAR, REAR - Z16VDE92AE/AH/AV/AS/AW/N8 (700474) Diagram

#

Description
Price

1

ASM., LINKAGE, STABILIZER BAR

1543205

$67.99

2

BAR, STABILIZER, 27MM

5338883

$179.99

3

BUSHING, REAR BAR, 27MM

5451568

$3.99

4

BRACKET, CAP, SWAY BAR

5632497

$39.99

5

FITTING, ZERK

7080510

$5.59

6

BOLT

7518561

$7.19

7

BOLT

7518563

$3.19

8

SCREW, CARRIAGE

7520298

$6.39

9

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

11

WASHER, FLAT

7555852

$2.39

12

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99
