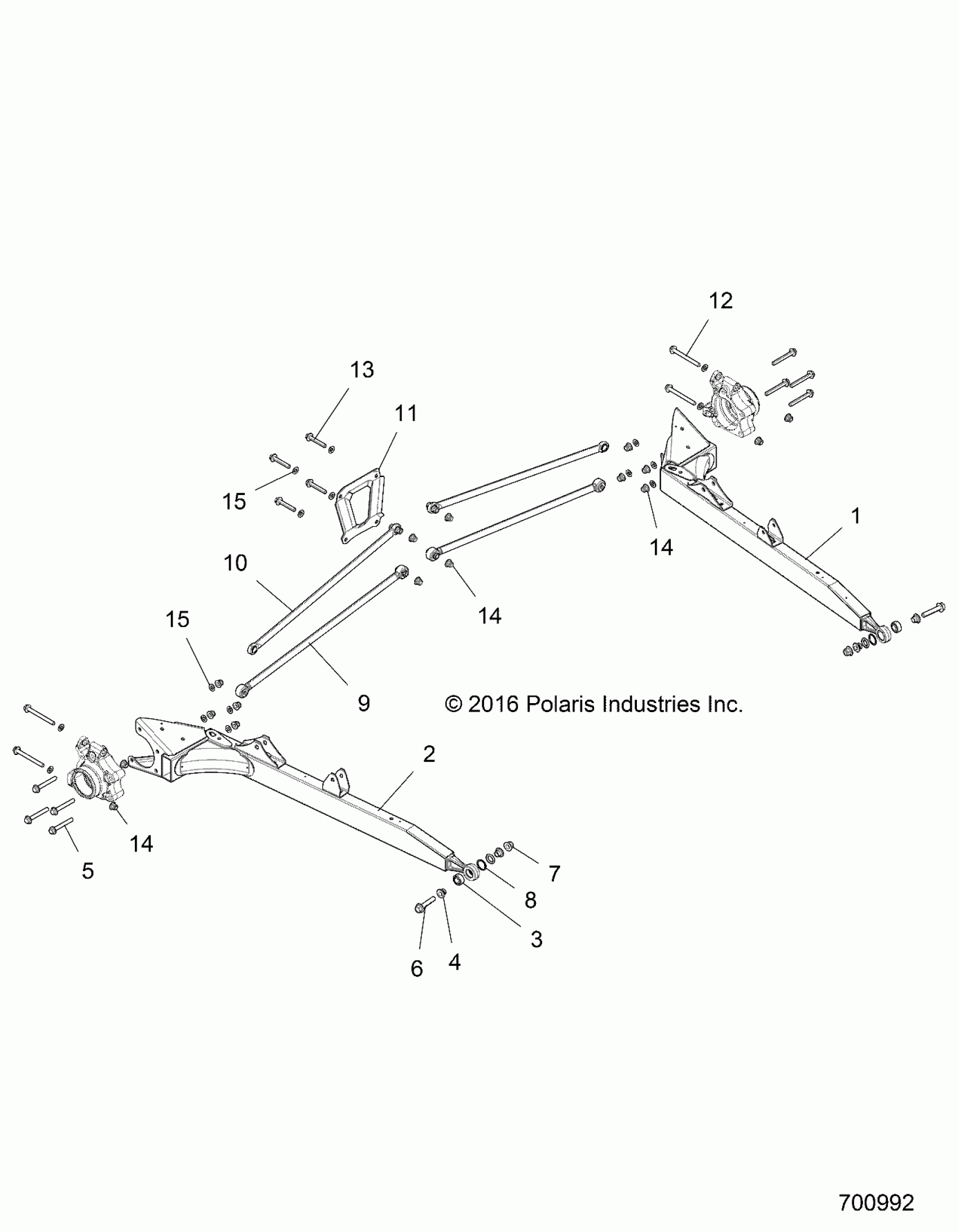

Polaris RZR XP TURBO (R15) - Z16VDE92AE/AH/AV/AS/AW/N8 SUSPENSION, REAR CONTROL ARMS - Z16VDE92AE/AH/AV/AS/AW/N8 (700992) Diagram

WELD-TRL ARM,LH, WHITE [AH]

1019356-133

Unavailable

WELD-TRL ARM,LH, COSMIC SUNBURST [AE]

1019356-446

Unavailable

WELD-TRL ARM,LH, VELOCITY BLUE [AV][N8][AW]

1019356-689

$284.99

WELD-TRL ARM,LH, BLK [AS]

1019356-458

$464.75

WELD-TRL ARM,RH, WHITE [AH]

1019357-133

Unavailable

WELD-TRL ARM,RH, COSMIC SUNBURST [AE]

1019357-446

$274.99

WELD-TRL ARM,RH, VELOCITY BLUE [AV][N8][AW]

1019357-689

$284.99

WELD-TRL ARM,RH, BLK [AS]

1019357-458

$464.75

BEARING, SPHERICAL

3514689

$39.68

BUSHING, REDUCER

5336751

$6.35

SCREW

7519286

$7.14

SCREW

7519138

$9.52

NUT, FLANGE, NYLOK

7547334

$4.76

RING, RETAINER

7710437

$3.17

ASM., RADIUS ROD, BOTTOM, WHITE [AH]

1543204-133

$182.13

ASM., RADIUS ROD, BOTTOM, COSMIC SUNBURST [AE]

1543204-446

$182.13

ASM., RADIUS ROD, BOTTOM, VELOCITY BLUE [AV][N8][AW]

1543204-689

$182.13

ASM., RADIUS ROD, BOTTOM, BLK [AS]

1543204-458

Unavailable

ASM-RADIUS ROD, WHITE [AH]

1543377-133

$129.51

ASM-RADIUS ROD, COSMIC SUNBURST [AE]

1543377-446

Unavailable

ASM-RADIUS ROD, VELOCITY BLUE [AV][N8][AW]

1543377-689

Unavailable

ASM-RADIUS ROD, BLK [AS]

1543377-458

Unavailable

PLATE-REAR,BOLT BRACE, WHITE [AH]

5259640-133

$64.99

PLATE-REAR,BOLT BRACE, COSMIC SUNBURST [AE]

5259640-446

$89.99

PLATE-REAR,BOLT BRACE, VELOCITY BLUE [AV][N8][AW]

5259640-689

Unavailable

PLATE-REAR,BOLT BRACE, BLK [AS]

5259640-458

$89.99

SCREW

7519284

$3.97

SCREW

7519306

$5.56

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER

7556153

$1.98

WASHER

7556153

$1.98
