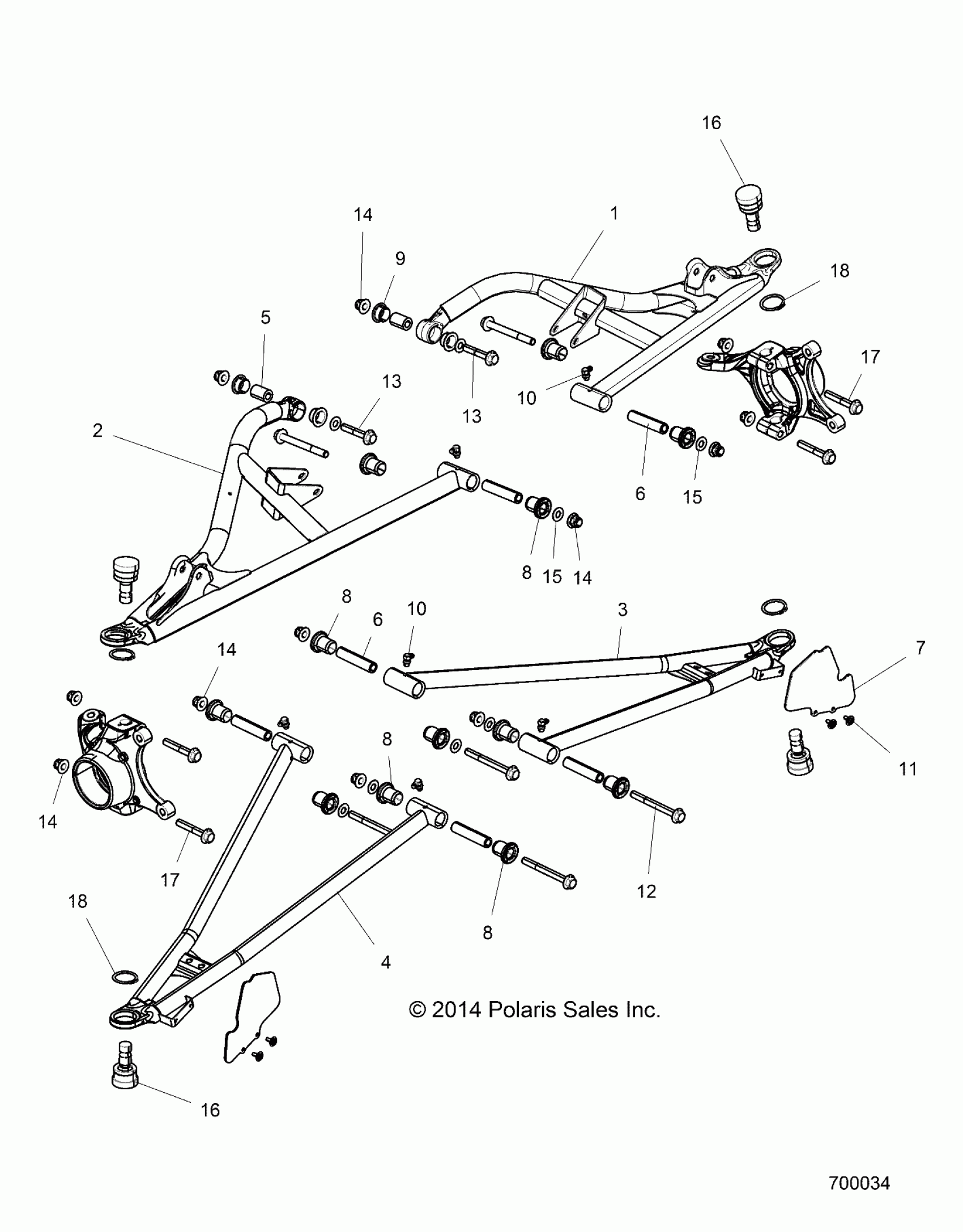

Polaris RZR XP TURBO (R15) - Z16VDE92AE/AH/AV/AS/AW/N8 SUSPENSION, FRONT CONTROL ARMS - Z16VDE92AE/AH/AV/AS/AW/N8 (700034) Diagram

#

Description
Price

1

ARM, CONTROL, UPPER, FRONT, LH, WHITE [AH]

1021940-133

Unavailable

1

ARM, CONTROL, UPPER, FRONT, LH, COSMIC SUNBURST [AE]

1021940-446

Unavailable

1

ARM, CONTROL, UPPER, FRONT, LH, VELOCITY BLUE [AV][N8][AW]

1021940-689

$299.99

1

ARM, CONTROL, UPPER, FRONT, LH, 64,BLK [AS]

1021940-458

Unavailable

2

ARM, CONTROL, UPPER, FRONT, RH, 64,BLK [AS]

1021941-458

Unavailable

2

ARM, CONTROL, UPPER, FRONT, RH, WHITE [AH]

1021941-133

$299.99

2

ARM, CONTROL, UPPER, FRONT, RH, COSMIC SUNBURST [AE]

1021941-446

Unavailable

2

ARM, CONTROL, UPPER, FRONT, RH, VELOCITY BLUE [AV][N8][AW]

1021941-689

$299.99

3

ARM, CONTROL, HC, LOWER, FRONT, LH, WHITE [AH]

1018826-133

$159.99

3

ARM, CONTROL, HC, LOWER, FRONT, LH, COSMIC SUNBURST [AE]

1018826-446

Unavailable

3

ARM, CONTROL, HC, LOWER, FRONT, LH, VELOCITY BLUE [AV][N8][AW]

1018826-689

$183.99

3

ARM, CONTROL, HC, LOWER, FRONT, LH, 64,BLK [AS]

1018826-458

Unavailable

4

ARM, CONTROL, HC, LOWER, FRONT, RH, WHITE [AH]

1018827-133

$159.99

4

ARM, CONTROL, HC, LOWER, FRONT, RH, 64,BLK [AS]

1018827-458

Unavailable

4

ARM, CONTROL, HC, LOWER, FRONT, RH, COSMIC SUNBURST [AE]

1018827-446

Unavailable

4

ARM, CONTROL, HC, LOWER, FRONT, RH, VELOCITY BLUE [AV][N8][AW]

1018827-689

$183.99

5

TUBE, PIVOT

5138276

$23.99

6

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$8.79

6

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$8.79

7

SHIELD, CV, FRONT, BLACK

5438641-070

$3.19

8

BUSHING-STANDARD,ORV

5439874

$2.39

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

8

BUSHING-STANDARD,ORV

5439874

$2.39

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

8

BUSHING-STANDARD,ORV

5439874

$2.39

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

8

BUSHING-STANDARD,ORV

5439874

$2.39

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

9

BUSHING, CONTROL ARM

5450095

$2.39

10

FITTING, ZERK

7080510

$5.59

10

FITTING, ZERK

7080510

$5.59

11

Screw

7512084

$1.49

12

SCREW

7519043

$9.59

13

SCREW

7519285

$2.39

13

SCREW

7519285

$2.39

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

15

WASHER

7556153

$1.99

15

WASHER

7556153

$1.99

16

BALL, JOINT, HARDENED

7081992

$48.56

16

BALL, JOINT, HARDENED

7081992

$48.56

17

SCREW

7519306

$5.59

17

SCREW

7519306

$5.59

18

RING, RETAINING

7710716

$7.19

18

RING, RETAINING

7710716

$7.19
