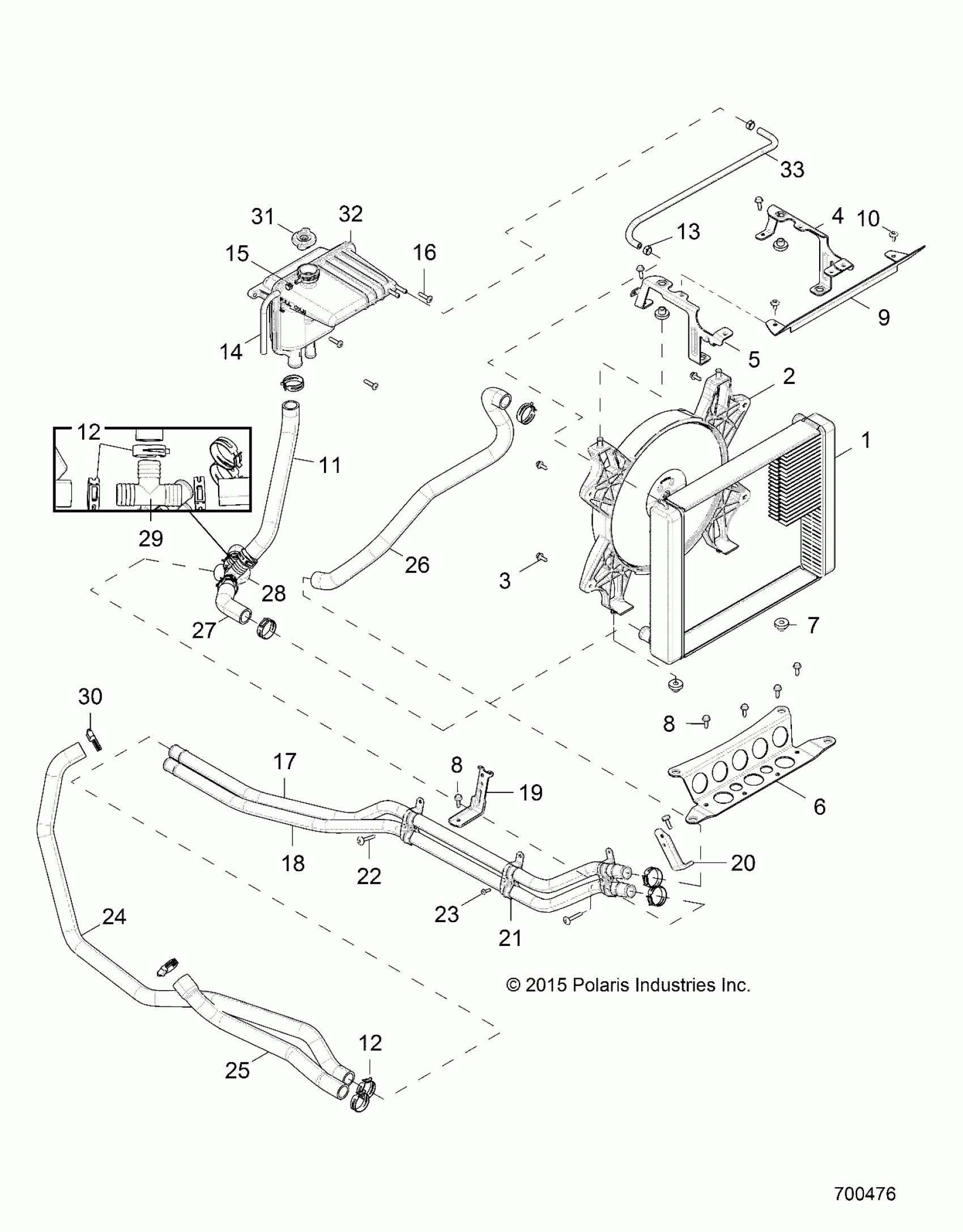

Polaris RZR XP TURBO (R15) - Z16VDE92AE/AH/AV/AS/AW/N8 ENGINE, COOLING SYSTEM - Z16VDE92AE/AH/AV/AS/AW/N8 (700476) Diagram

#

Description
Price

1

ASM-CORE,RADIATOR

1240935

$598.49

2

ASM-FAN

2413044

$394.24

3

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.79

4

BRKT-MOUNT,RADIATOR,LH,BLK

5261652-329

$36.41

5

BRKT-MOUNT,RADIATOR,RH,BLK

5261653-329

$36.41

6

BRKT-MOUNT,RADIATOR,BLK

5260767-329

$44.99

7

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.35

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

9

SHROUD-RADIATOR,UPPER

5452630

$20.22

10

SCR-M6X1X16 TR/TX-M

7518936

$3.97

11

HOSE-OUT,SURGE TANK TO TEE

5415443

$36.41

12

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.32

12

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.32

13

HOSE CLAMP, RED

7080003

$1.19

14

HOSE-IAC,SHORT

5813672

$6.46

15

CLAMP-HOSE,(7/16)

7080236

$1.59

16

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.76

17

TUBE-COOLANT,1"

5139908

$58.08

18

TUBE-COOLANT,1"

5139909

$53.24

19

BRKT-COOLANT TUBE,BLK

5259433-329

$34.99

20

BRKT-COOLANT TUBE,BLK

5260766-329

$34.99

21

BRACKET-COOLANT TUBE

5451221

$8.89

22

SCR-M6X1X40,TR/TX-BLK

7519001

$3.97

23

SCR-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.19

24

HOSE-ENG OUTLET,REAR

5414530

$76.89

25

HOSE-ENG INLET,REAR

5414976

$44.51

26

HOSE-RADIATOR,UPPER

5415634

$56.65

27

HOSE-RADIATOR,LWR,FRONT

5415444

$32.37

28

HOSE-RADIATOR,LWR,REAR

5415446

$32.37

29

CONNECTOR-TEE,1",1",1" BARBED

7052373

$10.32

30

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

31

CAP-PRESSURE

1240300

$40.46

32

WELD-SURGE TANK,DUAL

1240943

$147.24

33

1/4"SAEJ2002,EPDM HOSE,51CM

8450120-51

$5.65
