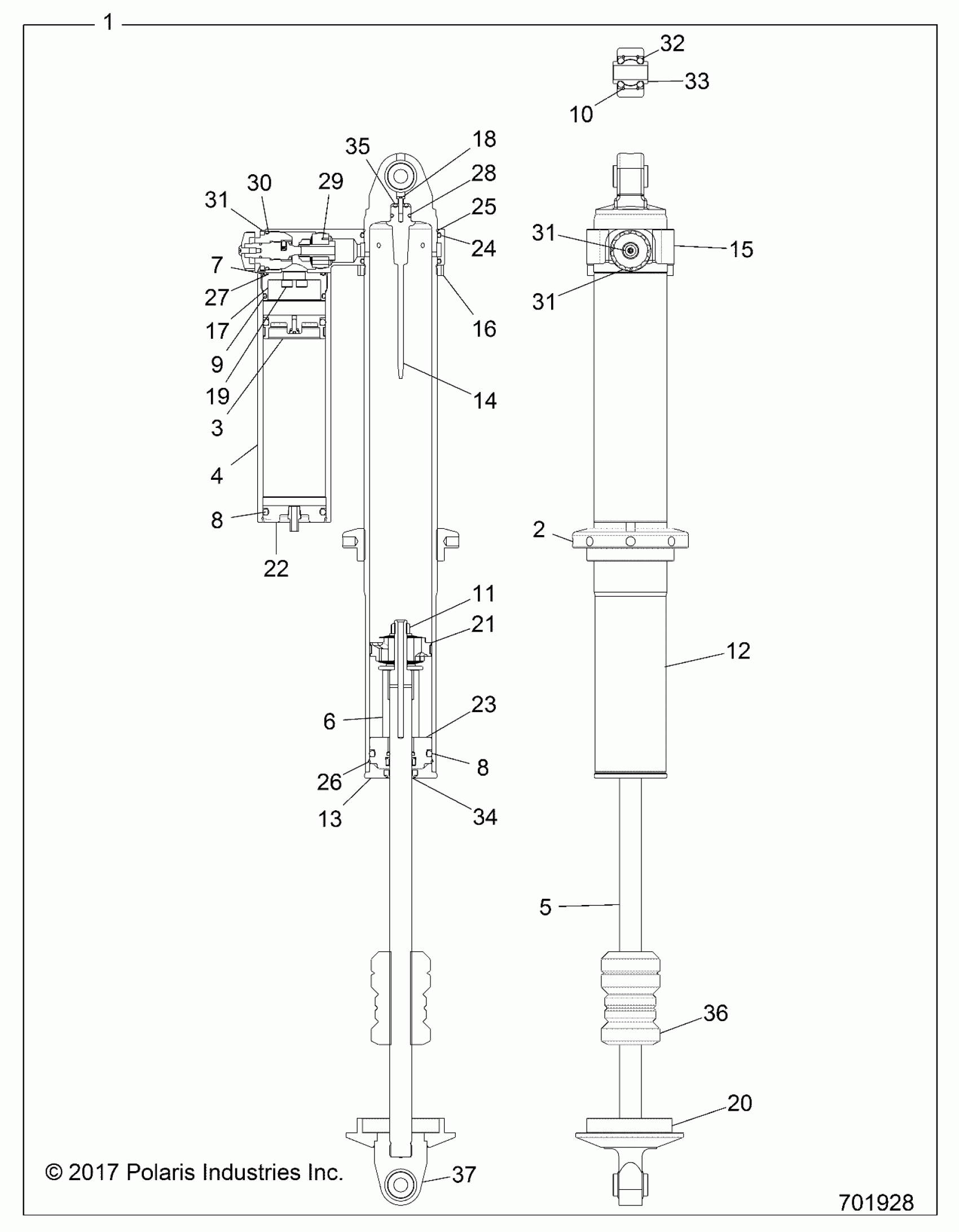

Polaris RZR XP TURBO (R12) - Z19VDE92AC/BC/AD/BD/AM/BM/LM/L92AG/BG SUSPENSION, REAR SHOCK - Z19VDE92AC/BC/AD/BD/AM/BM/LM (701928) Diagram

#

Description
Price

1

SHOCK-REAR [INCL ALL]

7044853

$794.19

2

2.5IN SPRING NUT (CLEAR)

1800836

$96.79

3

RES, PISTON 2.5IN ASM

1800752

$164.59

4

2.5IN 8.5L PB RES CAN WR (HARD CLEAR)

1800837

$159.99

5

3/4in SS CHROME NEEDLE SHAFT 18.295L

1800620

$223.99

6

SPACER 2.287L

1800610

$55.99

7

O-RING 2-033

1800613

$10.39

8

O-RING 2-327

1800508

$5.59

8

O-RING 2-327

1800508

$5.59

9

O-RING 2-225

1800500

$1.99

10

RING- RETAIN (SNAP)

1800482

$10.39

11

7/16 Ny Lock nut

1800638

$4.79

12

BODY, MONOTUBE 2.5 REAR W NEEDLE HARD CLEAR 21.070L

1800838

$288.41

13

WIPER CAP 2.5 X 0.75 PRESS FIT

1800839

$47.99

14

NEEDLE, 1PC PRESS IN

1800840

$51.99

15

BRIDGE, 2.5 WER ADJUSTER (CLEAR)

1800841

$268.39

16

2.5IN CROSSOVER RING/ JAM NUT

1800842

$39.59

17

2.5 RES MOUNT

1800488

$83.99

18

#8-32 X 0.5 LOW HEAD SCREW

1800843

$4.79

19

SCREW, SHCS 43834 X .5"

1800754

$3.19

20

SPRING CLIP

1501007

$79.99

21

PISTON,ASM NO BLEED (W/OUT VALVING)

1800659

$111.99

22

ASM. END CAP, 2.5 SCHRAEDER

1800844

$119.99

23

ASM,2.5 SEAL HEAD 0.75 SHAFT PRESS IN

1800845

$107.99

24

O-RING 2-230

1800497

$5.59

25

2.48 X 0.0625 WIRE RING

1800846

$7.19

26

Retaining Ring 2.5

1800847

$23.99

27

O-RING, 2-134

1800502

$1.99

28

O-RING 2-112

1800095

$1.49

29

VALVE, CHECK ASM

1800848

$61.59

30

O-RING 2-122

1800503

$1.59

31

ASM. SS RETENTION NUT (GOLD)

-------

Unavailable

31

ASM. SS RETENTION NUT (GOLD)

-------

Unavailable

31

ASM. SS RETENTION NUT (GOLD)

-------

Unavailable

32

O-RING 2-312

1800810

$3.63

33

BEARING HCOM9T-12MM

1800880

$47.99

34

WIPER 2.5IN SH .75SHAFT

1800506

$39.99

35

O-RING -202

-------

Unavailable

36

BUMP STOP 3.125L

-------

Unavailable

37

9/16 HEIM SHAFTLOOP (Clear)

1800555

$223.99
