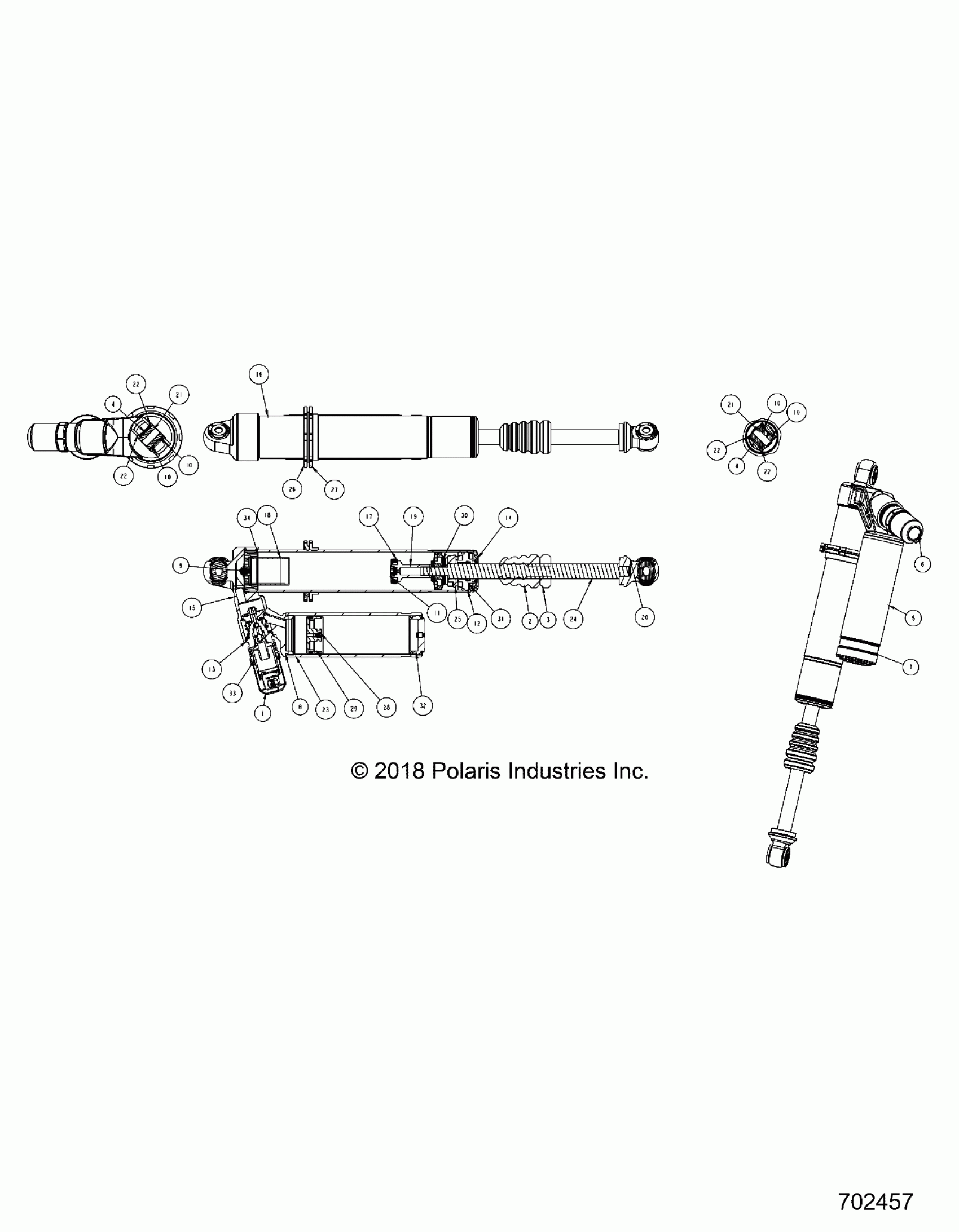

Polaris RZR XP TURBO (R12) - Z19VDE92AC/BC/AD/BD/AM/BM/LM/L92AG/BG SUSPENSION, FRONT SHOCK - Z19VDL92AG/BG (702457) Diagram

#

Description
Price

-

SHOCK-FRONT,FOXLIVE,LH [NCL. ALL]

7045044

Unavailable

-

SHOCK-FRONT,FOXLIVE,RH [NCL. ALL]

7045045

Unavailable

1

COVER - LIVE VALVE

1501290

$32.37

2

BUMPER: B/O [� 0.620 SHAFT, 2.350 TLG] MCU

1500844

$33.24

3

BUMPER: B/O [� 0.620 SHAFT, .700 TLG] MCU, BLACK

1500866

$32.37

4

BUSHING, EYELET

1501010

$19.84

4

BUSHING, EYELET

1501010

$19.84

5

DECAL

----

Unavailable

6

DECAL - IRD CVR, LIVE

1501272

$11.32

7

DECAL - BAND

1501273

$12.94

8

SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC

1501048

$8.87

9

SEALS:O-RING [(-143) .103 C.S. X 2.425 ID] STANDARD, N-70, STATIC

1501049

$8.87

10

SEAL - CANNED WEATHER

1501274

$12.94

10

SEAL - CANNED WEATHER

1501274

$12.94

10

SEAL - CANNED WEATHER

1501274

$12.94

10

SEAL - CANNED WEATHER

1501274

$12.94

11

RING - RETAINING

1501275

$20.22

12

WIRE, RETAINING RING

1500960

$1.99

13

RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS

1501052

$14.21

14

Bearing Cap: [� 2.250 Bore, .� 0.875 Shaft] No Scraper, Press-in, Clear Ano II

1501053

$31.10

15

BODY CAP - HIFLOW 135'

1501277

$199.99

16

BODY - 2.25 X 134

1501278

$165.86

17

POSITION SENSITIVE DAMPINING

1501326

$48.40

18

TUBE - B.O. CUP

1501280

$82.29

19

POST - P.S. DAMP.

1501281

$51.59

20

RETAINER SPECIAL

1501327

$49.99

21

EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

1501087

$23.81

21

EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

1501087

$23.81

22

SPACER - NYLON

1501283

$8.89

22

SPACER - NYLON

1501283

$8.89

22

SPACER - NYLON

1501283

$8.89

22

SPACER - NYLON

1501283

$8.89

23

RESERVOIR

1501093

$124.99

24

SHAFT - .875 X 12.1TLG

1501284

$54.99

25

----

Unavailable

26

RING - PRELOAD B/U

1501285

$24.27

27

RING - PRELOAD

1501286

$24.27

28

SCREW - BLACK, RES.

1501303

$29.99

29

PISTON ASSEMBLY: FLOATING [�2.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND

1501060

$79.99

30

VALVE ASM [USED WITH 7045044]

----

Unavailable

30

VALVE ASM [USED WITH 7045045]

----

Unavailable

31

ASM - BRNG, DUAL SEAL

1501304

$119.99

32

RESERVOIR END CAP ASSEMBLY: [� 2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM, BLAC

1501063

$124.99

33

ADJUSTER - DSC HIFLO

1501288

$534.99

34

CUP BASE

1501289

$69.99
