- RZR XP TURBO (R12) - Z19VDE92AC/BC/AD/BD/AM/BM/LM/L92AG/BG
ELECTRICAL, WIRE HARNESS - Z19VDL92BG (C700390)

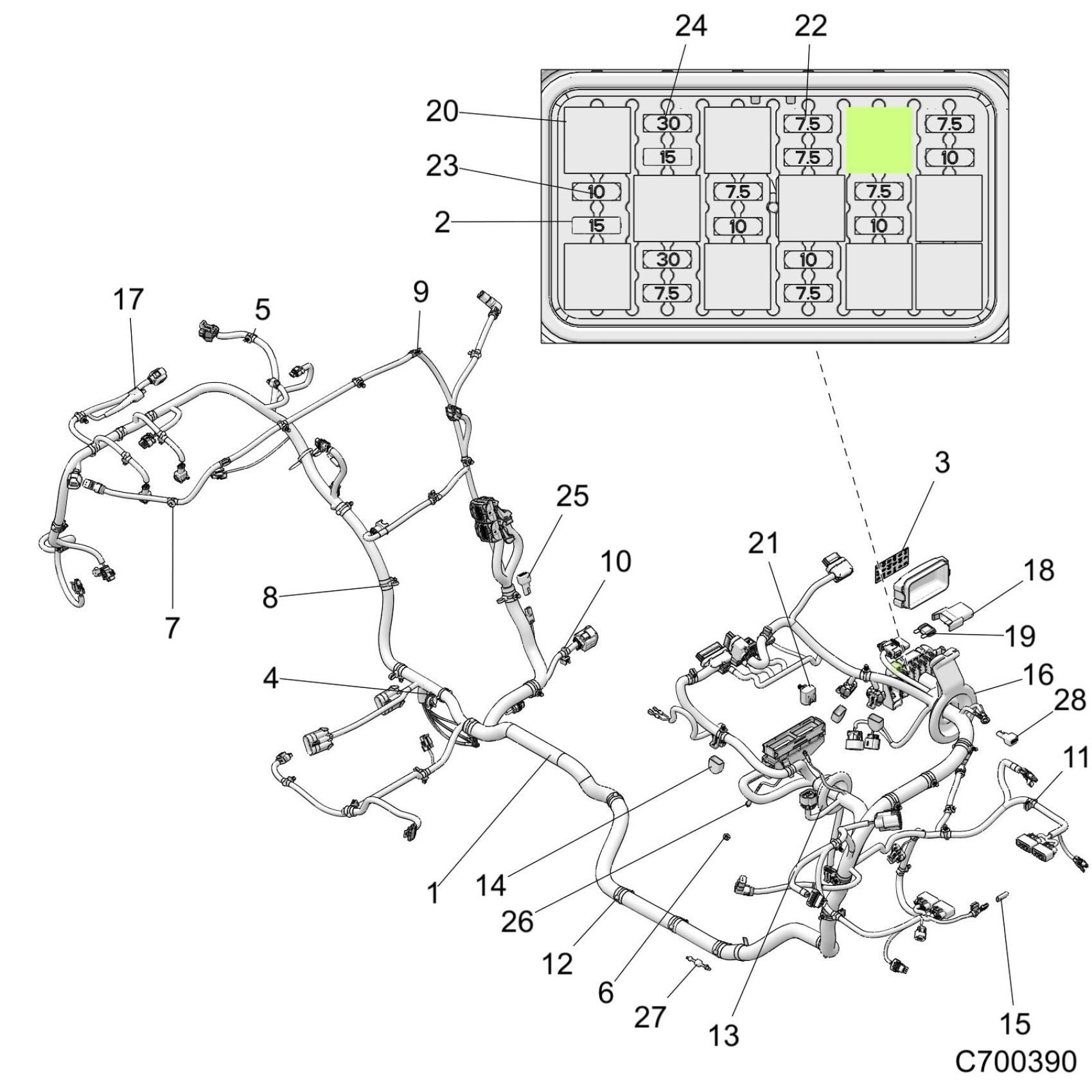

Polaris RZR XP TURBO (R12) - Z19VDE92AC/BC/AD/BD/AM/BM/LM/L92AG/BG ELECTRICAL, WIRE HARNESS - Z19VDL92BG (C700390) Diagram
#
Description
Price
1
HARNESS-CHASSIS,RZR,64,LV [INCL ALL]
2414528
$1,887.59
2
FUSE-MINI BLADE,15 AMP
-------
Unavailable
3
LABEL-FUSE BOX
7189185
Unavailable
4
CLIP-OMEGA,CABLE/15-18MM DIA
7082481
$6.39
5
CLIP-ROUTING
7082068
$7.19
6
CLIP-ROUTING,DIN BOX
7082020
$5.59
7
CABLE-TIE,DIA2.5-34MM,FIR-TREE
7082003
$3.19
8
CABLE-TIE,DIA6-38MM,DUAL-LOOP
7081916
$4.79
9
CLIP-EDGE,HARNESS
7081890
$10.39
10
CLIP-EDGE,DIA5-50MM,OUT-SER
7081824
$12.79
11
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
$5.59
12
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
13
GROMMET-65MM,BLK
5813954
$7.19
14
CAP-VINYL,500X1000,BLACK
5438233
$6.68
15
CAP-VINYL,125X375,BLACK
5438230
$5.59
16
GROMMET-DASH FUSE CTR,RZR
5416469
$10.39
17
BOOT-TMAP
4018263
$7.99
18
HOLDER-FUSE,SEALED
4018207
$67.99
19
FUSE-MAXI,50A
4017180
$39.99
20
RELAY-SPST,12V,20A,EPXY,HFA
4016819
$32.37
21
COVER-DIAGNOSTIC,W/CLIP
4012170
$8.08
22
FUSE-7.5 MINI BLADE
4011068
Unavailable
23
FUSE-IGNITION,10 AMP
2434016
$4.79
24
FUSE-MAIN,30 AMP
2434015
$7.19
25
RESISTOR-EVAP PULLUP-1KOHM
2414716
$8.79
26
LED-PANEL MNT,12V,BLUE
2413217
$51.99
27
DIODE-6AMP,1/4,3/16 TERM
2411035
$51.99
28
DIODE-6 AMP
2410000
$35.99
