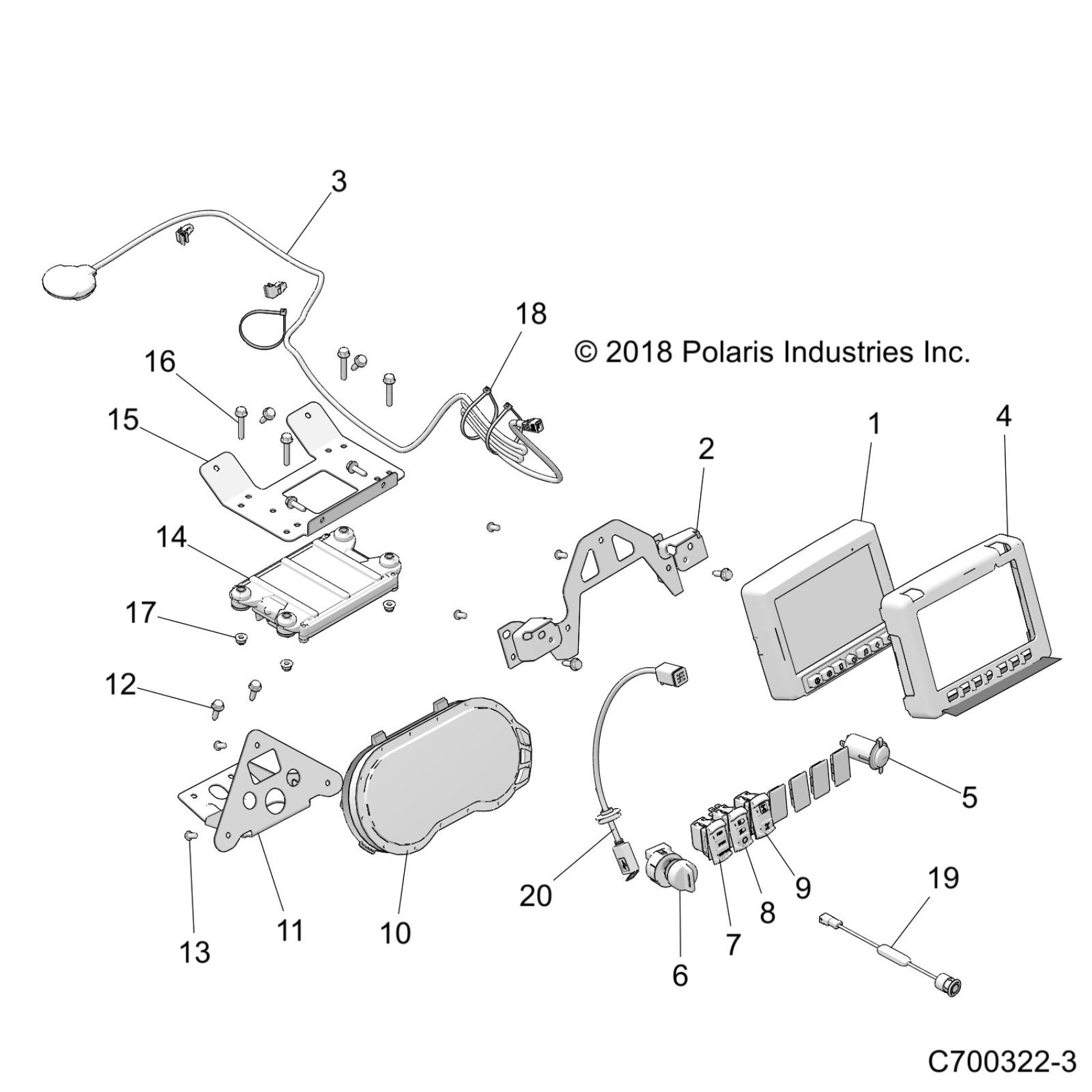

Polaris RZR XP TURBO (R12) - Z19VDE92AC/BC/AD/BD/AM/BM/LM/L92AG/BG ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z19VDL92AG/BG (C700322-3) Diagram

#

Description
Price

1

ASM-DISPLAY,DIG,P7,PRG

3280741

Unavailable

2

BRKT-RZR 7" DISPLAY,BLK

5266577-329

$51.99

3

ANTENNA,GPS,EXT

4017533

$83.59

4

BEZEL-GAUGE,7",ORV,7 BTN,BLK

5455574-070

$14.39

5

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

6

SWITCH-KEY,4 POSITION,MT SLV

4016058

Unavailable

7

SWITCH-MODE,LV

4016853

$83.99

8

SWITCH-HEADLIGHT,LASER

4017133

$75.99

9

SWITCH-AWD,LASER

4017134

$55.99

10

ASM-C4,RZR,RGR,GNRL,256K

3280786

Unavailable

11

BRKT-C4 GAUGE MOUNT,ECOAT

5264913-329

$61.59

12

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

13

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

14

SCM-PROGRAMMED,LV

4018104

Unavailable

15

BRKT-SCM,AMP,ECOAT

5266963-329

$35.99

16

SCR-M6X1.0X35,HX/FL-Y/D

7516827

$6.39

17

NUT-HXFL-M6X1.0 8 ZC NYL

7547487

$2.39

18

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

19

CAM-MIRROR,CAMERA,APX

4015873

Unavailable

20

HARNESS,USB,RC

2414710

Unavailable
