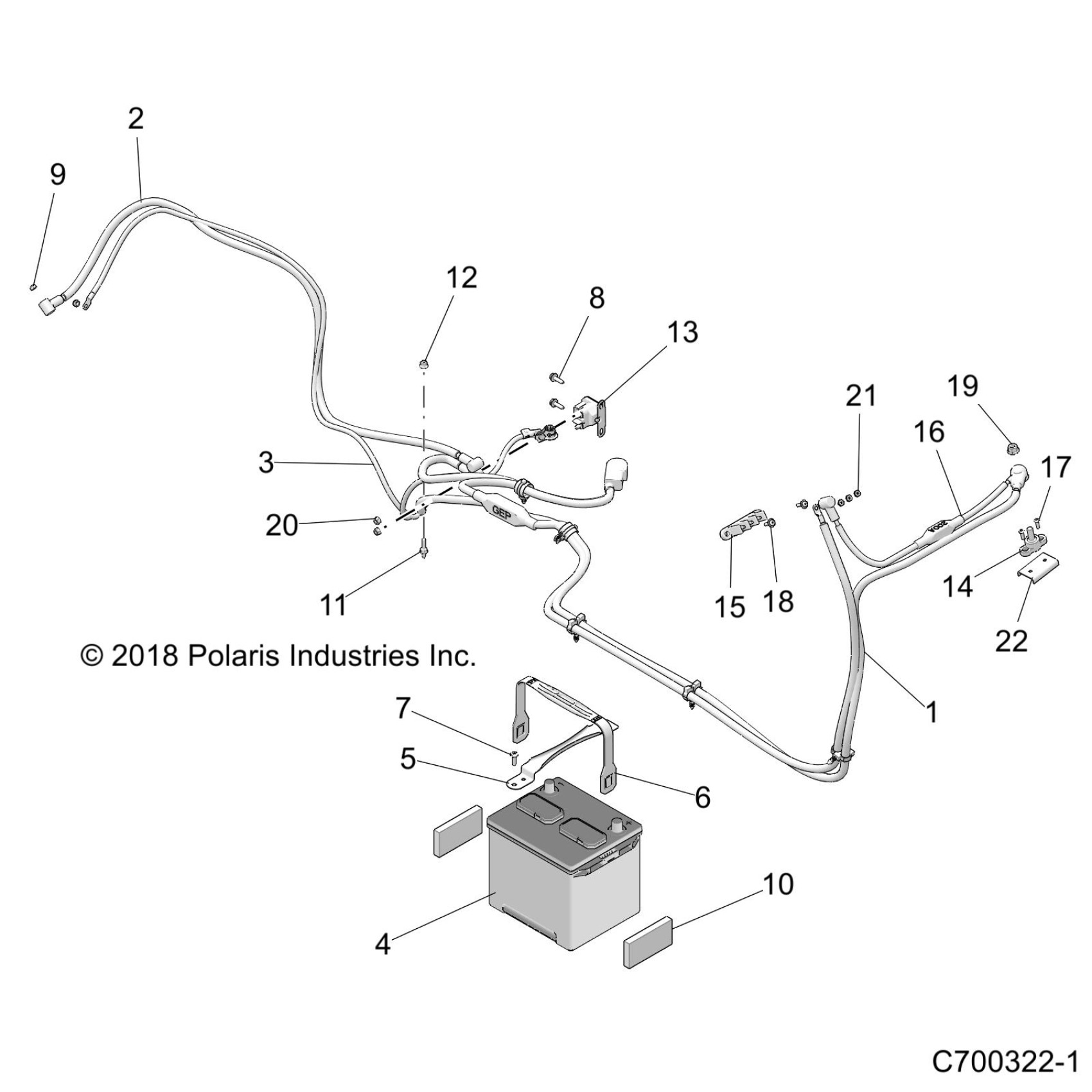

Polaris RZR XP TURBO (R12) - Z19VDE92AC/BC/AD/BD/AM/BM/LM/L92AG/BG ELECTRICAL, BATTERY - Z19VDE92AC/BC/AD/BD/AM/BM/LM/LAG/BG (C700322-1) Diagram

#

Description
Price

1

CABLE-SET,PRI PWR,FUSED

4017146

$189.99

2

CABLE-START TO SOLENOID

4015426

$36.41

3

CABLE-GROUND,ENG,BAT,CHAS

4015424

$53.24

4

BATTERY-575 CCA,FLOODED,FILLED

4014132

$166.65

4

BATTERY-HD,AGM,SEALED,R2 [HD OPTION]

4081855

$190.48

5

STRAP, BATTERY, MAIN, BLACK

5257312-329

$24.99

6

STRAP, BATTERY, LIFT

5450916

$5.65

7

SCREW

7519731

$3.97

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

9

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

10

PAD, BATTERY, FOAM

5814037

$7.27

11

STUD

7519333

$7.94

12

NUT-M6 FLANGE,NYLOC

7547274

$1.19

13

SOLENOID-STARTER,SEALED

4014655

$54.99

14

BLOCK-JUNCTION

4011615

$27.78

15

BLOCK-TERMINAL,3 POST,TALL

4015778

$32.37

16

CABLE-JUMPER,ACCY,FUSED

4017147

$67.76

17

SCR-#10-24X5/8PN/TR-RDTORX-Y

7517756

$1.19

18

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.19

19

NUT-FLANGED,3/8-16 NYLON

7547180

$2.38

20

NUT-HXFLGHD,M6,SERRATED

7547270

$3.97

21

NUTS-KEPS,10-32

7547341

$0.79

22

BRKT-MTG,B+ POST,BLK

5264769-329

$12.13
