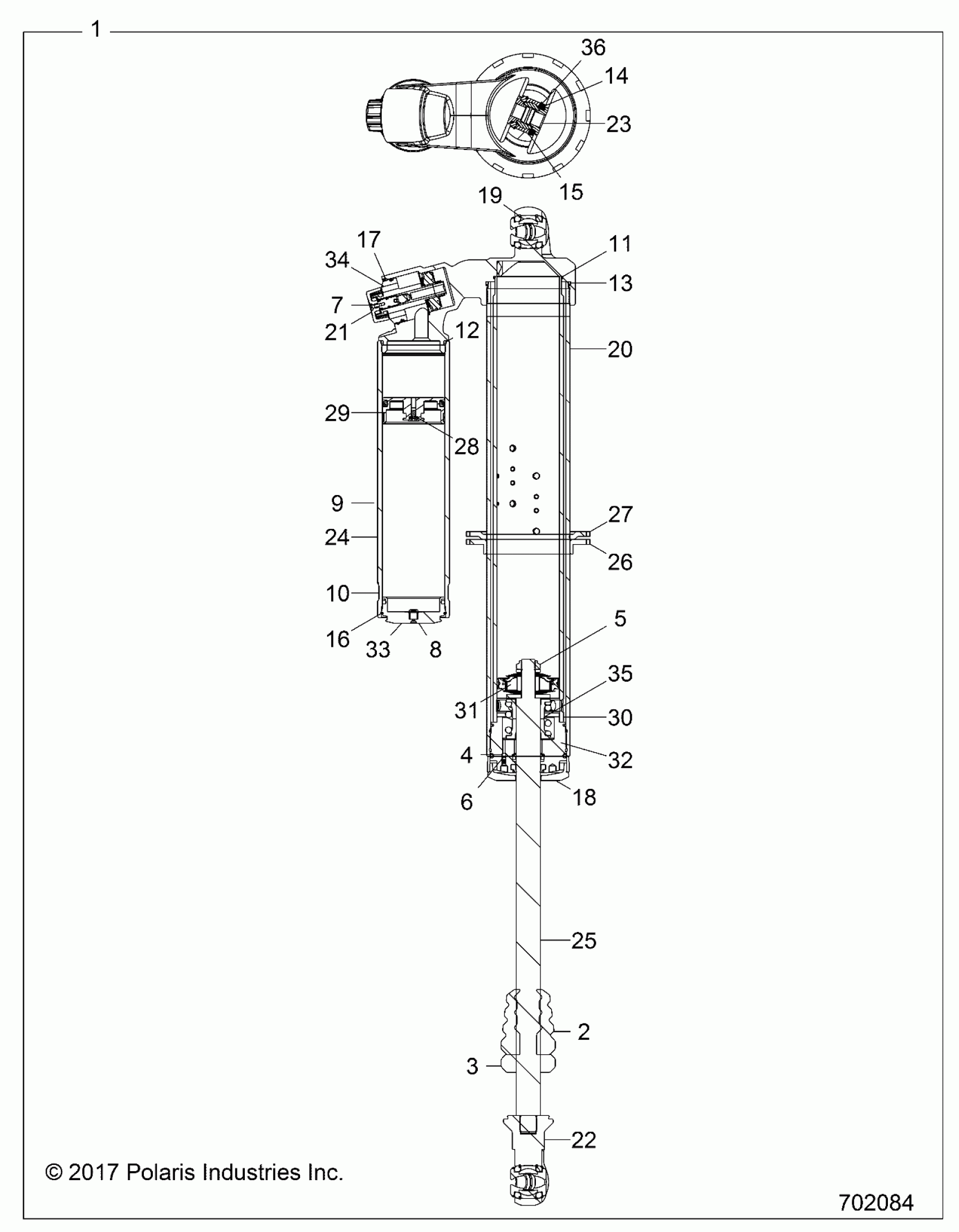

Polaris RZR XP TURBO (R11) - Z18VDE92BB/BM/BS/BU/L92BK SUSPENSION, REAR SHOCK - Z18VDE92BS (702084) Diagram

#

Description
Price

1

PLATE: TOP-OUT [1.570 OD X 0.503 ID X 0.128 TH, � 0.620 SHAFT]

1500470

$11.19

1

PLATE: BACK-UP [0.875 OD X 0.503 ID X 0.100 TH]

1500841

$10.39

1

SHOCK-REAR,INTBYPASS,RH [INCL ALL]

7044672

$1,226.39

1

SHOCK-REAR,INTBYPASS,LH [INCL ALL]

7044654

$1,226.39

2

BUMPER: B/O [� 0.620 SHAFT, 2.350 TLG] MCU

1500844

$27.99

3

BUMPER: B/O [� 0.620 SHAFT, .700 TLG] MCU, BLACK

1500866

$31.99

4

AIR VALVE PARTS: BALL [� 0.1250] 52100 GRADE 25 STEEL, CHROME

1500071

$6.76

5

FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]

1500842

Unavailable

6

FASTENER, STANDARD: SCREW [#8-32 X 0.250 TLG] 303 SS, SOCKET SET HALF DOG POINT

1500070

$6.39

7

SCREW, #4, SS PAN

1501011

$13.59

8

DECAL, BARCODE

-------

Unavailable

8

DECAL, BARCODE

-------

Unavailable

9

DECAL-RES, INT. BYPASS

1501318

$35.99

10

DECAL-BAND PERF. SER.

1501319

$11.19

11

SEALS:O-RING [(-033) .070 C.S. X 2.364 ID] STANDARD, N-70, STATIC

1501069

$8.87

12

SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC

1501048

$8.87

13

SEALS:O-RING [(-150) .103 C.S. X 2.862 ID] STANDARD, N-70, STATIC

1501070

$8.87

14

SEALS:O-RING [(-315) .210 C.S. X .787 ID] STANDARD, N-70, STATIC

1501050

$7.59

15

RETAINING RING: SNAP [-118] STEEL, GOLD ZINC: PH 15-7 MO, BASIC INTERNAL

1501051

$15.10

16

WIRE, RETAINING RING

1500960

$3.73

17

RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS

1501052

$14.21

18

BEARING CAP

1501320

$17.59

19

-------

Unavailable

19

BODY CAP

1501321

$219.99

20

BODY-OUTER 17.70TLG

1501322

Unavailable

21

DAMPING ADJUST PART: LOW SPEED KNOB [� 1.200 OD, .530 TLG] NYLON, BLACK213-01-355

1501057

$10.65

22

EYELET

1501174

$91.99

23

EYELET PARTS: (T) REDUCER, [0.560 TLG, .476 THRU HOLE] COM 10 SPHERICAL, SLIP FI

1501076

$27.99

24

RESEVOIR 10.0 TLG BLK

1501175

$263.99

25

SHAFT, .875 X 17.1

1501176

$163.99

26

SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG, 2.080-14 STUB ACME ID] LOW

1501079

Unavailable

27

SPRING HARDWARE: PRELOAD RING BACK UP [4.50 OD X .280 TLG, 3.0-14 STUB ACME] BLK

1501080

Unavailable

28

SCREW - BLACK, RES.

1501303

$26.39

29

PISTON ASSEMBLY: FLOATING [�2.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND

1501060

$79.99

30

INTERNAL BYPASS

1501323

$251.19

31

VALVING

-------

Unavailable

32

ASM-BEARING

1501324

$118.79

33

RESERVOIR END CAP ASSEMBLY: [� 2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM, BLAC

1501063

$124.99

34

ADJUSTER-LCS

1501325

$95.99

35

Spring Hardware Assembly: Negative Spring Guide, � 0.875 Shaft [300 lbs/in]

1501083

$59.99

36

BEARING: SPHERICAL [� 0.625 BORE X � 1.1875 OD] COM 10, BK LINER, CCVI

1501044

$65.46
