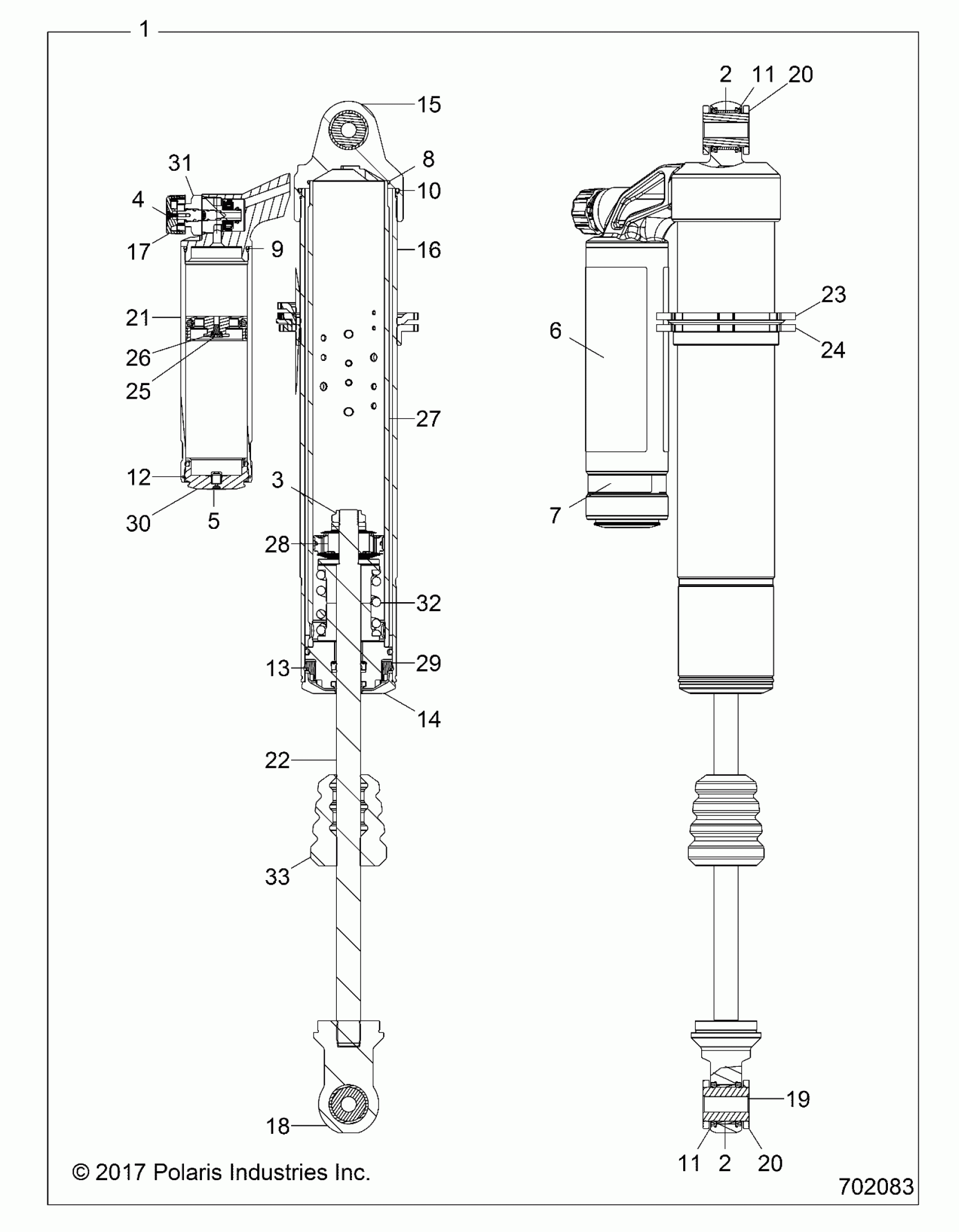

Polaris RZR XP TURBO (R11) - Z18VDE92BB/BM/BS/BU/L92BK SUSPENSION, FRONT SHOCK - Z18VDE92BS (702083) Diagram

#

Description
Price

1

PLATE: TOP-OUT [1.570 OD X 0.503 ID X 0.128 TH, � 0.620 SHAFT]

1500470

Unavailable

1

PLATE: BACK-UP [0.875 OD X 0.503 ID X 0.100 TH]

1500841

Unavailable

1

SHOCK-FRONT,RZRXP,FOXPBK,LH [INCL ALL]

7044656

$1,121.39

1

SHOCK-FRONT,RZRXP,FOXPBK,RH [INCL ALL]

7044657

$1,121.39

1

K-SEAL REBUILD 2"PB 803-01-253 [USED FOR 7044656]

1501328

Unavailable

2

BUSHING, EYELET

1501010

$19.99

2

BUSHING, EYELET

1501010

$19.99

3

FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]

1500842

Unavailable

4

SCREW, #4, SS PAN

1501011

$13.59

5

DECAL, BARCODE

-------

Unavailable

6

DECAL - RESERVOIR

1501307

$31.99

7

DECAL

-------

Unavailable

8

SEALS:O-RING [(-033) .070 C.S. X 1.989 ID] STANDARD, N-70, STATIC

1501047

$8.87

9

O-RING,.103W-1.737ID

1500623

$6.39

10

SEALS:O-RING [(-143) .103 C.S. X 2.425 ID] STANDARD, N-70, STATIC

1501049

$8.87

11

SEAL - CANNED WEATHER

1501274

$12.79

11

SEAL - CANNED WEATHER

1501274

$12.79

12

RING-RETAINING, WIRE 2.050

1501015

$9.59

13

WIRE, RETAINING RING

1500960

$3.73

14

BEAROMG CAP

1501309

$39.99

15

BODY CAP - PB 135'

1501310

$199.99

16

BODY - 12.70 TLG

1501311

$251.19

17

DAMPING ADJUST PART: LOW SPEED KNOB [� 1.200 OD, .530 TLG] NYLON, BLACK213-01-355

1501057

$10.65

18

EYELET

1501162

$79.99

19

EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

1501087

$23.99

20

SPACER - NYLON

1501283

$8.79

20

SPACER - NYLON

1501283

$8.79

21

RESERVOIR 7.0 TLG

1501312

Unavailable

22

SHAFT .62 X 13.8 TLG

1501313

$54.33

23

RING, PRELOAD, BU

1500955

$10.27

24

RING, PRELOAD

1500956

$10.27

25

SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE

1500161

Unavailable

26

ASM., PISTON, FLOAT

1501026

$48.39

27

INTERNAL BYPASS

1501314

$228.35

28

VALVE ASM

-------

Unavailable

30

ASM., END CAP, RESERVOIR

1501027

$101.19

31

ADJUSTER - LCS

1501316

$157.07

32

ASM - NEGATIVE SPRING GUIDE

1501317

$52.79

33

BUMPER: B/O [� 0.620 SHAFT, 2.350 TLG] MCU

1500844

$27.99
