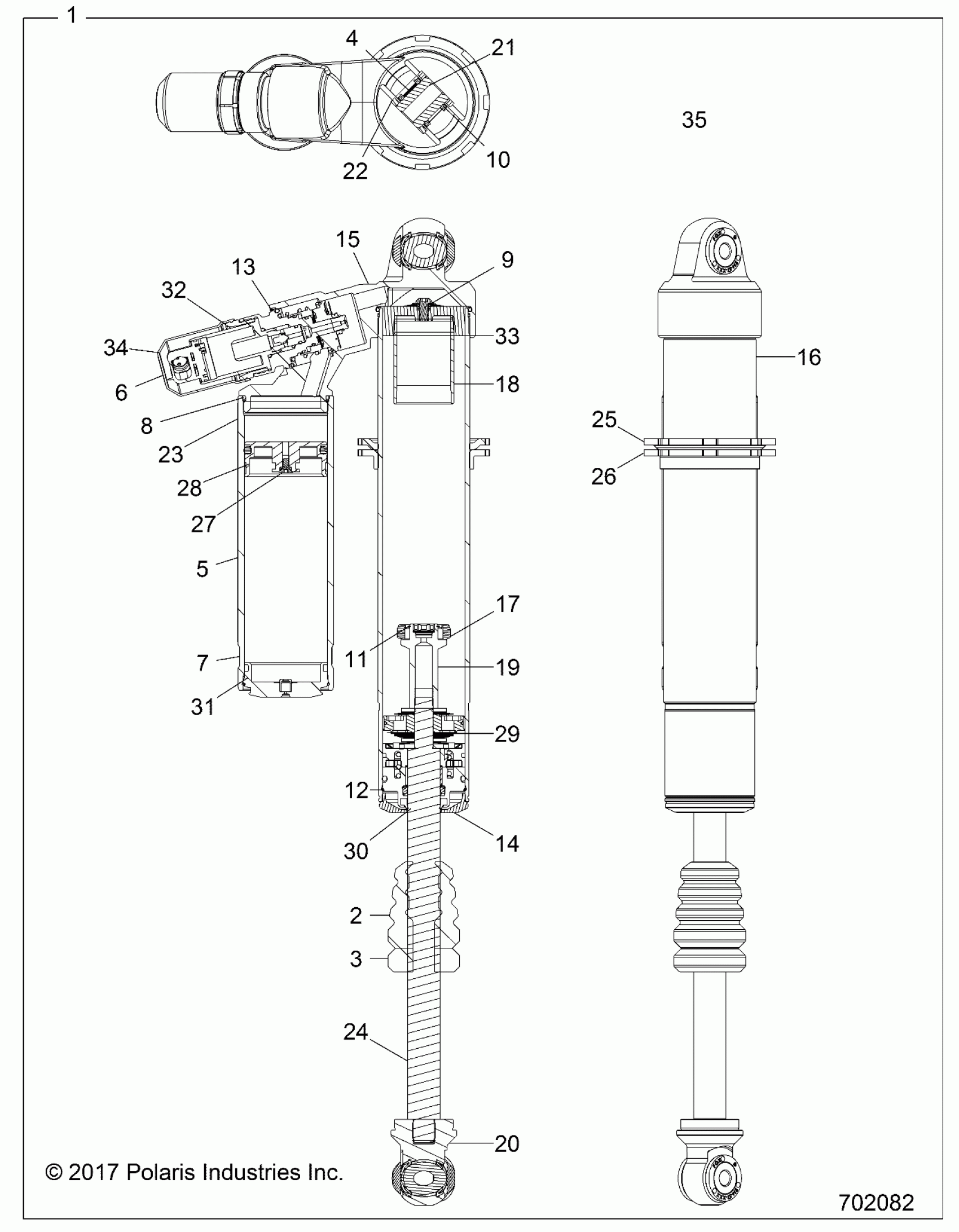

Polaris RZR XP TURBO (R11) - Z18VDE92BB/BM/BS/BU/L92BK SUSPENSION, FRONT SHOCK (TO 2/12/2018) Diagram

#

Description
Price

1

SHOCK-FRONT,FOXLIVE,LH [NCL. ALL]

7044771

$1,226.39

1

SHOCK-FRONT,FOXLIVE,RH [NCL. ALL]

7044772

$1,188.59

2

BUMPER: B/O [� 0.620 SHAFT, 2.350 TLG] MCU

1500844

$27.99

3

BUMPER: B/O [� 0.620 SHAFT, .700 TLG] MCU, BLACK

1500866

$31.99

4

BUSHING, EYELET

1501010

$19.99

5

DECAL

-------

Unavailable

6

DECAL - IRD CVR, LIVE

1501272

$10.39

7

DECAL - BAND

1501273

$11.99

8

SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC

1501048

$8.87

9

SEALS:O-RING [(-143) .103 C.S. X 2.425 ID] STANDARD, N-70, STATIC

1501049

$8.87

10

SEAL - CANNED WEATHER

1501274

$12.79

11

RING - RETAINING

1501275

$19.99

12

WIRE, RETAINING RING

1500960

$3.73

13

RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS

1501052

$14.21

14

Bearing Cap: [� 2.250 Bore, .� 0.875 Shaft] No Scraper, Press-in, Clear Ano II

1501053

$31.10

15

BODY CAP - HIFLOW 45'

1501276

$159.99

15

BODY CAP - HIFLOW 135'

1501277

$159.99

16

BODY - 2.25 X 134

1501278

$151.99

17

-------

Unavailable

18

TUBE - B.O. CUP

1501280

$67.99

19

POST - P.S. DAMP.

1501281

$51.99

20

-------

Unavailable

21

EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

1501087

$23.99

22

SPACER - NYLON

1501283

$8.79

23

RESERVOIR

1501093

$95.99

24

SHAFT - .875 X 12.1TLG

1501284

$43.99

25

RING - PRELOAD B/U

1501285

$23.99

26

RING - PRELOAD

1501286

$23.99

27

SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE

1500161

Unavailable

28

PISTON ASSEMBLY: FLOATING [�2.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND

1501060

$79.99

29

VALVE ASM

-------

Unavailable

30

ASM - BEARING .875ID

1501287

$91.99

31

RESERVOIR END CAP ASSEMBLY: [� 2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM, BLAC

1501063

$124.99

32

ADJUSTER - DSC HIFLO

1501288

$470.79

33

CUP BASE

1501289

$55.99

34

COVER - LIVE VALVE

1501290

$27.99

35

K - REBUILD 2.5

1501291

$87.99
