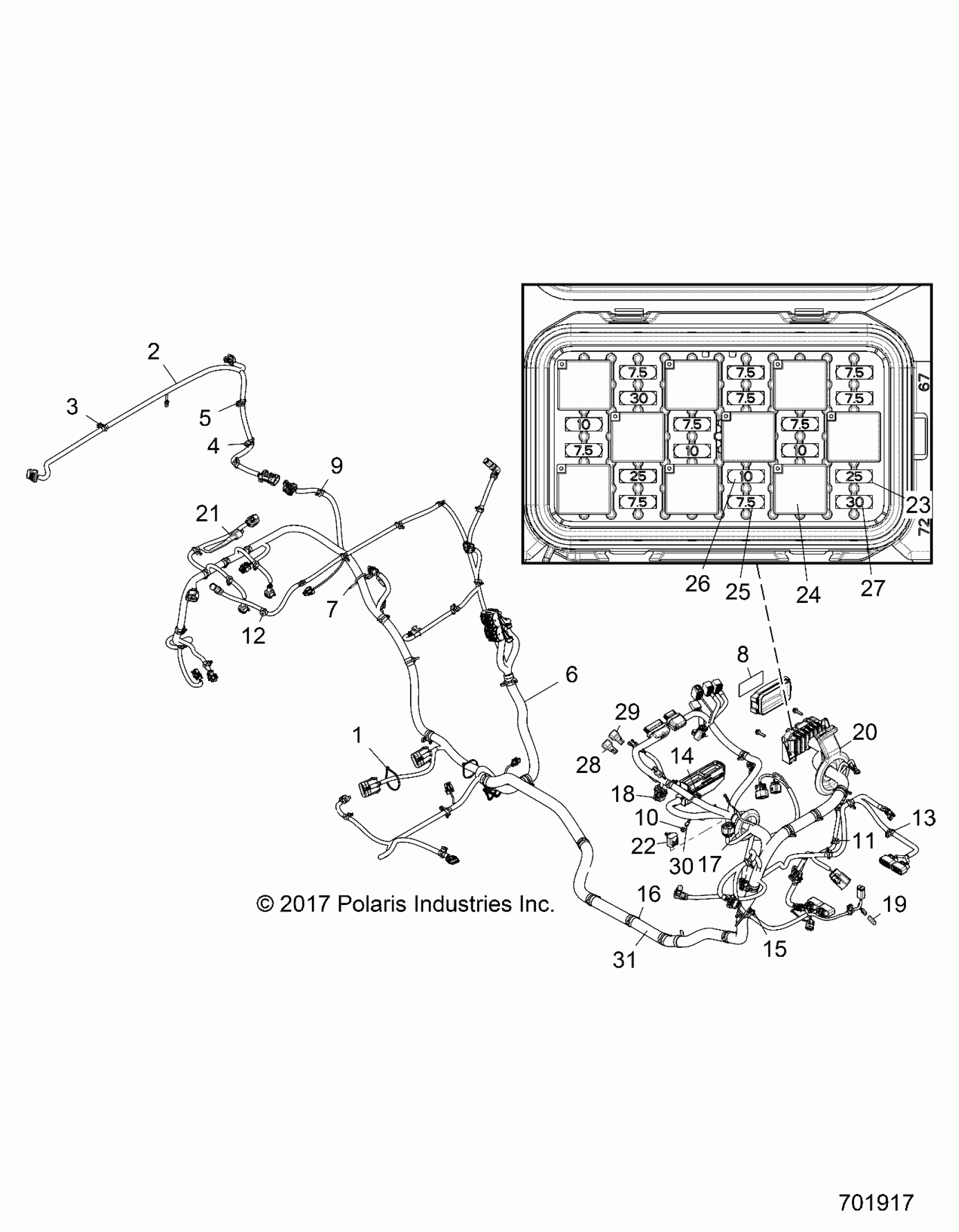

Polaris RZR XP TURBO (R11) - Z18VDE92BB/BM/BS/BU/L92BK ELECTRICAL, WIRE HARNESS - Z18VDL92BK (701917) Diagram

#

Description
Price

1

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

2

HARNESS-BOX,RZR,64,CAMERA [INCL 3-5]

2413608

$51.99

3

CLIP, EDGE, HARNESS

7081890

$10.39

4

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

5

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

HARNESS-CHASSIS,RZR,64,LV [INCL 7-31]

2413839

$1,214.39

7

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

8

LABEL-FUSE BOX

7186206

Unavailable

9

CLIP-ROUTING

7082068

$7.19

10

CLIP-ROUTING,DIN BOX

7082020

$5.59

11

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

12

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

13

CLIP-EDGE,HARNESS

7081890

$10.39

14

CLIP-EDGE, SIDE W/STRAP

7081876

$7.99

15

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

16

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

17

GROMMET-65MM,BLK

5813954

$7.19

18

CAP-VINYL,500X1000,BLACK

5438233

$6.68

19

CAP-VINYL,125X375,BLACK

5438230

$5.59

20

GROMMET-DASH FUSE CTR,RZR

5416469

$10.39

21

BOOT-TMAP

4016101

$23.99

22

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

23

FUSE-25A,MINI BLADE

4011653

$7.99

24

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

25

FUSE-7.5 MINI BLADE (BROWN)

4011068

Unavailable

26

FUSE-IGNITION,10 AMP

2434016

$4.79

27

FUSE-MAIN,30 AMP

2434015

$7.19

28

RESISTOR-5K OHM

2413793

$19.99

29

RESISTOR-7K OHM

2413792

$19.99

30

LED-PANEL MNT,12V,BLUE

2413217

$51.99

31

DIODE-6AMP,1/4,3/16 TERM

2411035

$51.99
