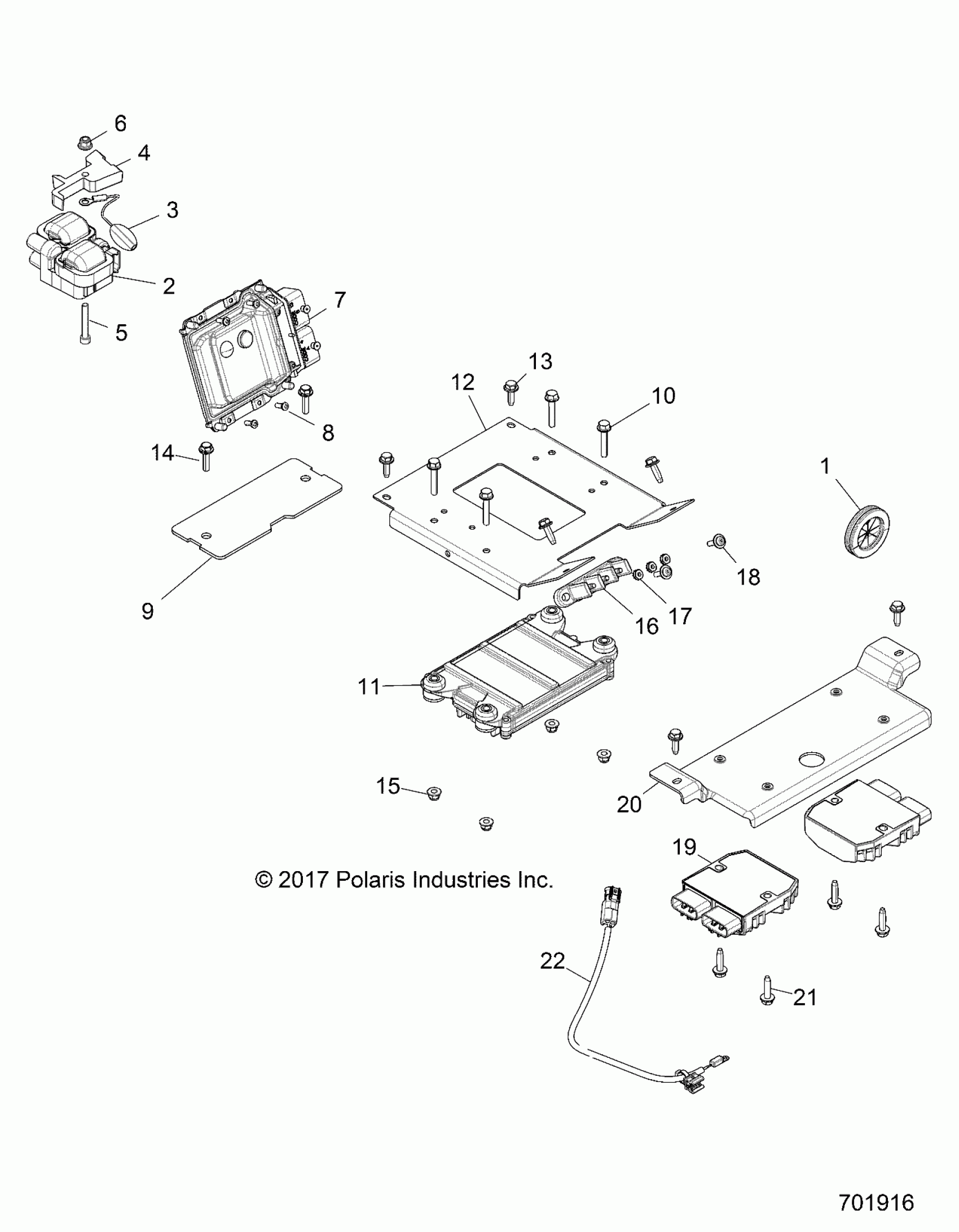

Polaris RZR XP TURBO (R11) - Z18VDE92BB/BM/BS/BU/L92BK ELECTRICAL, ECU, REGULATOR, ETC. - Z18VDL92BK (701916) Diagram

#

Description
Price

1

GROMMET-ELECTRICAL,CAB

5414440

$7.19

2

COIL-EFI

4010425

Unavailable

3

JUMPER,COIL GROUND

4014422

$27.99

4

SPACER-COIL MOUNT

5436577

$3.99

5

SCR-M6X1.0X40,HX/SOC/CP-B

7518780

$3.99

6

NUT-M6 FLANGE,NYLOC

7547274

$1.49

7

ECM-NO START,ME17

4014125

$694.99

8

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

7519091

$3.19

9

PANEL-CLOSEOFF,FUSE CTR LOC

5454317

$8.79

10

SCR-M6X1.0X35,HX/FL-Y/D

7516827

$6.39

11

SCM-PROGRAMMED,LV

4016738

$610.27

12

BRKT-SCM,BLK

5264042-458

$55.99

13

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

14

SCR-HXFL-M6X1.0X25 8.8 RIE

7518576

$3.19

15

NUT-HXFL-M6X1.0 8 ZC NYL

7547487

$2.39

16

BLOCK-TERMINAL,3 POST,TALL

4015778

$27.99

17

NUTS-KEPS,10-32

7547341

$1.49

18

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.49

19

REGULATOR-3PH,35A,SERIES,105C

4012941

$227.99

20

BRKT-MOUNT,REGULATOR,DUAL,BLK

5264485-329

Unavailable

21

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

22

HARNESS-TEMP SENSOR

2413743

$69.99
