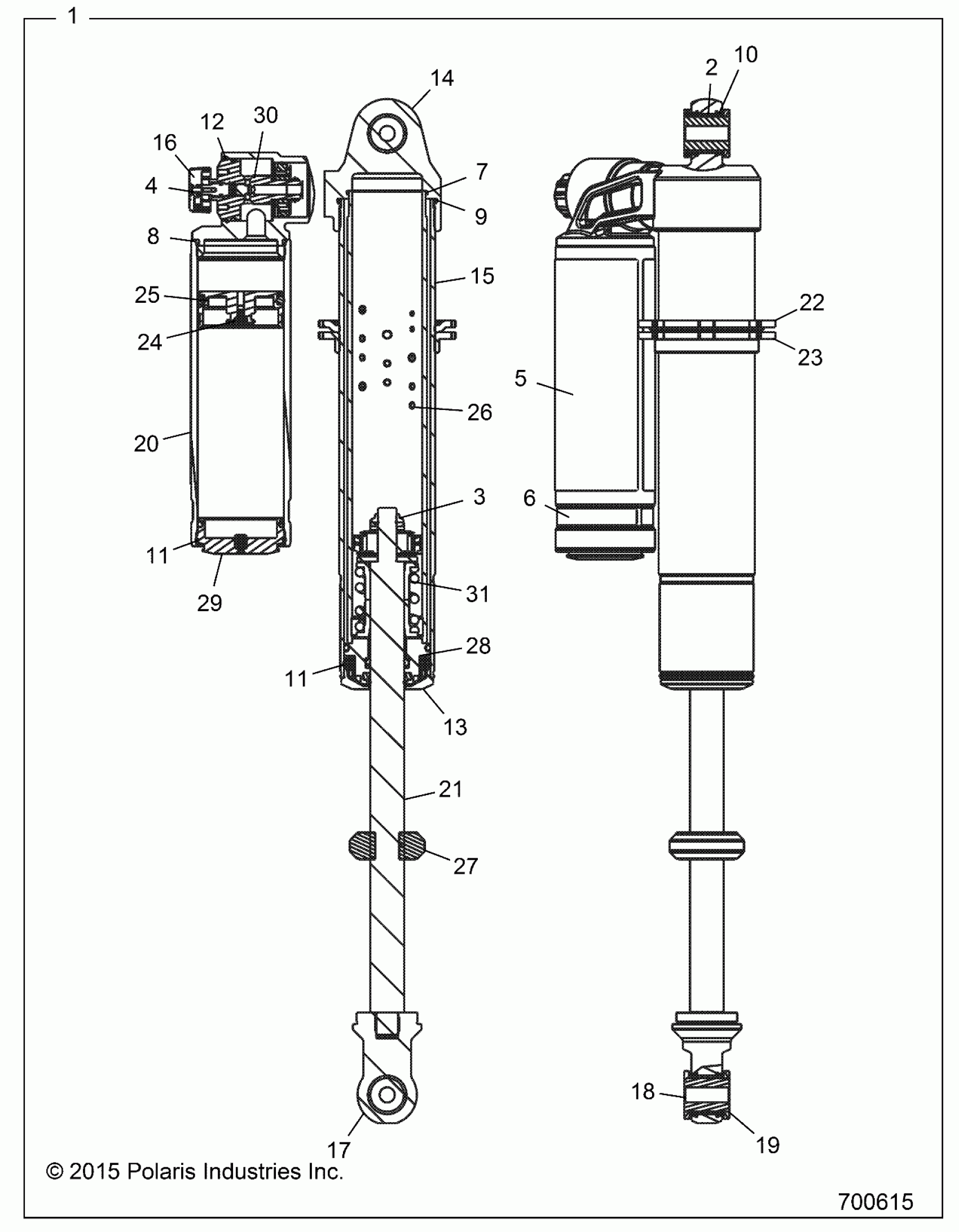

Polaris RZR XP TURBO (R07) - Z17VDE92AK/AM/LK/AB SUSPENSION, FRONT SHOCK - Z17VDE92AK/AM/LK/AB (700615) Diagram

#

Description
Price

1

PLATE: TOP-OUT [1.570 OD X 0.503 ID X 0.128 TH, � 0.620 SHAFT]

1500470

$11.32

1

PLATE: BACK-UP [0.875 OD X 0.503 ID X 0.100 TH]

1500841

$13.99

1

SHOCK, FRONT, PIGGYBACK, LH [INCL. ALL]

7044471

$1,459.99

1

SHOCK, FRONT, PIGGYBACK, RH [INCL. ALL]

7044472

$1,499.99

2

BUSHING, EYELET

1501010

$19.84

3

Fastener, Standard: Nut, Lock [1/2-20 X 0.313 TLG]

1500472

$23.81

4

SCREW, #4, SS PAN

1501011

$13.49

5

Decal: Reservoir [4.50 X 8.04] Internal Bypass

1501045

$12.43

6

Decal: Band [.45 X 7.63] Performance Series

1501046

$7.98

7

SEALS:O-RING [(-033) .070 C.S. X 1.989 ID] STANDARD, N-70, STATIC

1501047

$8.87

8

SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC

1501048

$8.87

9

SEALS:O-RING [(-143) .103 C.S. X 2.425 ID] STANDARD, N-70, STATIC

1501049

$8.87

10

SEAL, WEATHER

1501014

$8.89

11

WIRE, RETAINING RING

1500960

$1.99

11

WIRE, RETAINING RING

1500960

$1.99

12

RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS

1501052

$14.21

13

Bearing Cap: [� 2.250 Bore, .� 0.875 Shaft] No Scraper, Press-in, Clear Ano II

1501053

$31.10

14

BODY CAP, PB, HI FLOW [USE W/7044471]

1501160

Unavailable

14

BODY CAP, PB, HI FLOW [USE W/7044472]

1501166

Unavailable

15

BODY 12.50 TLC CLR

1501161

$144.03

16

DAMPING ADJUST PART: LOW SPEED KNOB [� 1.200 OD, .530 TLG] NYLON, BLACK213-01-355

1501057

$11.54

17

EYELET

1501162

$104.99

18

EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

1501087

$23.81

19

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

1501088

$6.35

20

RESERVOIR

1501093

$124.99

21

SHAFT, .875 X 13.8

1501163

$198.48

22

RING, PRELOAD, BU

1500955

$8.99

23

RING, PRELOAD

1500956

$8.99

24

SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE

1500161

$44.99

25

PISTON ASSEMBLY: FLOATING [�2.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND

1501060

$79.99

26

INTERNAL BYPASS, 3 PAD

1501164

Unavailable

27

BUMPER: B/O [� 0.620 SHAFT, .700 TLG] MCU, BLACK

1500866

$32.37

28

ASM., SEAL HEAD

1501095

$68.74

29

RESERVOIR END CAP ASSEMBLY: [� 2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM, BLAC

1501063

$124.99

30

Damping Adjust Assembly: LSC Adjuster [� 1.435 Bore] High Flow, Slotted Needle

1501064

Unavailable
