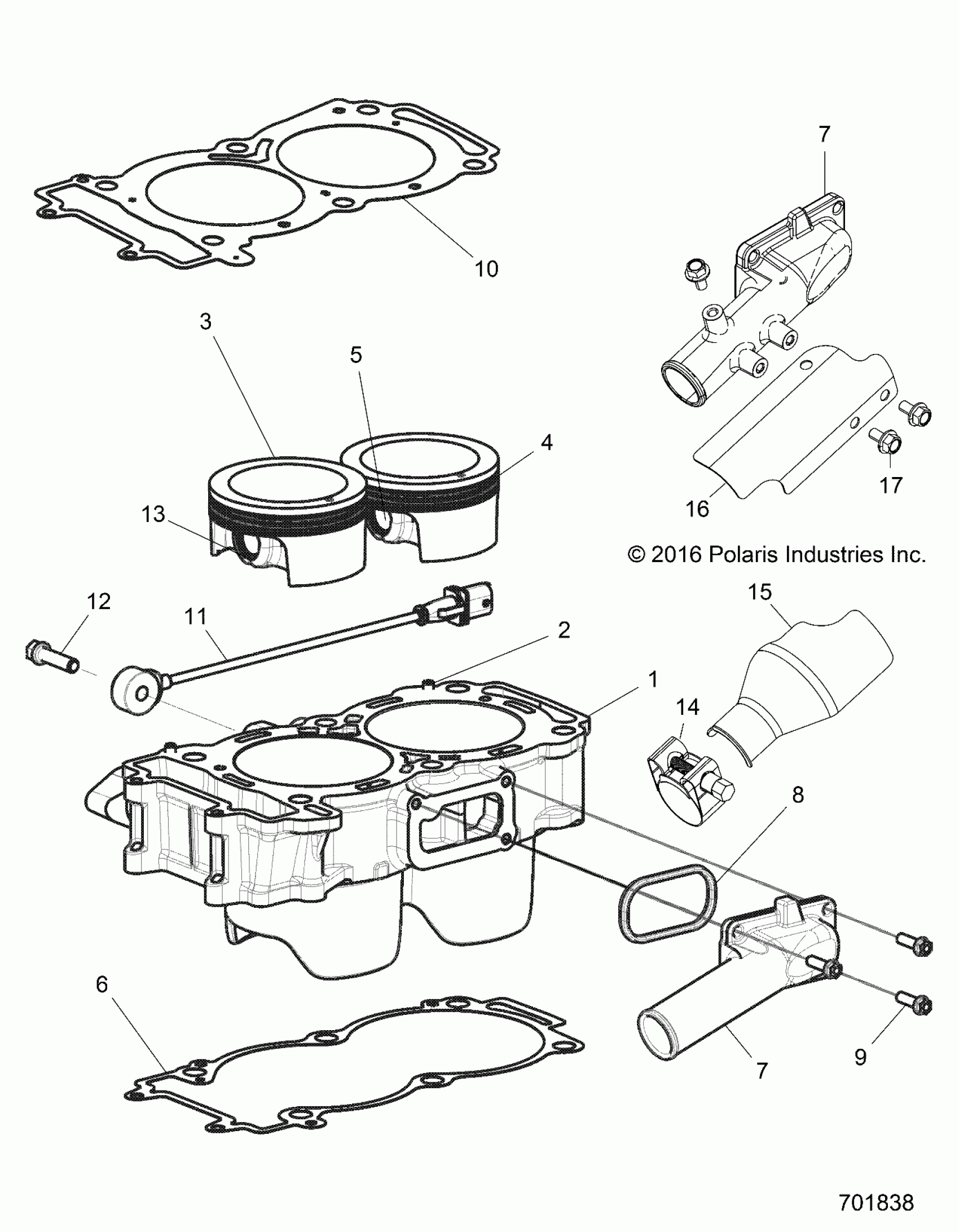

Polaris RZR XP TURBO (R07) - Z17VDE92AK/AM/LK/AB ENGINE, CYLINDER AND PISTON - Z17VDE92AK/AM/LK/AB (701838) Diagram

ASM., CYLINDER [INCL. 2]

3023035

$470.24

PIN-DOWEL,M6X10

5132835

$2.38

ASM., PISTON [INCL. 4,5,13]

2206216

$180.49

KIT, PISTON RINGS [INCL. SET FOR 1 PISTON]

2206217

$76.17

PIN, PISTON

3022291

$52.24

GASKET, BASE, 2 CYL

5253037

$32.37

COVER-WATER INLET,CAST [TO 11/21/16]

5632557

$15.37

COVER-WATER INLET,MACH [FROM 11/21/16]

5141311

$36.41

COVER-WATER INLET,CAST [TO 11/21/16]

5632557

$15.37

COVER-WATER INLET,MACH [FROM 11/21/16]

5141311

$36.41

GASKET-WATER,INLET

5813736

$24.27

SCREW

7518576

$3.17

GASKET, CYLINDER, HEAD

5814437

$72.60

SENSOR-DETONATION BOSCH

2410369

$80.94

SCREW

7517262

$5.56

RING-RTNG,RND,22.0X1.6,0600102

7710479

$7.14

CLAMP-HOSE-SHIELD [BUILT FROM 10/12/16 TO 11/21/16]

3023322

$39.99

SHIELD HEAT-COOLANT [BUILT FROM 10/12/16 TO 11/21/16]

5264168

$32.37

SHIELD HEAT BOLTED-COOLANT [BUILT 11/22/16 AND AFTER]

5264204

$10.51

SCR-HXFL-M6X1.0X12 8.8 [BUILT 11/22/16 AND AFTER]

7520710

$3.97
