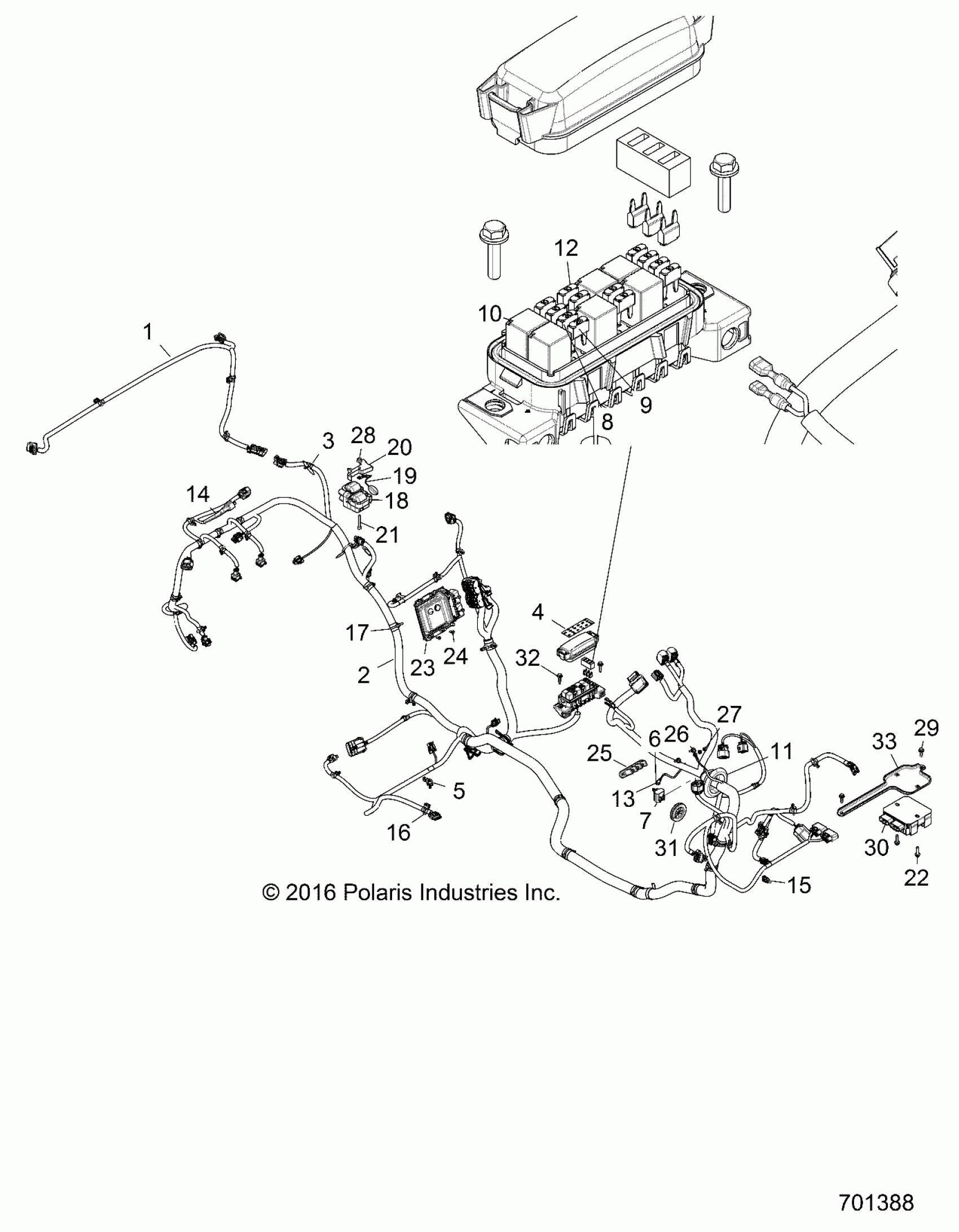

Polaris RZR XP TURBO (R07) - Z17VDE92AK/AM/LK/AB ELECTRICAL, WIRE HARNESS - Z17VDE92AK/AM/LK/AB (701388) Diagram

#

Description
Price

1

HARNESS, BOX

2412884

$55.99

2

KIT-HARNESS,T-MAP

2881482

$147.99

2

HARNESS-CHASSIS,RZR,T,64 [INCL 3-17]

2413506

$1,214.39

3

CLIP-ROUTING

7082068

$7.19

4

LABEL-FUSE BOX

7184390

Unavailable

5

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

CLIP-ROUTING,DIN BOX

7082020

$5.59

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

8

FUSE-MAIN,30 AMP

2434015

$7.19

9

FUSE-25A,MINI BLADE

4011653

$7.99

10

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

11

GROMMET-65MM,BLK

5813954

$7.19

12

FUSE-IGNITION,10 AMP

2434016

$4.79

13

LED-PANEL MNT,12V,BLUE

2413217

$51.99

14

BOOT-TMAP

4016101

$23.99

15

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

16

CLIP-EDGE,HARNESS

7081890

$10.39

17

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

18

COIL-EFI

4010425

Unavailable

19

JUMPER ,COIL GROUND

4014422

$27.99

20

SPACER-COIL MOUNT

5436577

$3.99

21

SCREW

7518780

$3.99

22

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

23

ECM, NO START

4014125

$694.99

24

SCREW

7519091

$3.19

25

BLOCK-TERMINAL,3 POST,TALL

4015778

$27.99

26

Screw

7518196

$1.49

27

NUTS-KEPS

7547341

$1.49

28

NUT-M6 FLANGE,NYLOC

7547274

$1.49

29

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

30

REGULATOR-3PH,50A,SERIES,HISPD

4014856

Unavailable

31

GROMMET

5414440

$7.19

32

BOLT, FLANGE, BLACK

7518576

$3.19

33

BRKT-MOUNT,REGULATOR,BLK

5261650-329

Unavailable
