- RZR XP TURBO (R07) - Z17VDE92AK/AM/LK/AB
DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z17VDE92AK/AM/LK/AB (701380)

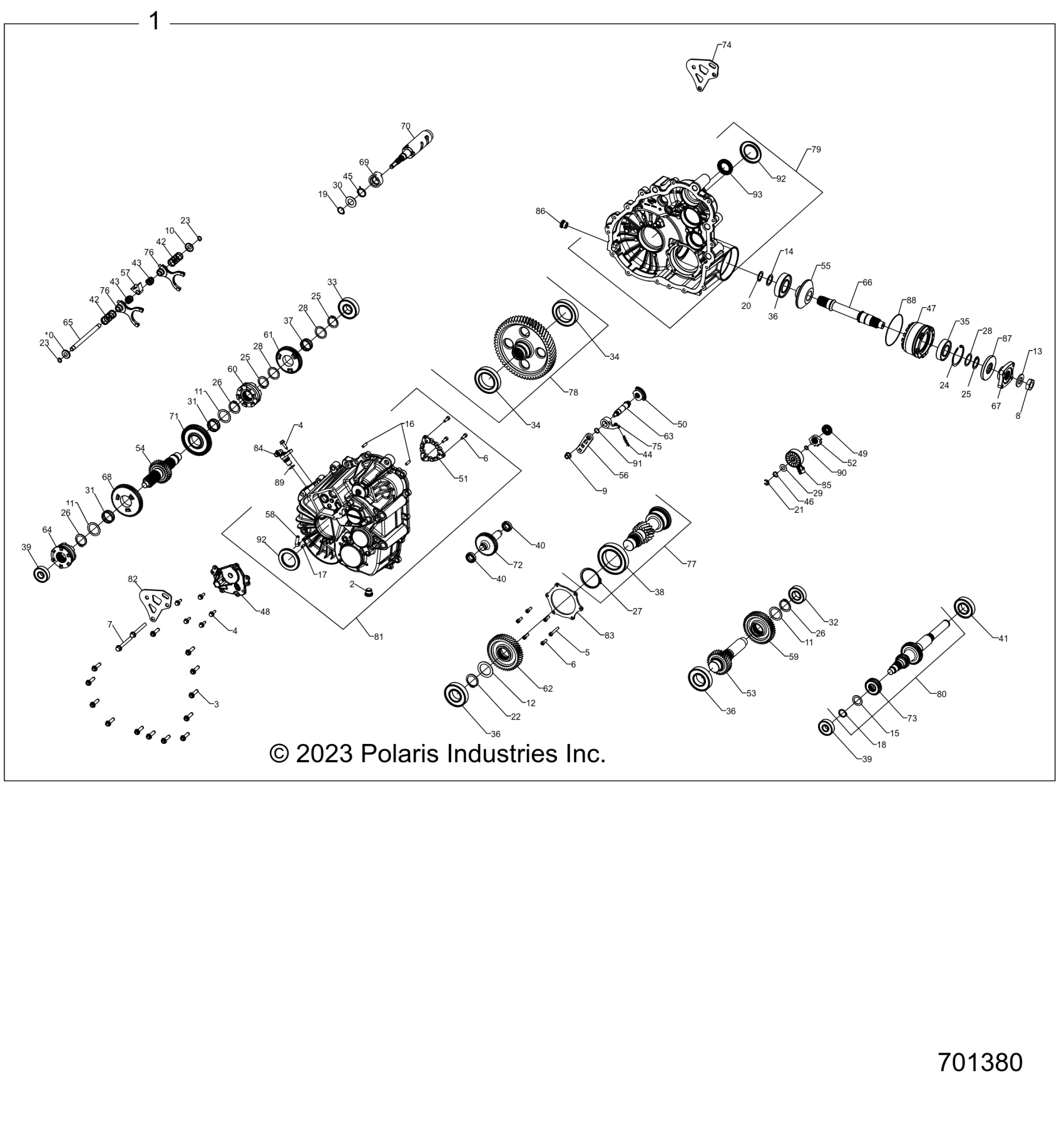

Polaris RZR XP TURBO (R07) - Z17VDE92AK/AM/LK/AB DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z17VDE92AK/AM/LK/AB (701380) Diagram
#
1
ASM-GEARCASE,COMPLETE [INCL. ALL]
1333663
$4,078.79
2
PLUG, M18 X 1.5 MAGNETIC
3234756
$31.99
3
SCREW-HEXFLANGEHEAD,M8X1.25X30
3234898
$9.59
3
SCREW-HEXFLANGEHEAD,M8X1.25X30
3234898
$9.59
4
SCREW, HEX FLANGE HEAD M6 X 1 X 20
3235206
$7.19
4
SCREW, HEX FLANGE HEAD M6 X 1 X 20
3235206
$7.19
5
SCREW, SOCKET HEAD CAP, M6 X 1 X 40
3235208
$11.19
5
SCREW, SOCKET HEAD CAP, M6 X 1 X 40
3235208
$11.19
6
SCREW, SOCKET HEAD CAP, M6 X 1 X 18
3235332
$3.99
6
SCREW, SOCKET HEAD CAP, M6 X 1 X 18
3235332
$3.99
6
SCREW, SOCKET HEAD CAP, M6 X 1 X 18
3235332
$3.99
7
SCREW HEX FLANGE M8 X 1.25 X 70
3235802
$6.15
7
SCREW HEX FLANGE M8 X 1.25 X 70
3235802
$6.15
8
NUT, JAM M20 X 1.5
3235803
$7.99
9
NUT, LOCK HEX FLANGE NYLON M8 X 1.25
3235210
$7.99
9
NUT, LOCK HEX FLANGE NYLON M8 X 1.25
3235210
$7.99
9
NUT, LOCK HEX FLANGE NYLON M8 X 1.25
3235210
$7.99
10
WASHER-CUP
3234091
$9.59
10
WASHER-CUP
3234091
$9.59
11
WASHER 32.3 X 42 X 1.5
3235211
$10.39
11
WASHER 32.3 X 42 X 1.5
3235211
$10.39
12
WASHER 35.6 X 50 X 1.5
3235212
$13.59
13
WASHER, LOCKING 21.4 X 39 x 3.4
3235804
$11.43
14
WASHER 25.26 X 34 X 2
3235805
$7.03
15
WASHER 22.7 X 32 X 1.5
3235991
$11.43
16
PIN, DOWEL 6 X 20
3234330
$7.19
17
PIN, SPRING SLOTTED 6 X 12
7043746
$7.19
18
RING, RETAINING
7710434
$3.99
19
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
20
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
$5.59
21
RING SNAP
3233834
$10.39
22
RING, RETAINING SHAFT, DIA. 1.375
3233364
$6.39
23
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
$10.39
23
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
$10.39
24
RING, RETAINING BASIC INTERNAL, 62MM
3234741
$9.59
25
RING, RETAINING
3234205
$11.19
25
RING, RETAINING
3234205
$11.19
25
RING, RETAINING
3234205
$11.19
26
RING-RETAIN,EXT,MSR-32(130296)
3235214
$9.59
26
RING-RETAIN,EXT,MSR-32(130296)
3235214
$9.59
26
RING-RETAIN,EXT,MSR-32(130296)
3235214
$9.59
27
RING, RETAINING VSH-237
3235216
$10.39
28
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
$9.59
28
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
$9.59
28
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
$9.59
29
WASHER,THRUST,0.446 X 0.88 X 0.025
3234642
$10.39
30
SPACER, 19.4 X 34 X 2
3235883
$23.99
31
BEARING, NEEDLE
3233014
$43.99
32
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
33
BEARING
3233020
$47.99
34
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
$51.99
34
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
$51.99
35
BEARING-BALL 6206 C3 30X62X16
3233790
$27.99
36
BEARING,BALL 6207 C3 35X72X17
3234065
$47.99
36
BEARING,BALL 6207 C3 35X72X17
3234065
$47.99
36
BEARING,BALL 6207 C3 35X72X17
3234065
$47.99
37
BEARING, NEEDLE CAGE ASSY
3233384
$31.99
38
BEARING, BALL 6012 C3 60 X 95 X 18
3235218
$59.99
39
BEARING, BALL 6303 17 X 47 X 14
3234652
$15.99
39
BEARING, BALL 6303 17 X 47 X 14
3234652
$15.99
40
BEARING, BALL 6903 17 X 30 X 7
3235807
$35.99
40
BEARING, BALL 6903 17 X 30 X 7
3235807
$35.99
41
BEARING, BALL 6206RSH2 STD 30X62X16
3235496
$31.99
42
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
$19.99
42
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
$19.99
43
SPRING, COMPRESSION 0.46 I.D. X 0.73
3234089
$23.99
43
SPRING, COMPRESSION 0.46 I.D. X 0.73
3234089
$23.99
44
SPRING, COMPRESSION DETENT
3234578
$12.79
45
SPRING, TORSION
3235885
$19.99
46
SPRING, WASHER
3235327
$9.59
47
TUBE, SNORKEL MACH
3235947
$99.99
48
COVER, SECTOR GEARS MACH
3235809
$39.59
49
GEAR, SECTOR 16T
3233839
$31.99
50
GEAR-SECTOR,31T
3233832
$31.99
51
PLATE, PARK 12-FACE
3235456
$35.99
52
STAR, DETENT
3235982
$31.99
53
SHAFT, IDLER 29T
3235223
$107.99
54
SHAFT, REVERSE 29T
3235224
$143.99
55
GEAR, 19T SNORKEL
3235812
$123.99
56
BELLCRANK 92 DEGREE
3235227
$23.99
57
COLLAR-SHIFT
3234073
$31.99
58
TUBE, VENT 90 -1/4" HOSE
3234230
$9.59
59
GEAR-44T,STAGE2
3235229
$87.99
60
ENGAGEMENT DOG, 6-FACE
3235233
$119.99
61
GEAR, 53T
3235234
$79.99
62
GEAR, 46T STAGE 3
3235236
$103.99
63
SHAFT-SHIFT(352973)
3235238
$37.61
64
SHIFT DOG, PARK
3235457
$135.99
65
RAIL, SHIFT SHAFT
3235542
$27.99
66
SHAFT, FRONT OUTPUT
3235815
$159.99
67
COUPLER
3235816
$43.99
68
GEAR, LOW 64T
3235774
$75.99
69
PARK CAM
3235983
$151.99
70
DRUM, SHIFT MACH
3235984
$263.99
71
GEAR, REVERSE 56T
3235985
$95.99
72
GEAR, IDLER 39T
3235986
$107.99
73
GEAR, LOW 29T
3235989
$119.99
74
WELDMENT, REAR MOUNT BRACKET
3235817
$43.99
75
SUBASSEMBLY, PAWL DETENT, ROLLER
3235452
$31.99
76
SUBASSEMBLY, SHIFT FORK
3235920
$71.99
76
SUBASSEMBLY, SHIFT FORK
3235920
$71.99
77
SUBASSEMBLY, PINION
3235820
$347.99
78
SUBASSEMBLY, OUTPUT
3235847
$284.23
79
SUBASSEMBLY, LH CASE
3235949
$466.39
80
SUBASSEMBLY, INPUT 42T/22T/29T
3235987
$327.99
81
SUBASSEMBLY, RH CASE
3235992
$347.99
82
BRACKET, REAR MOUNT
3235822
$39.99
83
COVER, BEARING CENTER DRIVE
3235823
$43.99
84
SENSOR-SPEED
4082135
$103.99
85
SWITCH, ROTARY 2 PIN RESISTIVE
7662299
$111.99
86
PLUG, M18 X 1.5
3234755
$27.99
87
SEAL, TRIPLE LIP 30 X 75 X 8
3235824
$55.99
88
O-RING 3.609 I.D. X 0.139
3235948
$6.39
89
O-RING, -016 VITON
3236279
$7.19
90
O-RING VITON
3233836
$6.87
91
O-RING VITON
3233828
$6.79
92
SEAL, TRIPLE LIP, VITON 40 X 70 X 7
3235052
$31.99
92
SEAL, TRIPLE LIP, VITON 40 X 70 X 7
3235052
$31.99
93
SEAL, TRIPLE LIP 1.180X1.850X0.315 VITON
3235848
$31.99
