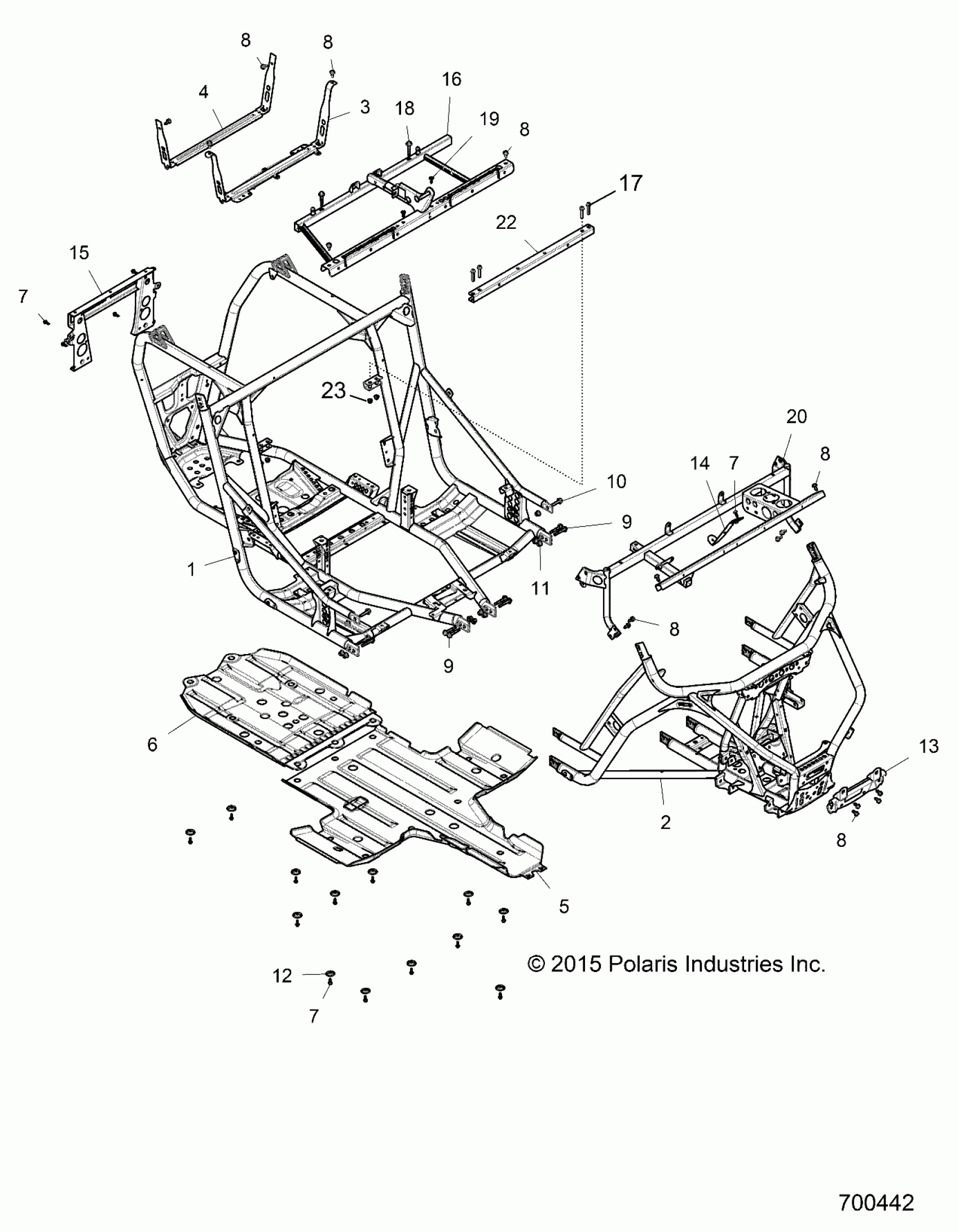

Polaris RZR XP TURBO (R07) - Z17VDE92AK/AM/LK/AB CHASSIS, MAIN FRAME AND SKID PLATES - Z17VDE92AK/AM/LK/AB (700442) Diagram

#

Description
Price

1

WELD-MAIN FRAME,BLK

1022402-458

$2,230.79

2

WELD-MAINFRAME,FRT,SWAY,MBLK

1022684-458

$1,588.39

3

BRACKET, BOX STRAP, BLACK

5260947-329

$43.99

4

BRACKET, BOX SUPPORT REAR, BLACK

5260948-329

$43.99

4

BRACKET, BOX SUPPORT REAR, BLACK

5260948-329

$43.99

5

PLATE, SKID, BLACK

5450239-070

Unavailable

6

PLATE, SKID, REAR, BLACK

5452063-070

Unavailable

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

8

BOLT

7518555

$2.39

8

BOLT

7518555

$2.39

8

BOLT

7518555

$2.39

8

BOLT

7518555

$2.39

8

BOLT

7518555

$2.39

8

BOLT

7518555

$2.39

9

SCREW

7519285

$2.39

9

SCREW

7519285

$2.39

10

SCREW

7519332

$5.59

11

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

12

WASHER-SKID PLATE

7556065

$4.79

13

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$51.99

14

BRACKET, DIN MOUNT, BLACK

5257304-329

$27.99

15

SUPPORT, REAR, BLACK

1019529-458

$115.99

16

BASE, SEAT, BLACK

1020571-329

$195.99

17

SCR-M8X1.25X45-HX/FL-Y

7516732

$1.59

18

BOLT

7518474

$4.79

19

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

20

DASH, BLACK

1020984-329

$307.99

22

BRKT-CLOSE OFF SUPPORT,BLK

5260539-329

$35.99

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
