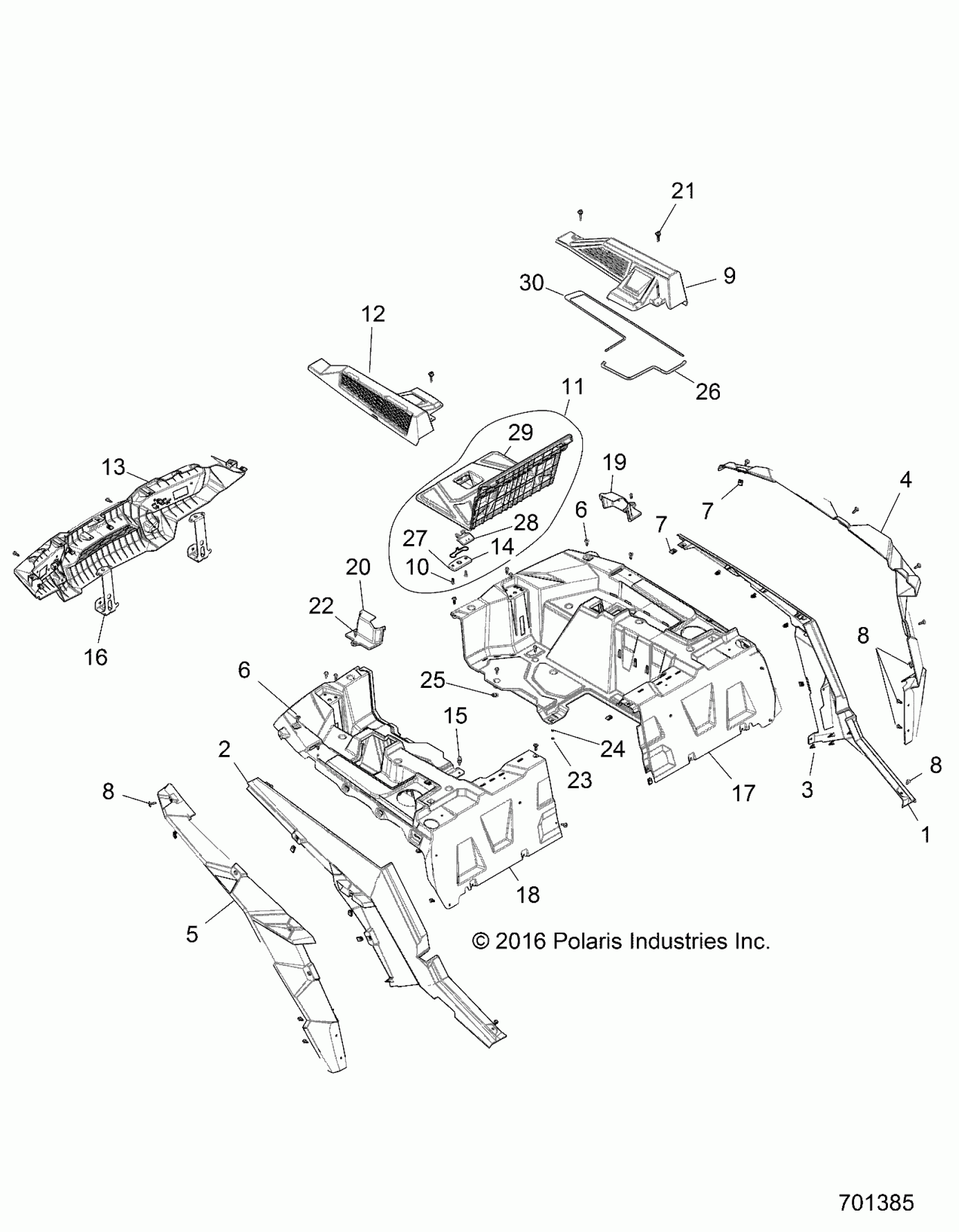

Polaris RZR XP TURBO (R07) - Z17VDE92AK/AM/LK/AB BODY, REAR RACK AND FENDERS - Z17VDE92AK/AM/LK/AB (701385) Diagram

#

Description
Price

1

ASM., FENDER, REAR, CLIP, LH, PAINTED, TITANIUM [INCL. QTY 6 OF 3][AM]

2635123-632

$360.79

1

ASM-FNDR,PNT,RR,CLIP,LH,C.BLK [INCL. QTY 6 OF 3][AK][LK][AB]

2635123-266

Unavailable

2

ASM-FNDR,PNT,RR,CLIP,RH,TTNM [INCL. QTY 6 OF 3][AM]

2635126-632

$360.79

2

ASM-FNDR,PNT,RR,CLIP,RH,C.BLK [INCL. QTY 6 OF 3][AK][LK][AB]

2635126-266

Unavailable

3

CLIP-DASH,TRIM,METAL

7519806

Unavailable

4

FENDER, REAR FLAIR, LH, BLACK

5439762-070

$103.99

5

FENDER, REAR FLAIR, RH, BLACK

5439763-070

$103.99

6

SCR-TXTH-M6X1.0X25 ZFB

7519650

Unavailable

6

SCR-TXTH-M6X1.0X25 ZFB

7519650

Unavailable

7

NUT, U-TYPE

7547674

Unavailable

7

NUT, U-TYPE

7547674

Unavailable

8

Rivet

7661855

Unavailable

8

Rivet

7661855

Unavailable

8

Rivet

7661855

Unavailable

9

ASM-BEZEL,LH,FROG SKINZ

2636237

$103.99

10

SCREW

7519290

$3.99

11

ASM., PANEL, BOX, ACCESS [INCL. 10, 14, 27-29, WARNING DECAL][AK][AM][AB]

2636140

Unavailable

11

ASM-PANEL-BOX,ACCESS [INCL. 10, 14, 27-29, WARNING DECAL][LK]

2636572

Unavailable

12

ASM-BEZEL,RH,FROG SKINZ

2636238

$103.99

13

ASM., FASCIA, REAR, DECAL, BLACK [INCL. DECAL]

2635073-070

$203.99

14

SPRING, LATCH, SEAT

7081466

$39.99

15

PLUNGER, BOX LATCH

5139009

$13.59

16

BRACKET, REAR FASCIA, BLACK

5257790-329

Unavailable

17

BOX, REAR, LH, BLACK

5439784-070

Unavailable

18

BOX, REAR, RH, BLACK

5450238-070

Unavailable

19

PANEL, SHOCK, RESERVOIR, LH, BLACK

5452043-070

$10.39

20

PANEL, SHOCK, RESERVOIR, RH, BLACK

5452044-070

$10.39

21

SCR-TXTH-M6X1.0X50 RIE

7519841

$2.39

22

SCREW

7512026

$1.49

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

24

Washer, Flat

7555859

$1.49

25

WASHER, NYLON

7555916

$1.59

26

SEAL,CLUTCH INTAKE,FRONT

5814452

$11.19

27

LATCH, COVER PLATE, BLACK

5450510-070

$4.79

28

HANDLE-SEAT BASE LATCH

5437121

$4.84

29

PANEL, BOX, ACCESS, BLACK

5450499-070

Unavailable

30

SEAL,CLUTCH INTAKE,REAR

5814453

$31.99
