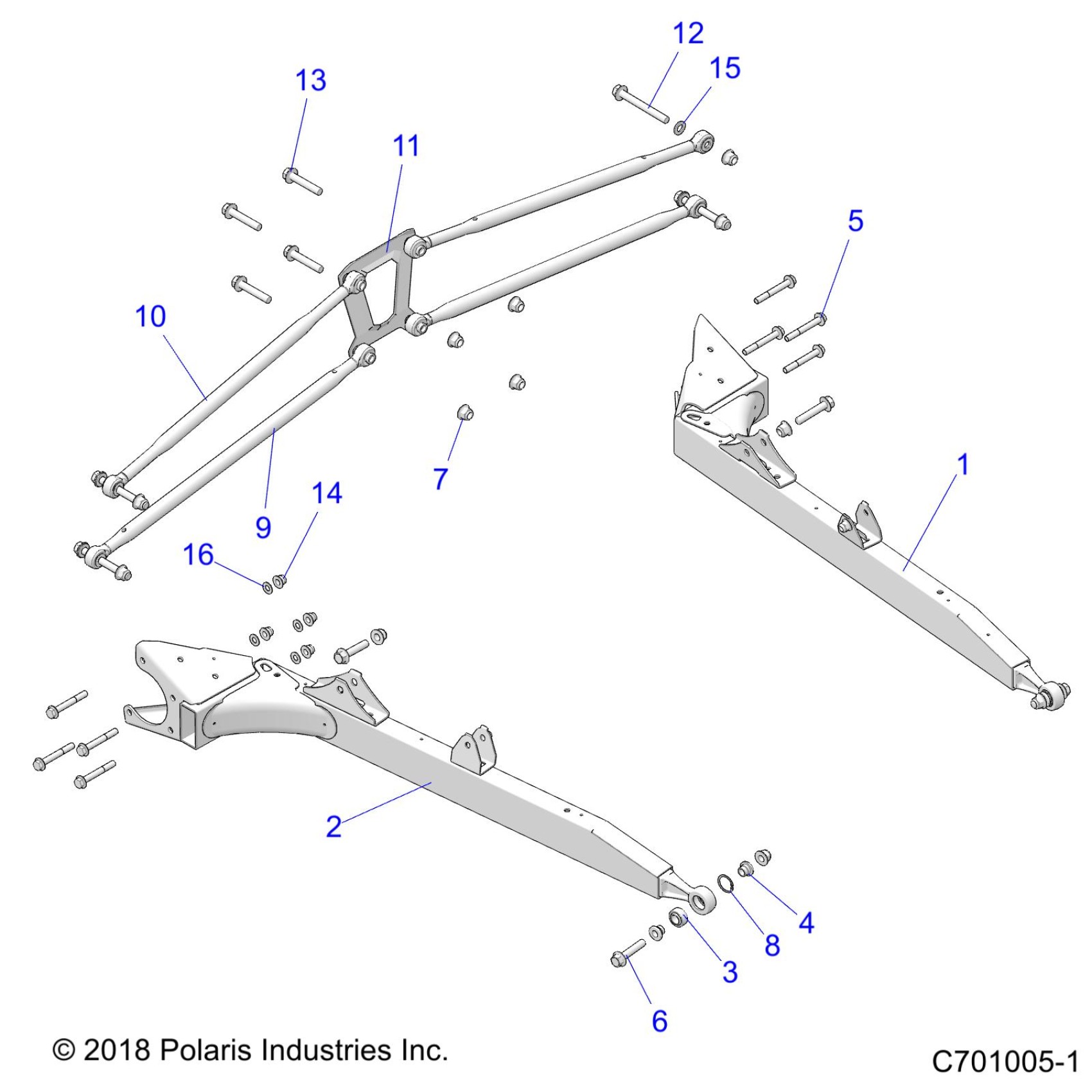

Polaris RZR XP TURBO (R03) - Z20NAE92AL/AR/BL/BR/FAL/AR/F92AL/AR SUSPENSION, REAR CONTROL ARMS - Z20NAE92AL/AR/BL/BR/F92AL/AR (C701005-1) Diagram

WELD-TRL ARM,LH,I.RED [E92AR][E92BR][F92AR]

1019356-293

$393.89

WELD-TRL ARM,LH,BLK [E92AL][E92BL][F92AL]

1019356-458

$383.99

WELD-TRL ARM,RH,I.RED [E92AR][E92BR][F92AR]

1019357-293

$393.89

WELD-TRL ARM,RH,BLK [E92AL][E92BL][F92AL]

1019357-458

$383.99

BEARING, SPHERICAL

3514689

$39.99

BUSHING, REDUCER

5336751

$6.39

SCREW

7519286

$7.19

SCREW

7519138

$9.59

NUT, FLANGE, NYLOK

7547334

$4.79

RING, RETAINER

7710437

$3.19

ASM-RADIUS ROD,BTM,RED [E92AR][E92BR][F92AR]

1544029-293

$171.99

ASM-RADIUS ROD,BTM,BLK [E92AL][E92BL][F92AL]

1544029-458

$171.99

ASM-RADIUS ROD,RED [E92AR][E92BR][F92AR]

1544030-293

$179.99

ASM-RADIUS ROD,BLK [E92AL][E92BL][F92AL]

1544030-458

$179.99

PLATE-REAR,BOLT BRACE,M.BLK

5262630-458

$39.99

SCREW

7520479

$7.19

SCR-HXFL-M12X1.5X65 10.9 ZOD

7520477

$3.19

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER

7556287

$7.19

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99
