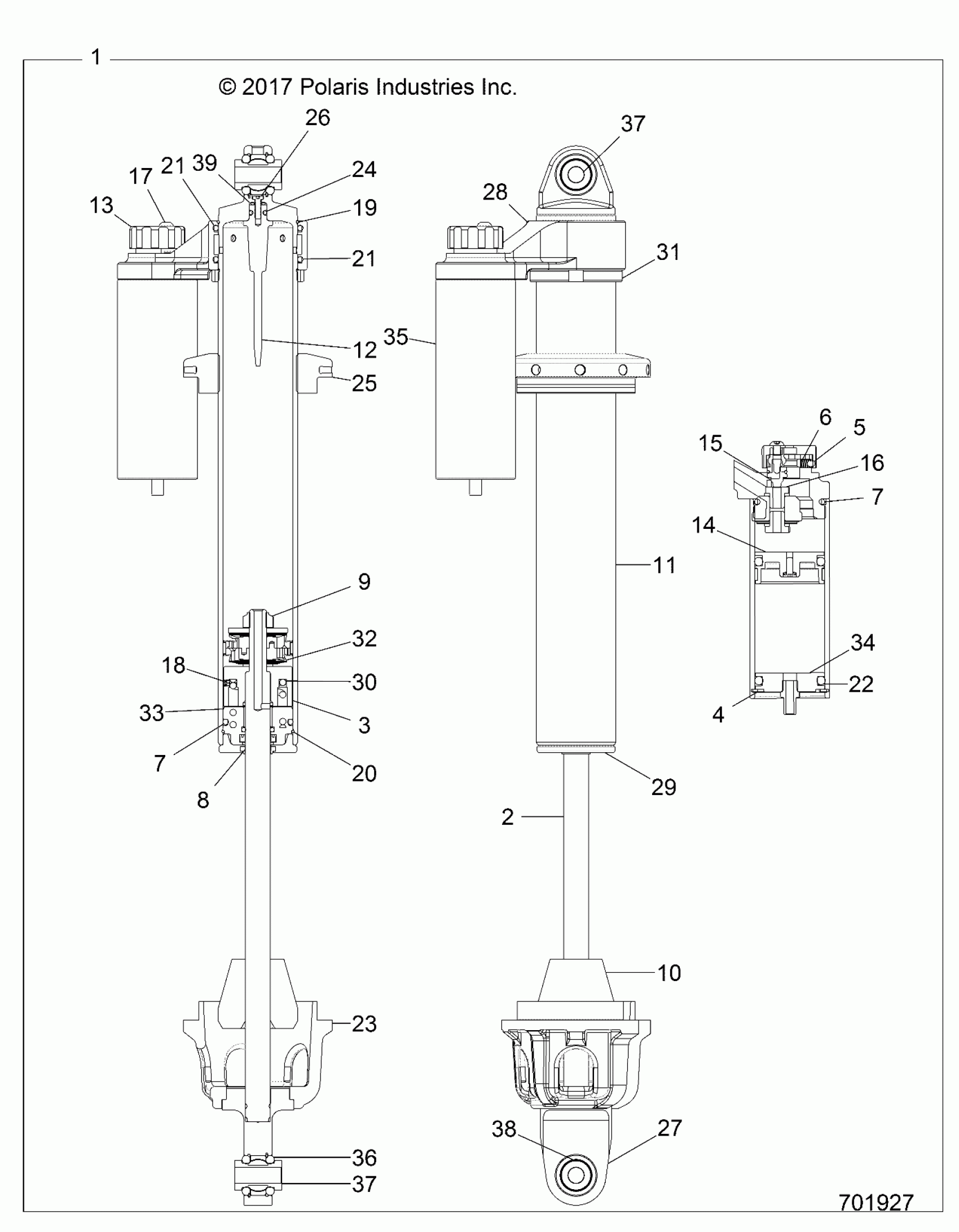

Polaris RZR XP TURBO (R03) - Z20NAE92AL/AR/BL/BR/FAL/AR/F92AL/AR SUSPENSION, FRONT SHOCK - Z20NAE92AL/AR/BL/BR/F92AL/AR (701927) Diagram

#

Description
Price

1

SHOCK-FRONT,RZRXP,PIGGYBK,LH [INCL ALL]

7044855

$748.21

1

SHOCK-FRONT,RZRXP,PIGGYBK,RH [INCL ALL]

7044856

$748.21

2

SHAFT, 0.625 CHROME NEEDLE 12.84L 0.144 BLEED X1

-------

Unavailable

3

DROOP SPACER W NEG SPRING

1800858

$44.99

4

RING, SNAP 1.750ID

1800159

$5.59

5

BALL, DETENT 3/16"

1800127

$6.39

6

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

7

O-RING BODY LOOP

1800030

$2.02

7

O-RING BODY LOOP

1800030

$2.02

8

WIPER D/TYPE

1800034

$31.99

9

NUT, CRIMP (CASTLE) 42932

1800164

$9.59

10

BUMP STOP, MCU, 2.0Dia x 1.75L (ISC 140174-N)

1800859

$77.44

11

BODY, MONOTUBE CO, 2 X 14.285L HARD CLEAR

1800860

$289.99

12

NEEDLE,1PC, PRESS IN

1800861

$59.99

13

CLICKER KNOB (BLACK)

1800418

$89.03

14

IFP PISTON ASM 1.75 W BLEED

1800739

$44.99

15

ASM. CLICKER STUD

1800758

$29.99

16

ASM. CLICKER PISTON

1800757

$79.99

17

SCREW, HEAD 11963 BTN

1800357

$3.19

18

SCREW,SET #8-32

1800700

Unavailable

19

Retaining Ring

1800862

$6.39

20

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$7.27

21

O-RING 2-226

1800863

$4.79

21

O-RING 2-226

1800863

$4.79

22

O-RING 2-324

1800184

$5.65

23

SPRING RETAINER

5633421

$69.49

24

O-RING 2-108

1800864

$4.79

25

SPRING NUT 2in ACME (CLEAR)

1800865

$39.99

26

#8-32 X 0.5 LOW HEAD SCREW

1800843

$4.79

27

EXT SHAFTLOOP .625THD 1" BRG

1800600

$195.99

28

BRIDGE-2.0"ADJ,CLR 1720001-0

1800890

$75.99

29

CAP, WIPER 2 PRESS IN (CLEAR ANODIZE)

1800794

$49.99

30

SPRING, CENTURY# 11980 DIRT

1800867

$31.99

31

JAMB NUT, 2.0IN ACME (CLEAR)

1800868

$43.99

32

2 PC PISTON ASM INTERLOCKING (WITH OUT VALVING)

1800516

$119.99

33

ASM. SEAL HEAD, 2.0, PRESS-IN, STD SEALS

1800869

$47.99

34

ASM. END CAP 2in (CLEAR)

1800755

$49.99

35

RES BODY, 2.0", 5.0L (HARD CLEAR)

1800392

$107.99

36

O-RING 2-312

1800810

$3.63

37

BEARING HFKS8T-10MM

1800809

$59.99

37

BEARING HFKS8T-10MM

1800809

$59.99

38

RING, SNAP 1.0ID

1800041

$7.27

39

5MM ID X 2MM THK. O-RING

1800891

$1.59
