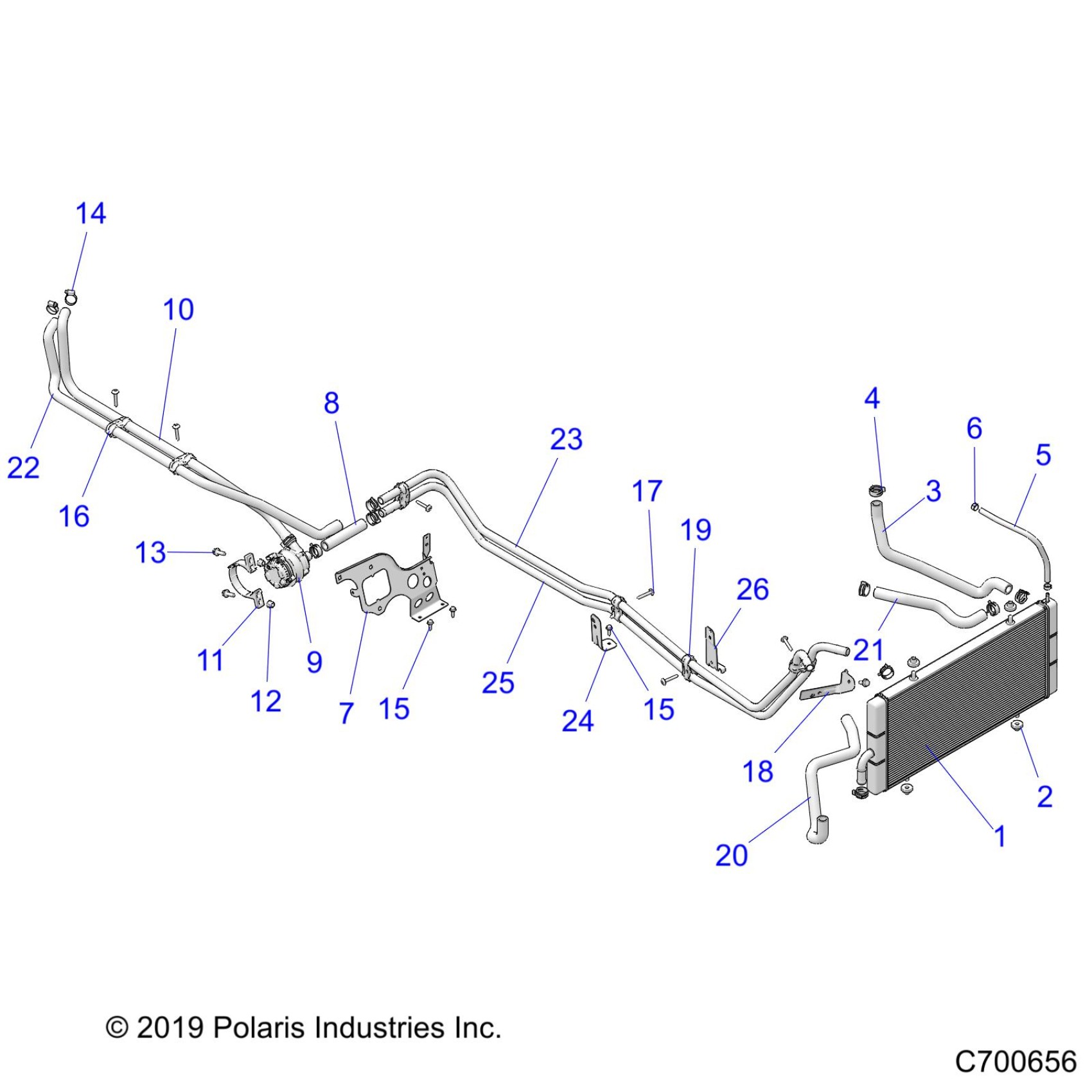

Polaris RZR XP TURBO (R03) - Z20NAE92AL/AR/BL/BR/FAL/AR/F92AL/AR ENGINE, COOLING, AUX. SYSTEM - Z20NAE92AL/AR/BL/BR/F92AL/AR (C700656) Diagram

ASM-RADIATOR,CORE [TO 06/01/20]

1241115

Unavailable

ASM-RADIATOR,CORE [FROM 06/01/20]

1241387

$475.79

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

HOSE-OUT,SURGE TANK TO LTR

5416031

$14.39

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

1/4"SAEJ2002,EPDM HOSE,31 CM

8450120-31

Unavailable

HOSE CLAMP, RED

7080003

$1.49

BRKT-MOUNT,WATER PUMP,BLK

5260110-329

$35.99

HOSE-PUMP INLET, 3/4",REAR

5415326

$11.19

ASM-PUMP,WATER,ELECTRIC

2413045

$404.79

HOSE-INTERCOOL,INLET,3/4",RR

5415324

$43.99

BRKT-MNT,WATER PUMP

5452166

$7.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

SCR-HXFL-M8X1.25X25 8.8 ZOD

7518576

$3.19

CLAMP-CONSTANT TENSION,16-27

7081415

$7.19

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

CLIP-ROUTING,0.75

5454911

$6.39

SCR-M6X1X40,TR/TX-BLK

7519001

$3.99

BRKT-COOLING TUBE

5263212

$7.19

BRACKET-COOLANT TUBE,3/4"

5451785

$4.79

HOSE-RADIATOR,3/4",UPPER

5416026

$27.99

HOSE-RADIATOR,3/4",LOWER

5416027

$14.39

HOSE-INTERCOOL,OUTLET,3/4",RR

5415325

$47.99

TUBE-COOLANT,3/4",UPPER

5140796

$71.99

BRKT-COOLANT TUBE

5260107

$8.79

TUBE-COOLANT,3/4",LOWER

5140797

$71.99

BRKT-COOLANT TUBE,ECOAT

5268164-329

$31.99
