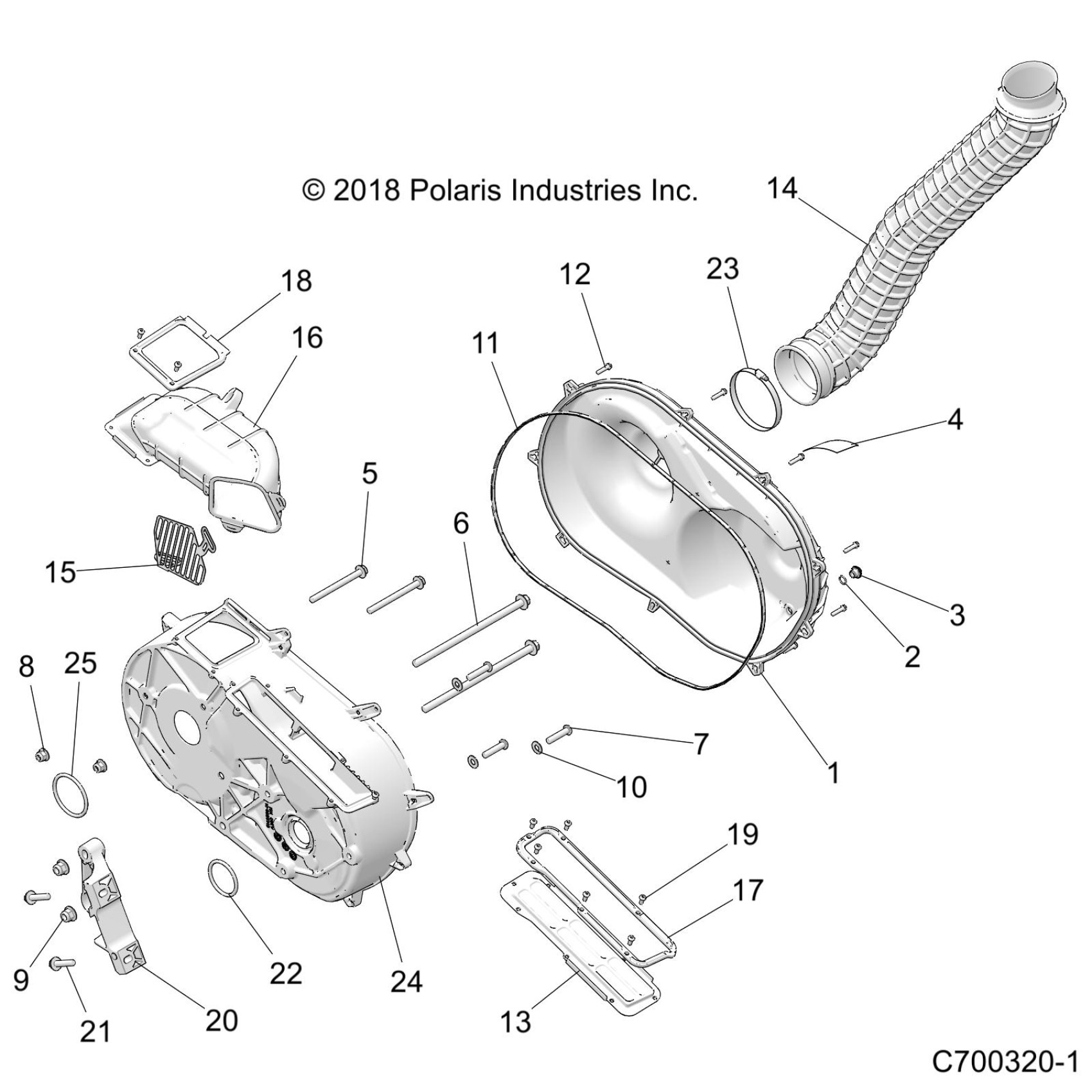

Polaris RZR XP TURBO (R03) - Z20NAE92AL/AR/BL/BR/FAL/AR/F92AL/AR DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z20NAE92AL/AR/BL/BR/F92AL/AR (C700320-1) Diagram

ASM-COVER,CLUTCH,OUTER [NCL. 2,3]

2637068

$199.99

O-RING-0.489X0.629X0.070,EPDM

5416606

$3.59

PLUG-DRAIN,9/16-18,PP

5454915

$5.59

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

SCR-HXFL-M10X1.5X115 8.8 ZY3

7518526

$3.19

SCR-M12X1.75X250 8.8 HX/FL ZOD

7518970

$23.99

SCR-TXBH-M10X1.5X45 8.8ZOD P30

7520323

$5.59

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$4.79

WSHR-10.5X22.0X1.6 SPC

7556155

$5.22

SEAL-OUTER CLUTCH COVER

5416207

$35.99

SCR-HXFLG,M6X1.0X25,10.9

7519754

$3.99

COVER-INLET

5416440

$31.99

DUCT-CLUTCH,INLET

5416743

$200.63

BRKT-SCREEN,BELT

5266524

$14.39

HOSE-CLUTCH,AIR OUTLET

5416489

$67.99

PLATE-INLET CLUTCH DUCT SEAL

5633909

$35.99

MOUNT-OUTLET DUCT

5633826

Unavailable

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

BRKT-TRANSJOINT,MAG,MACH

5139822

Unavailable

SCR-HXFL-M10X1.5X1.5 8.8 ZY3

7518531

$4.79

O-RING-2.25X2.625X.21,FKM

5416417

$13.59

CLAMP-WORM DRIVE,.44WX4.25 DIA

7080813

$3.99

COVER-CLUTCH,INNER,MACH

5142589

Unavailable

O-RING

5415647

$1.59
