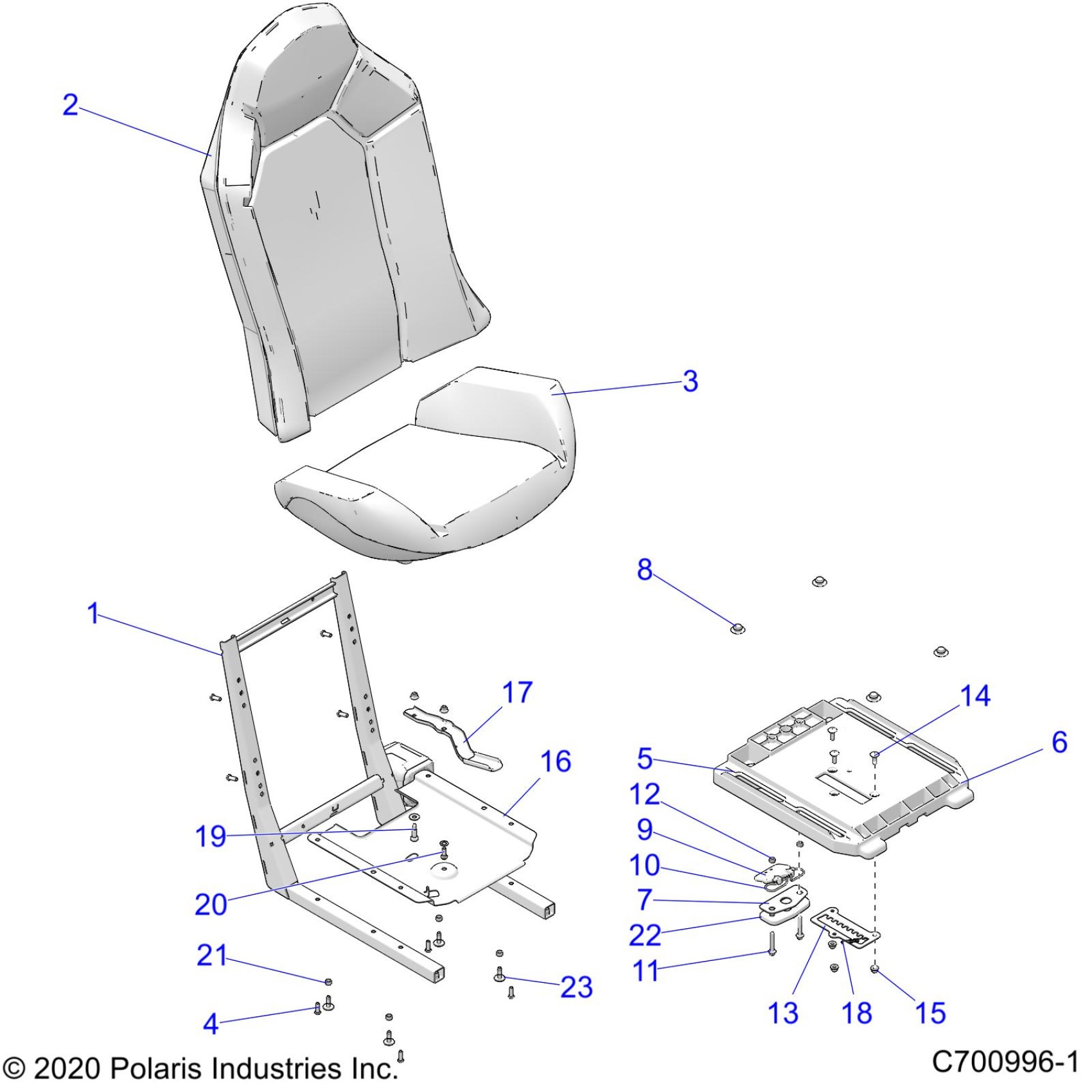

Polaris RZR XP TURBO (R03) - Z20NAE92AL/AR/BL/BR/FAL/AR/F92AL/AR BODY, SEAT ASM. AND SLIDER - Z20NAE92AL/AR/BL/BR/F92AL/AR (C700996-1) Diagram

FRAME, SEAT

1021289

$67.99

ASM-SEAT BACK,BLACK,BLK ST [E92AL][E92BL][F92AL]

2689599

$303.99

ASM-SEAT BACK,RED/BLK,BLK ST [E92AR][E92BR][F92AR]

2689611

Unavailable

ASM-SEAT BTM,BLACK,BLK ST [E92AL][E92BL][F92AL]

2689601

$235.99

ASM-SEAT BTM,RED/BLK,BLK ST [E92AR][E92BR][F92AR]

2689613

Unavailable

SCREW

7515177

$3.19

ASM., BASE, SEAT SLIDER [INCL. 6-14, QTY 6 OF 15,25]

2685704

$195.99

SEAT-BASE

5450170

$42.06

PLATE-LATCH,SEAT

5258647

$6.39

GROMMET, SEAT BASE

5413441

$3.99

HANDLE-SEAT BASE LATCH

5437121

$4.84

SPRING, LATCH, SEAT

7081466

$39.99

Screw

7517610

$1.59

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

BRACKET, SEAT SLIDER ADJUSTMENT PLATE

5257975

Unavailable

BOLT, CARRIAGE

7518994

$3.22

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

BRACKET, SEAT SLIDER MOUNTING PLATE

5261437

$59.99

BRACKET, SEAT SLIDER LEVER

5260733

$27.99

SPRING

7044099

$5.59

BOLT, SHOULDER

7518786

$2.39

BOLT, SHOULDER

7518897

$1.59

TUBE, SPACER

5340145

$4.79

LATCH, COVER PLATE, BLACK

5450510-070

$4.79

SCR-1/4-20X1-BH-TRX-GR5-Z

7519296

$1.59

WASHER-1/4 SPRING LOCK-Y

7552801

$1.59

WASHER-FL .281X.750X.062-Y

7555859

$1.49
