- RZR XP S 4 1000 ULTIMATE (R01) - Z26NMY99A4/B4/A6/B6
ENGINE, COOLING SYSTEM - Z26NMY99A4/B4/A6/B6 (C0703970)

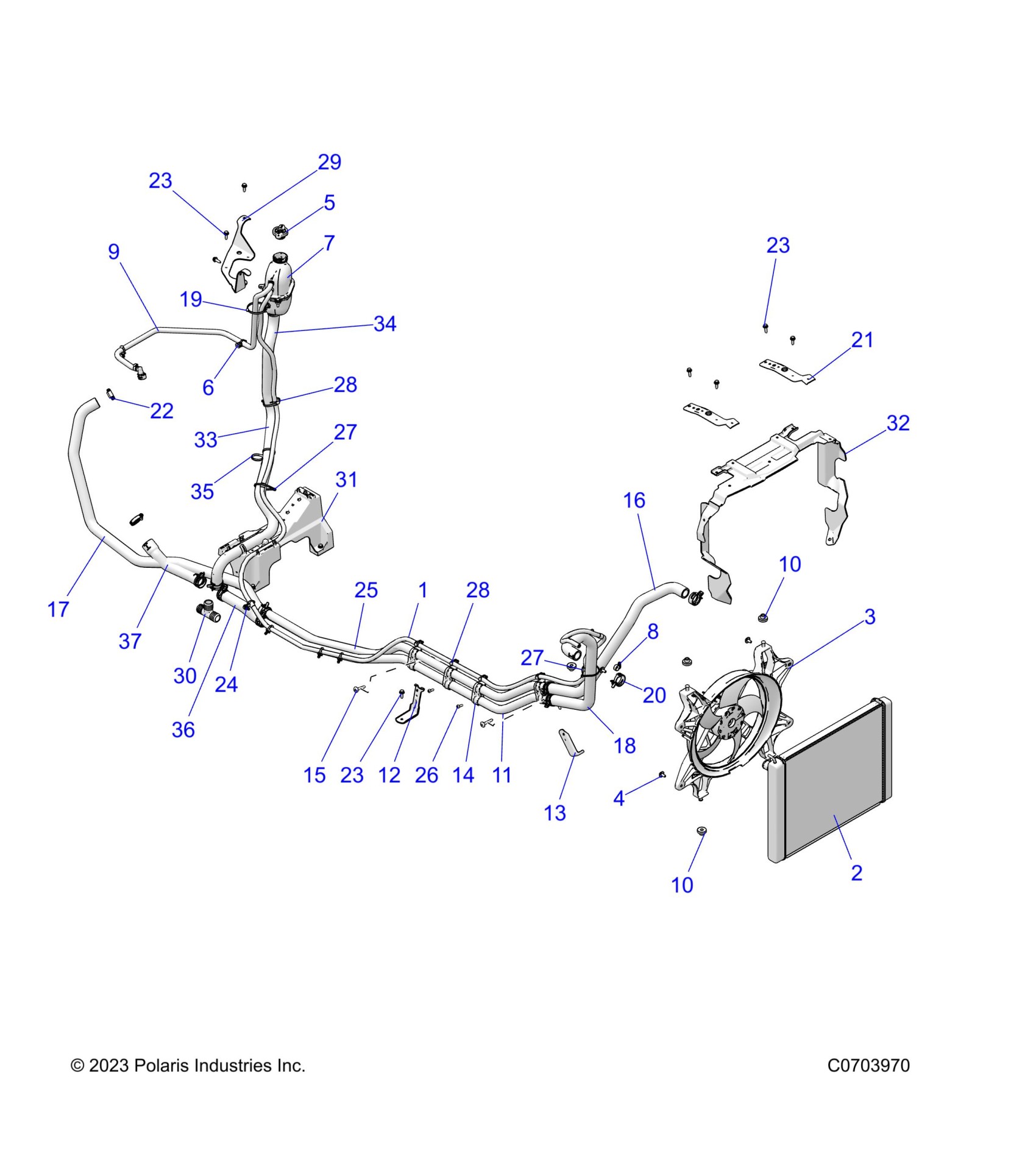

Polaris RZR XP S 4 1000 ULTIMATE (R01) - Z26NMY99A4/B4/A6/B6 ENGINE, COOLING SYSTEM - Z26NMY99A4/B4/A6/B6 (C0703970) Diagram
#
Description
Price
1
ASM-HOSE,VENT,RAD TO BTL
2522460
$51.99
2
ASM-RADIATOR,CORE
1244681
$432.89
3
FAN-RADIATOR,ASM
2416113
$239.99
4
BOLT, M6X15MM
7519585
$9.59
5
CAP-PRESSURE
1241379
$35.99
6
CLIP, EDGE, HARNESS
7081890
$10.39
7
ASM-TANK,SURGE
1244655
$91.99
8
CLAMP, HOSE, S.S.(10)
7080476
$6.39
9
ASM-VENT,COOLANT,HEAD TO BTL
1244637
$35.99
10
GROMMET-FLANGED,.36X.56X1.06
7052028
$6.39
10
GROMMET-FLANGED,.36X.56X1.06
7052028
$6.39
11
TUBE-COOLANT,1"
5141612
$62.92
12
BRACKET, COOLANT TUBE, BLACK
5259433-329
$27.99
13
BRACKET, COOLANT TUBE, BLACK
5260766-329
$27.99
14
BRACKET-COOLANT TUBE
5451221
$8.79
15
SCR-TXTH-M6X1.0X50, 8.8, ZPB
7519001
$3.99
16
HOSE-UPPER,RADIATOR
5418906
Unavailable
17
HOSE, ENGINE OUTLET, REAR
5414530
$71.99
18
HOSE-LWR,RAD,LONG
5418907
Unavailable
19
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
$5.59
20
SPRINGBAND-CLAMP,BLK
7082308
$5.59
21
BRKT-RAD UPR MNT,E-COAT
5275255-329
Unavailable
22
CLAMP-HOSE(WORM DR)25-40MM
7081192
$7.99
23
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
23
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
23
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
24
CLIP-FIR TREE,12.5MM OFF,90DEG
7082406
$3.19
25
TUBE-COOLANT,1"
5141611
$53.24
26
SCREW-#10X3/4-HI/LO-PN-T25,TRX-M
7512026
$1.49
27
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
27
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
28
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
28
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
29
BRKT-COOLANT BTL,VNT HEAD,BLK
5268906-329
$51.99
30
CONNECTOR-TEE,1",1",1" BARBED
7052373
$10.39
31
ROUTING TRAY,REAR,BLK
5459724-070
$23.99
32
SHROUD-RADIATOR,BLK
5466065-070
Unavailable
33
HOSE-COOLANT BOTTLE,RETURN
5417261
$47.99
34
CLAMP-HOSE, 17/32, GREEN
7081432
$3.99
35
CABLE-TIE,DIA6-38MM,DUAL-LOOP
7081916
$4.79
36
HOSE-ENG INLET,FRT
5417248
$23.99
37
HOSE-ENG INLET,REAR
5417249
$27.99
