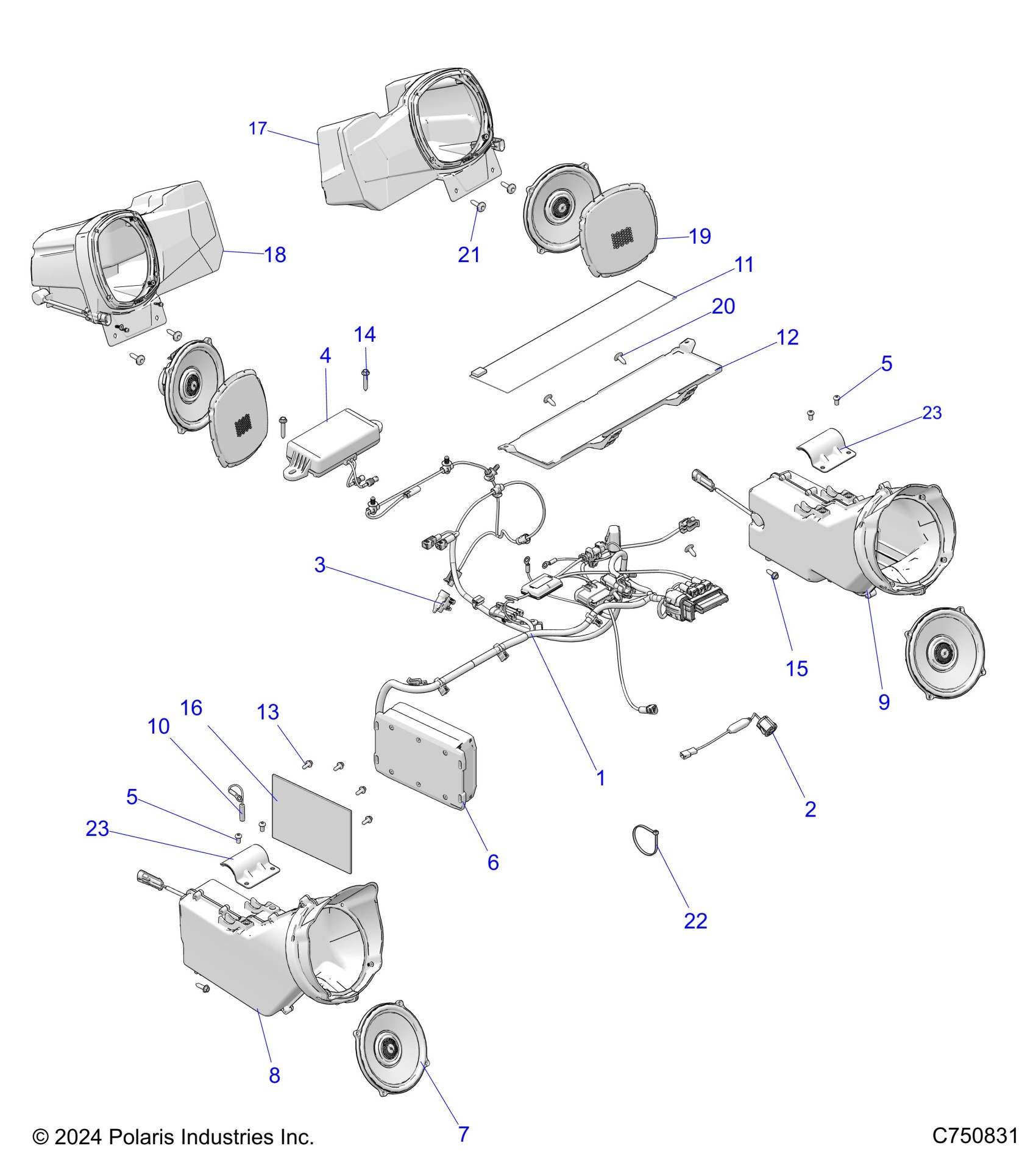

Polaris RZR XP S 4 1000 ULTIMATE (R01) - Z26NMY99A4/B4/A6/B6 ELECTRICAL, AUDIO, RIDE COMMAND - Z26NMY99A4/B4/A6/B6 (C750831) Diagram

HARN-RIDE COMMAND,CAPPED

2418311

Unavailable

CAM-IR ILLUMINATED,AMB SENSE

4081064

$187.99

SENSOR-GAUGE,AIR TEMP,PNL MNT

4018205

$55.99

ANTENNA,GPS,V2V,XP1K

4083353

Unavailable

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

ASM-AMP,4 CHANNEL [ORDER REF #16 5815485 WITH 2414533]

2414533

Unavailable

ASM-COAXIAL

2414537

$147.99

ASM-ENCL,SPKR,FRT,LH [INCL. 7]

2415281

$325.59

ASM-ENCL,SPKR,FRT,RH [INCL. 7]

2415282

$325.59

JUMPER,AMP GROUND

4018709

$12.79

ANTENNA,AM-FM

4019301

$143.99

BRKT-MOUNT,ANTENNA

5458790

$27.99

SCR-HXFL-M5X0.8X14 18-8

7516603

$10.39

SCREW-NXFL-M6X35 ZOD HILO

7519330

$3.99

SCR-HXFL-M6X20 ZOD HI LO

7520055

$5.59

SEAL-SILICONE,AMP

5815485

$9.59

ASM-ENCL,SPKR,RR,LH [INCL. 7,18]

2415283

$335.99

ASM-ENCL,SPKR,RR,RH [INCL. 7,18]

2415284

$335.99

ASM-GRILL,RR SPEAKER

2415659

$27.99

SCR-M6X1X16 TR/TX-M

7518936

$3.99

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

BRKT-CLAMP,TUBE,SPKR

5268935

$8.79

BRKT-CLAMP,TUBE,SPKR

5268935

$8.79
