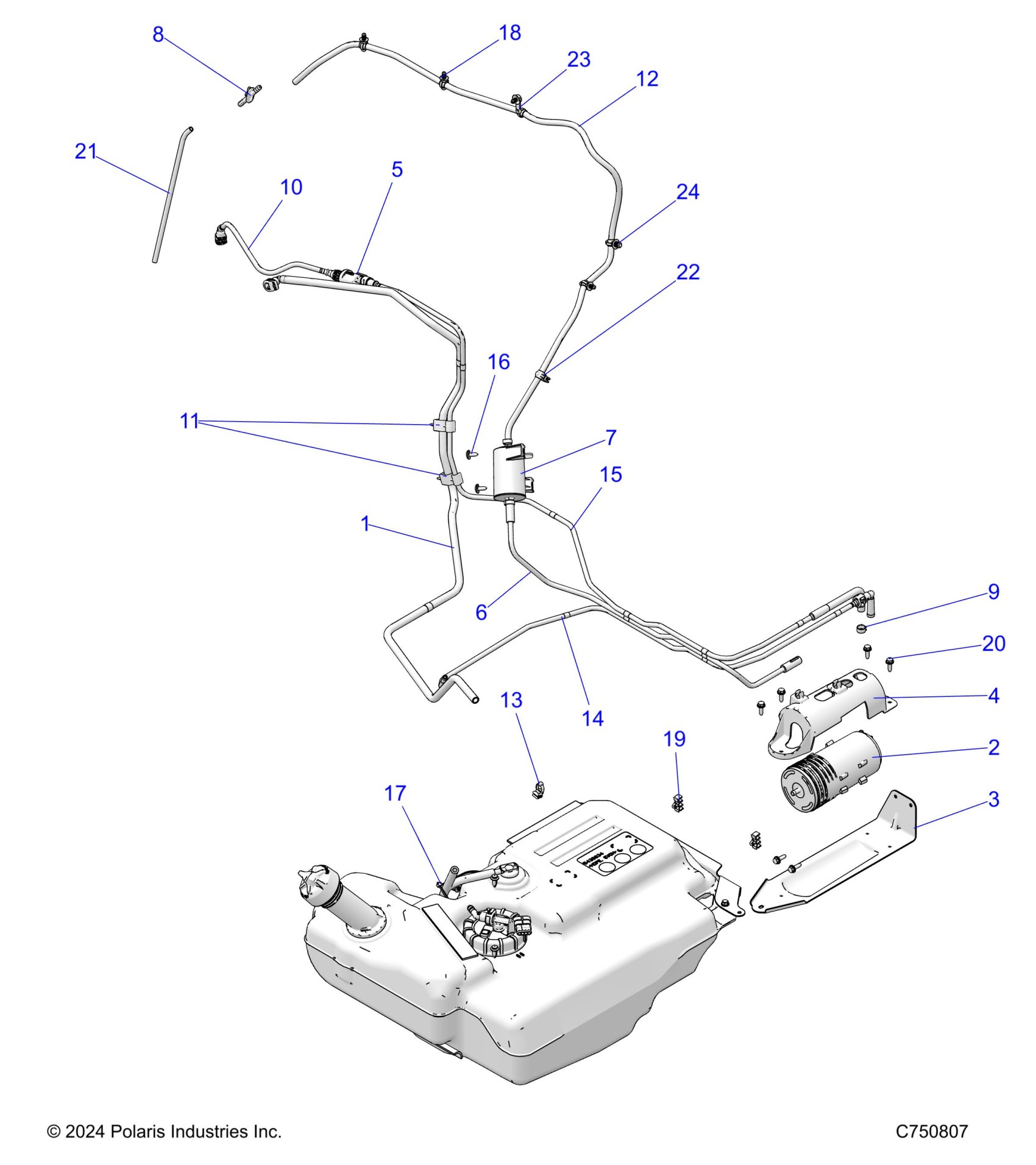

Polaris RZR XP S 4 1000 SPORT (R01) - Z26NMX99A4/A6 FUEL SYTEMS, FUEL LINES, EVAP - Z26NMX99B (C750807) Diagram

#

Description
Price

1

ASM-FUEL LINE

2522542

$95.99

2

CANISTER-ACTIVATED CARBON,BFL

2521893

$87.99

3

BRKT-MNT CANISTER,E-COAT

5269716-329

$63.99

4

BRKT-MNT CANISTER,BLK

5453458-070

$14.39

5

VALVE-PURGE,DCT MNT

2522361

$63.99

6

ASM-LINE,VENT TO CANISTER

2522478

$75.99

7

FILTER-CANISTER VENT

2521750

$55.99

8

FITTING-VENT LINE,35

5457446

$8.79

9

HOSE CLAMP, RED

7080003

$1.49

10

ASM-LINE,PURGE TO INTAKE

2522256

$39.99

11

CLIP-ROUTING

7082641

$3.19

12

ASM-VENT,FUEL

2522544

$35.99

13

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

14

ASM-LINE,TANK TO CANISTER

2522457

$91.99

15

ASM-LINE,CANISTER TO PURGE

2522255

$71.99

16

SCR-M6X1X16 TR/TX-M

7518936

$3.99

17

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

18

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

19

CLIP-TRIPLE

7082246

$6.39

20

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

21

ASM-VENT LINE,FUEL

2522400

$31.99

22

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

23

CLIP-OFFSET,FT6 FIR TREE

7082405

$3.99

24

CLIP-FIR TREE,9.7-10.0MM HOLE

7082414

$3.99
