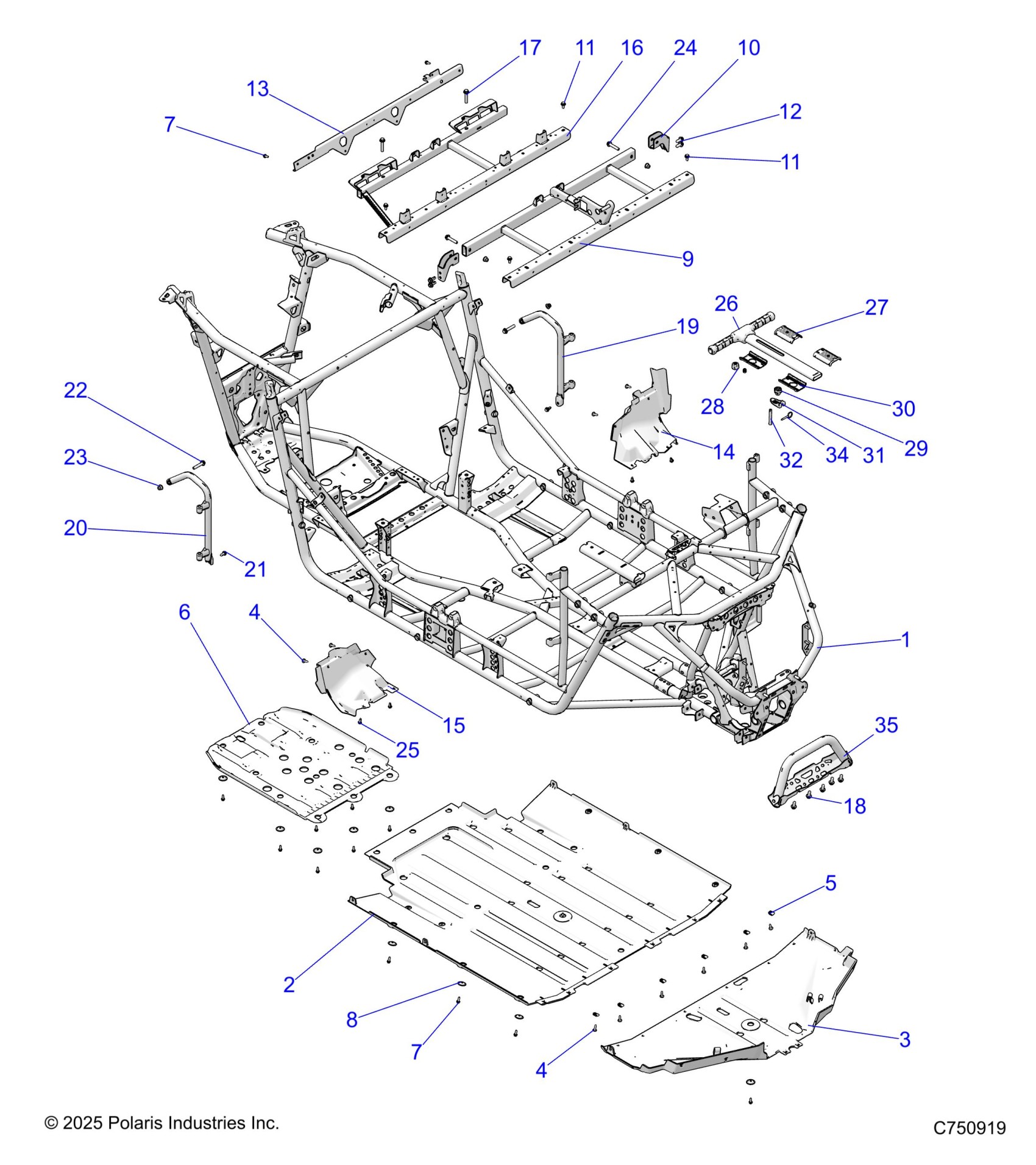

Polaris RZR XP S 4 1000 SPORT (R01) - Z26NMX99A4/A6 CHASSIS, MAIN FRAME AND SKID PLATES - Z26NMX99A4/A6 (C750919) Diagram

#

Description
Price

1

WELD-FRAME MAIN,MP,72,BLK

1028663-458

Unavailable

2

SKID PLATE-MID,MP,BLK

5466371-070

$239.99

3

PLATE-SKID,FRONT,MP,BLK

5466531-070

$103.99

4

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

4

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

5

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

6

PLATE-SKID,REAR

5466296-070

Unavailable

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

8

WASHER-SKID PLATE

7556065

$4.79

9

WELD-SEAT BASE,FRT,MP,BLK

1026957-329

$183.99

10

BRKT-SEAT SUPPORT,FRT,MP,ECOAT

1026483-329

$63.99

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

12

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$3.99

13

BRKT-CLOSE OFF SUPPORT,ECOAT

5274852-329

Unavailable

14

COVER-SCM,LH,BLK

5457593-070

$35.99

15

COVER-TANK,RH,BLK

5457594-070

$31.99

16

WELD-SEAT BASE,REAR,MP,BLK

1026958-329

$211.99

17

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.79

18

SCR-M10X1.5X25 8.8 HXFL ZOD

7519071

$4.79

19

WELD-BOLSTER,LH,REAR,BLK

1026695-458

$101.19

20

WELD-BOLSTER,RH,REAR,BLK

1026696-458

$101.19

21

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

22

SCR-HXFL-M10X1.25X55 10.9 RIE

7519956

$2.39

23

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

24

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.39

25

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

26

ASM-GRAB BAR

2637771

$83.99

27

BUSHING-GRAB BAR,UPPER

5457427

$4.79

28

NUT-GRAB BAR

5457511

$7.19

29

CAP,GRAB BAR LEVER

5457512

$4.79

30

BUSHING-GRAB BAR,LOWER

5457891

$4.79

31

LEVER,GRAB BAR

5459039

$3.19

32

ROD-GRAB BAR THREADED

7521309

$7.19

34

PIN-GRAB BAR

7663047

$7.99

35

WELD-FRT,BUMPER,BLK

1028894-458

Unavailable
