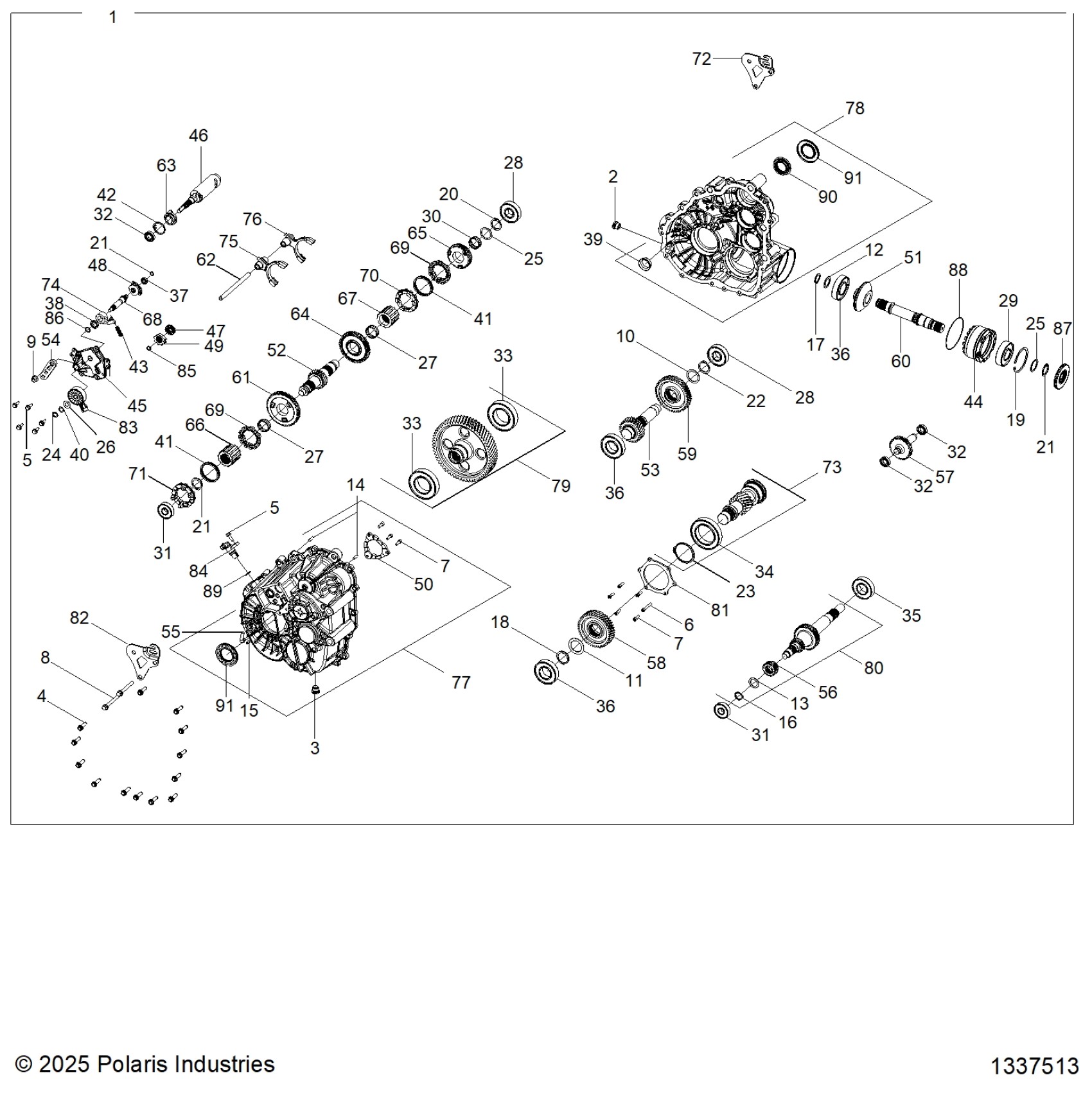

Polaris RZR XP S 1000 ULTIMATE (R01) - Z26NEY99A4/B4/A6/B6 DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z26NEY99A4/B4/A6/B6 (1337513) Diagram

#

Description
Price

1

ASM-GEARCASE,MAIN,424511

1337513

Unavailable

2

PLUG, M18 X 1.5

3234755

$27.99

3

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

5

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.19

5

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.19

6

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40

3235208

$11.19

7

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.99

7

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.99

8

SCREW HEX FLANGE M8 X 1.25 X 70

3235802

$6.15

9

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3235210

$7.99

10

WASHER-32.3X42X1.5(115288)

3235211

$10.39

11

WASHER-35.6X57X1.5(115289)

3235212

$13.59

12

WASHER 25.26 X 34 X 2

3235805

$7.03

13

WASHER 22.70 X 32.0 X 1.5

3235991

$11.43

14

PIN, DOWEL 6 X 20

3234330

$7.19

15

PIN, SPRING, SLOTTED 6 X 12

7043746

$7.19

16

RING, RETAINING BASIC EXTERNAL

7710434

$3.99

17

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

18

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.39

19

RING, RETAINING BASIC INTERNAL 72

3236619

$10.39

20

RING, RETAINING,

3234205

$11.19

21

RING, RETAINING, BASIC EXTERNAL SH-39

3239594

$7.99

21

RING, RETAINING, BASIC EXTERNAL SH-39

3239594

$7.99

21

RING, RETAINING, BASIC EXTERNAL SH-39

3239594

$7.99

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

23

RING-RETAIN,VSH-237(130298)

3235216

$10.39

24

RING-RETAINING,SHF-43

3239951

Unavailable

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

26

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

27

BEARING, NEEDLE

3233014

$43.99

27

BEARING, NEEDLE

3233014

$43.99

28

BEARING

3233020

$47.99

28

BEARING

3233020

$47.99

29

BEARING,BALL

3233589

$59.99

30

BEARING-NEEDLE,30X35X13-CAGED

3233384

$31.99

31

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.99

31

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.99

32

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.99

32

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.99

32

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.99

33

BEARING,BALL 6210 C3

3239839

Unavailable

33

BEARING,BALL 6210 C3

3239839

Unavailable

34

BRG,BALL 6012P PEER 60X95X18

3236768

$59.99

35

BEARING, BALL 62/32

3236773

$47.99

36

BEARING,BALL 6207 PEER HP C3 35X72X17

3239477

$39.99

36

BEARING,BALL 6207 PEER HP C3 35X72X17

3239477

$39.99

36

BEARING,BALL 6207 PEER HP C3 35X72X17

3239477

$39.99

37

BEARING, BALL 6800, 10 X 19 X 5

3239595

$11.99

38

BEARING, BALL 6802, 15 X 24 X 5

3239596

$11.99

39

BEARING, PLAIN FLNGD, 28 X 32 X 13.00

3239597

$15.99

40

WASHER-SPRING,210393

3235327

$9.59

41

SPRING, WAVE, 53.00 ID X 61.00 OD

3239598

$12.79

41

SPRING, WAVE, 53.00 ID X 61.00 OD

3239598

$12.79

42

SPRING, TORSION

3239599

$19.99

43

SPRING, COMPRESSION, DETENT

3239600

$12.79

44

TUBE, SNORKEL MACH

3236423

$99.99

45

COVER-SECTOR GEARS,MACH

3239981

Unavailable

46

DRUM-SHIFT,MACH

3239982

Unavailable

47

GEAR, SECTOR, 16T

3233839

$31.99

48

GEAR-SECTOR,31T

3233832

$31.99

49

STAR, DETENT

3239602

$31.99

50

PLATE, PARK 6-FACE

3239815

$35.99

51

GEAR, 19T SNORKEL

3236425

$107.99

52

SHAFT IDLER, 27T

3236424

$107.99

53

SHAFT,REVERSE 23T RC

3239835

Unavailable

54

BELLCRANK, 92 DEGREE

3235227

$23.99

55

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$9.59

56

GEAR, LOW 25T

3236132

$59.99

57

GEAR, IDLER 39T

3235986

$107.99

58

GEAR, 43T STAGE 3

3236427

$103.99

59

GEAR, 50T STAGE 2

3236690

$136.39

60

SHAFT, FRONT OUTPUT

3236703

$131.99

61

GEAR, LOW 67T

3239610

$111.99

62

RAIL, SHIFT SHAFT

3239612

$23.99

63

CAM, PARK

3239614

$143.99

64

GEAR, REVERSE 56T

3239615

$91.99

65

GEAR,HIGH 46T RC

3239836

Unavailable

66

SLEEVE, PARK

3239675

$43.99

67

SLEEVE, HIGH

3239676

$21.99

68

SHAFT-SHIFT

3239985

Unavailable

69

SHIFT DOG-HIGH/LOW

3239898

Unavailable

69

SHIFT DOG-HIGH/LOW

3239898

Unavailable

70

SHIFT DOG-REVERSE

3239899

Unavailable

71

SHIFT DOG-PARK

3239900

Unavailable

72

WELDMENT,REAR MOUNT BRACKET

3239840

Unavailable

73

SUBASSEMBLY, PINION

3239259

$339.99

74

ASM-PAWL,DETENT,ROLLER

3239902

Unavailable

75

SUBASSEMBLY, SHIFT FORK

3239620

$67.99

76

SUBASSEMBLY, SHIFT FORK

3239621

$67.99

77

SUBASSEMBLY,RH CASE

3239842

Unavailable

78

SUBASSEMBLY,LH CASE

3239841

Unavailable

79

SUBASSEMBLY,REAR OUTPUT 61T

3239843

Unavailable

80

SUBASM,INPUT 48T/22T/25T RC

3239837

Unavailable

81

COVER, BEARING CENTER DRIVE

3235823

$43.99

82

BRACKET,REAR MOUNT

3239844

Unavailable

83

SWITCH, ROTARY, 2 PIN RESISTIVE

7662468

$48.39

84

SENSOR-SPEED

4082135

$103.99

85

O-RING, -012 VITON

3233836

$6.87

86

O-RING, -014 VITON

3233828

$6.79

87

SEAL, TRIPLE LIP 30 X 75 X 8

3235824

$55.99

88

O-RING 3.609 I.D. X 0.139

3235948

$6.39

89

O-RING, -016 VITON

3236279

$7.19

90

SEAL-LGHTR LIP W/FLNGE,32X49X9

3239564

$59.99

91

SEAL-TRIPLE LIP,VITON,40X70X7

3239726

Unavailable

91

SEAL-TRIPLE LIP,VITON,40X70X7

3239726

Unavailable
