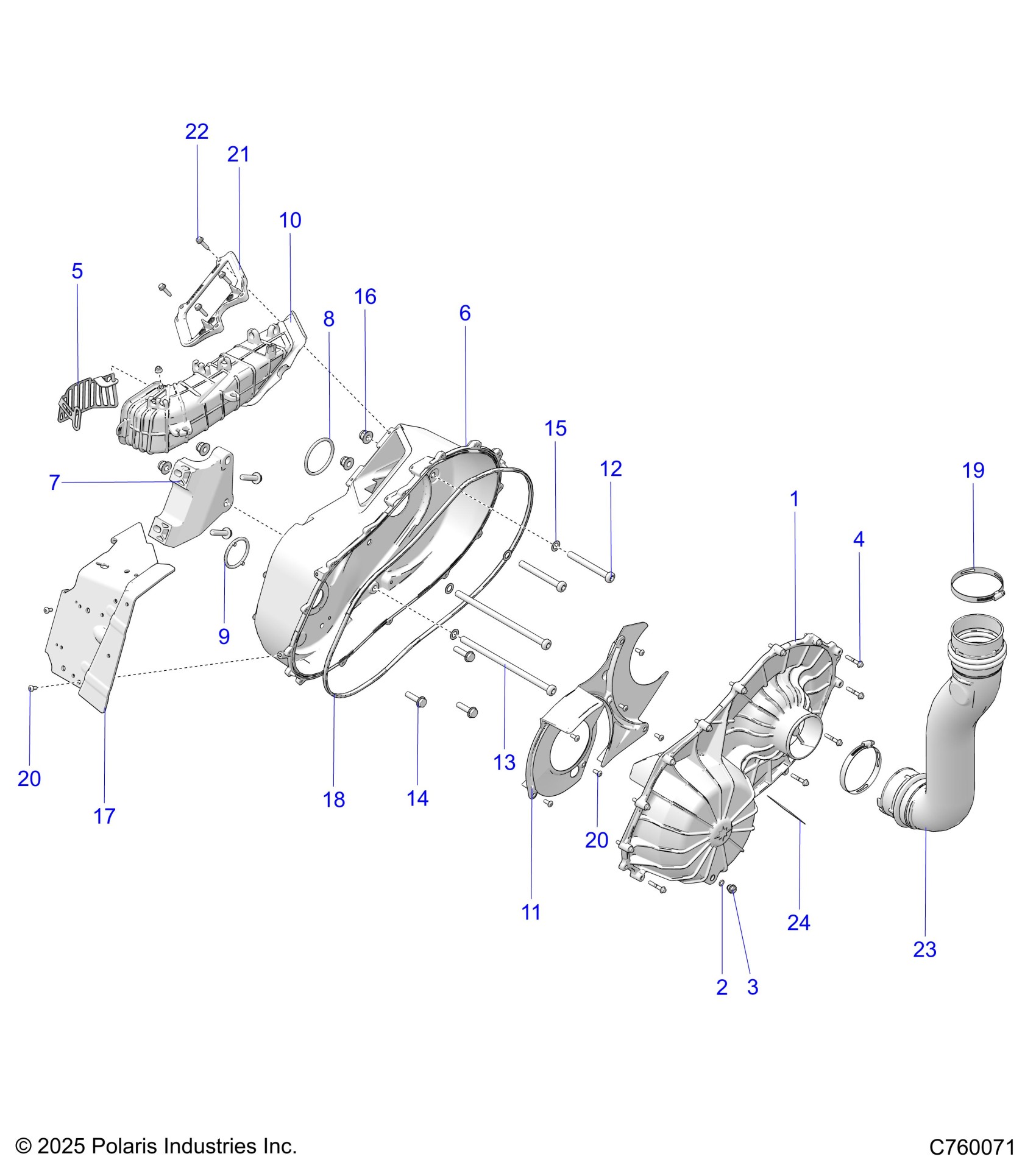

Polaris RZR XP S 1000 ULTIMATE (R01) - Z26NEY99A4/B4/A6/B6 DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z26NEY99A4/B4/A6/B6 (C760071) Diagram

ASM-COVER,CLUTCH,OUTER [INCLUDES 2-4]

2639856

$179.99

O RING-.364X.504X.07

5410542

Unavailable

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

SCR-HXFL-M6X2.0X38 SPC

7521195

$11.43

BRKT-SCREEN,BELT

1028036

$31.99

COVER-CLUTCH,INNER,MACH

5144719

$227.99

BRKT-TRANSJOINT,MAG,MACH

5144809

$47.99

O-RING-0.489X0.629X0.070,EPDM

5415647

$1.59

O-RING-2.25X2.625X.21,NBR,BARB

5417662

$8.79

DUCT-CLUTCH,OUTLET

5418437

$47.99

BAFFLE-INNER COVER

5457973

$31.99

SCR-TXBH-M12X1.75X110 8.8 SPC

7520945

$7.99

SCR-TXBH-M12X1.75X245 8.8 SPC

7520946

$13.59

SCR-HHSEMS-M10X1.5X40 10.9 SPC

7521294

$5.59

WASHER-.510X.840X.031 Y

7555919

$4.99

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$4.79

BRKT-GUARD,CLUTCH COVER

5272000

$71.99

SEAL-CLTCH CVR,SILICONE FOAM

5526344

$34.99

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

MOUNT-OUTLET DUCT

5634404

$27.99

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

ASM-DUCT,CVT,INLET

1244605

$95.99

DECAL-BELT,WARNING/CHECK

7177469

Unavailable
