Description

Price

1

Arm, Trailing, LH, Indy Red

1017465-293

$410.01

2

Arm, Trailing, RH, Indy Red

1017466-293

Unavailable

3

BEARING, SPHERICAL

3514689

$39.99

4

Bushing, Reducer

5336303

$15.99

4

Bushing, Reducer

5336303

$15.99

5

WASHER, FLAT

7556153

$1.99

6

SCREW

7519138

$9.59

7

NUT, FLANGE, NYLOK

7547334

$4.79

8

RING, RETAINER

7710437

$3.19

9

BEARING, BALL, SEALED

3514699

$39.99

9

BEARING, BALL, SEALED

3514699

$39.99

10

CARRIER, BEARING, WHEEL, LH

5137180

$203.99

11

CARRIER, BEARING, WHEEL, RH

5137181

$203.99

12

RING, RETAINING

7710440

$10.39

12

RING, RETAINING

7710440

$10.39

13

Asm., Radius Rod, Top, Indy Red

1542940-293

Unavailable

14

Asm., Radius Rod, Bottom, Indy Red

1542941-293

Unavailable

15

Plate, Rear, Bolt Brace, Indy Red

5254609-293

$95.99

16

SCREW

7519284

$3.99

16

SCREW

7519284

$3.99

17

SCREW

7519306

$5.59

18

SCREW

7519286

$7.19

18

SCREW

7519286

$7.19

19

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

19

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

19

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

19

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

19

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

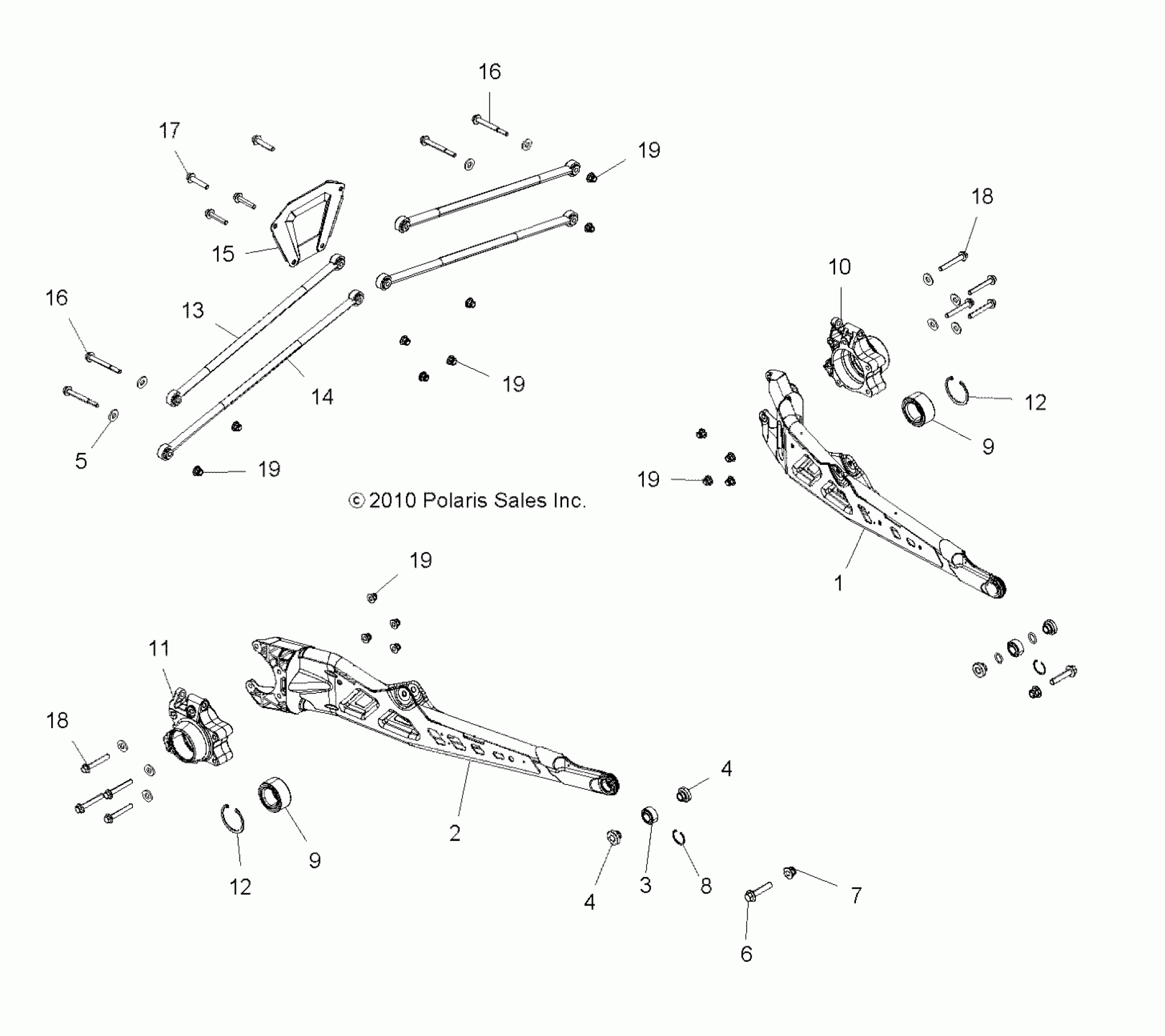

Polaris RZR XP 900 - R11JH87AA/AD SUSPENSION, REAR - R11JH87AA/AD (49RGRSUSPRR11RZR875) Diagram

Arm, Trailing, LH, Indy Red

Arm, Trailing, RH, Indy Red

BEARING, SPHERICAL

Bushing, Reducer

Bushing, Reducer

WASHER, FLAT

SCREW

NUT, FLANGE, NYLOK

RING, RETAINER

BEARING, BALL, SEALED

BEARING, BALL, SEALED

CARRIER, BEARING, WHEEL, LH

CARRIER, BEARING, WHEEL, RH

RING, RETAINING

RING, RETAINING

Asm., Radius Rod, Top, Indy Red

Asm., Radius Rod, Bottom, Indy Red

Plate, Rear, Bolt Brace, Indy Red

SCREW

SCREW

SCREW

SCREW

SCREW

NUT-HXFL M10X1.25 8 ZTB NYL

NUT-HXFL M10X1.25 8 ZTB NYL

NUT-HXFL M10X1.25 8 ZTB NYL

NUT-HXFL M10X1.25 8 ZTB NYL

NUT-HXFL M10X1.25 8 ZTB NYL
