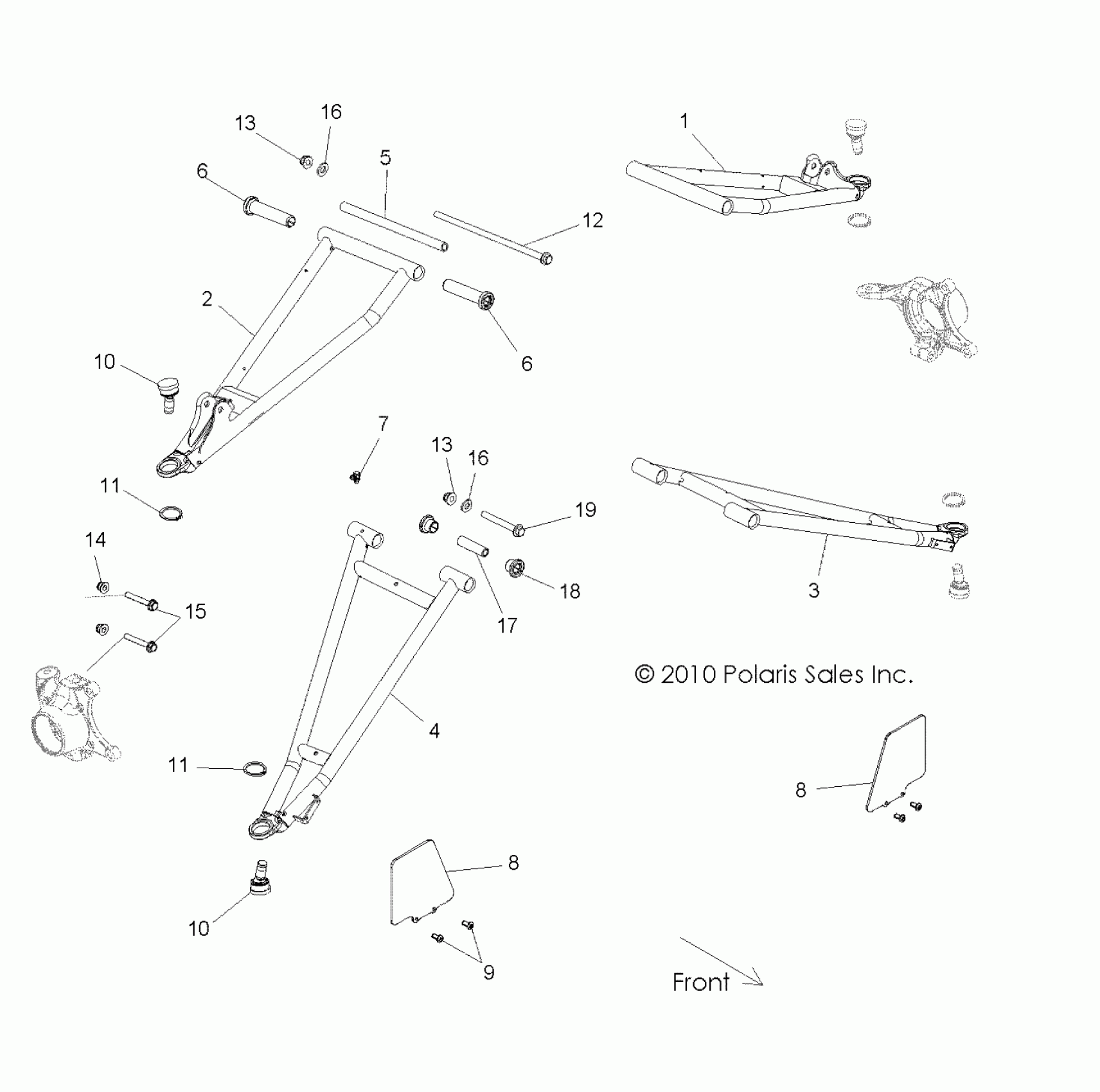

Polaris RZR XP 900 - R11JH87AA/AD SUSPENSION, FRONT CONTROL ARMS - R11JH87AA/AD (49RGRSUSPFRT11RZR875) Diagram

Arm, Control, Upper, Front, Indy Red, LH

1018199-293

$180.39

Arm, Control, Upper, Front, Indy Red, RH

1018200-293

$180.39

Arm, Control, Lower, Front, Indy Red, LH

1018201-293

Unavailable

Arm, Control, Lower, Front, Indy Red, RH

1018202-293

Unavailable

TUBE, PIVOT

5137104

Unavailable

BUSHING, A-ARM, LONG

5436973

$5.19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

BUSHING, A-ARM, LONG

5436973

$5.19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

FITTING, ZERK

7080510

$5.59

Shield, CV, Front, LH, Black

5438404-070

$6.99

Shield, CV, Front, RH, Black

5438405-070

Unavailable

Shield, CV, Front, LH, Black

5438404-070

$6.99

Shield, CV, Front, RH, Black

5438405-070

Unavailable

Screw

7512084

$1.49

Joint, Ball

7081666

$73.35

Joint, Ball

7081666

$73.35

RING, RETAINING

7710533

$2.39

RING, RETAINING

7710533

$2.39

SCREW, FLANGED

7519087

$13.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT, NYLOK

7547405

$1.49

SCREW, FLANGE

7516733

$6.39

WASHER

7556153

$1.99

WASHER

7556153

$1.99

TUBE, PIVOT

5136100

$15.99

Bushing, Control Arm

5436832

$2.38

SCREW

7519043

$9.59
