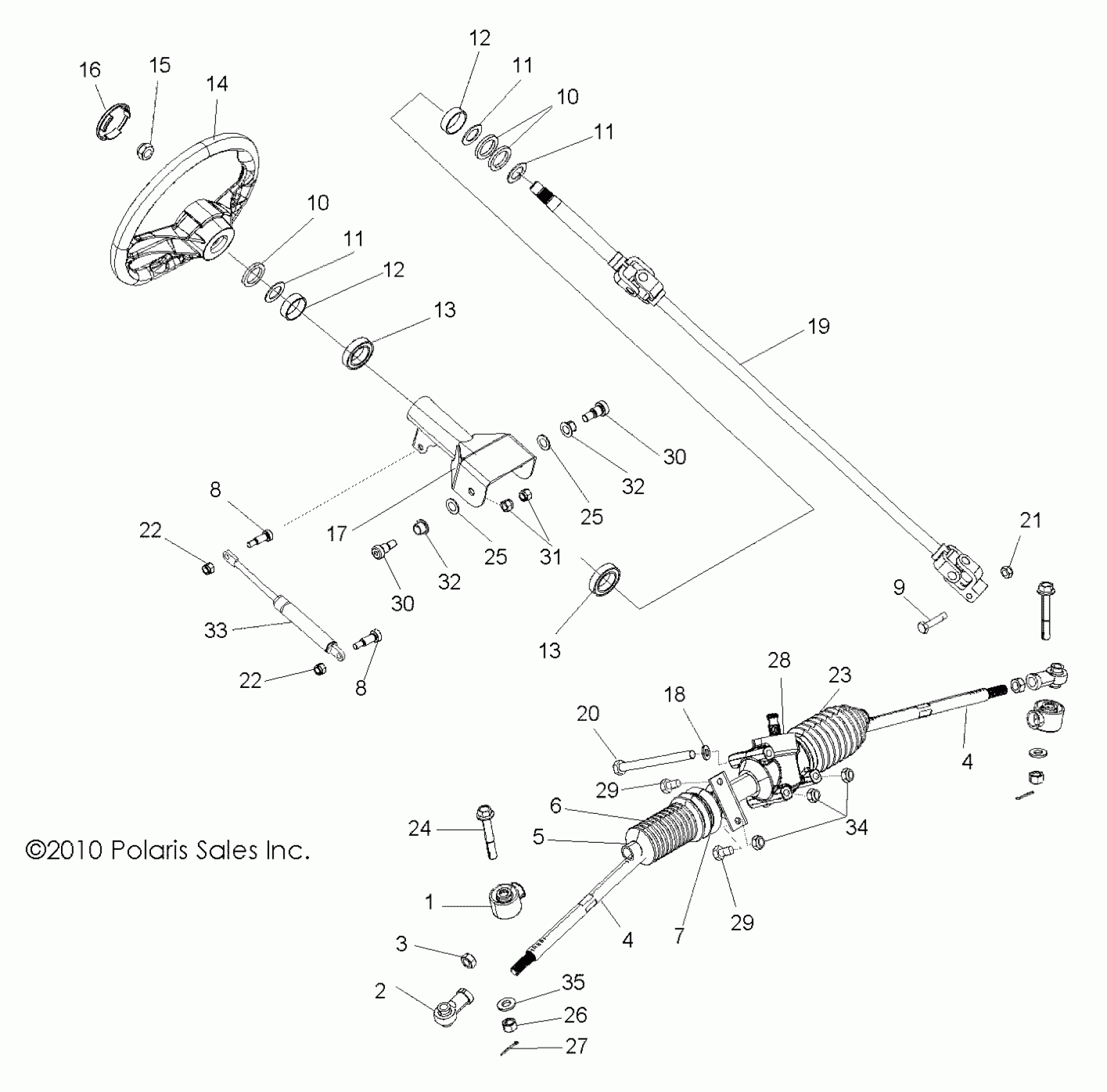

Polaris RZR XP 900 - R11JH87AA/AD STEERING, STEERING ASM. - R11JH87AA/AD (49RGRSTEERING11RZR875) Diagram

#

Description
Price

1

Boot, Seal, Rod End

5411920

$11.32

2

Rod End

7061054

$56.65

3

Nut, Jam, LH

7547028

$2.38

4

TIE ROD, INNER

----

Unavailable

4

TIE ROD, INNER

----

Unavailable

5

CLAMP, BOOT, SMALL

----

Unavailable

6

BOOT, PASSENGER, SIDE RACK

----

Unavailable

7

CLAMP, BOOT, LARGE

----

Unavailable

8

BOLT, SHOULDER

7518786

$2.38

8

BOLT, SHOULDER

7518786

$2.38

9

SCREW

7518644

$4.76

10

WASHER-NEOPREME,28 OD X 20 ID

7556482

$3.97

10

WASHER-NEOPREME,28 OD X 20 ID

7556482

$3.97

11

WASHER

7556483

$3.97

11

WASHER

7556483

$3.97

11

WASHER

7556483

$3.97

12

SPACER-STEERING SHAFT

5252796

$4.76

12

SPACER-STEERING SHAFT

5252796

$4.76

13

BEARING-STEERING

3514686

$9.52

13

BEARING-STEERING

3514686

$9.52

14

WHEEL-STEERING, 14"

1823623

$133.56

15

NUT

7547506

$4.99

16

CAP-STEERING WHEEL

5436536

$32.37

17

ASM., TUBE, PIVOT, BLACK [INCL. 13]

1017621

$169.99

18

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

19

Shaft, Steering, Upper/Lower

1823779

Unavailable

20

BOLT [LOCK PATCH]

7518935

$1.59

21

NUT, NYLOK

7547385

$1.19

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

23

Boot, Driver Side, Rack

----

Unavailable

24

Bolt

7517909

$5.56

25

WASHER

7555919

$4.99

25

WASHER

7555919

$4.99

26

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

27

Pin, Cotter

7661203

$1.19

28

Asm., Gear Box, Steering [Incl. 1-7,23]

1823706

$699.99

29

BOLT

7518702

$3.97

29

BOLT

7518702

$3.97

30

BOLT, SHOULDER

7517607

$5.56

30

BOLT, SHOULDER

7517607

$5.56

31

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.19

32

BUSHING-PEDAL PIVOT

5431107

$8.73

32

BUSHING-PEDAL PIVOT

5431107

$8.73

33

Asm., Shock, Oil Locking

7043523

$109.24

34

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

35

Washer, Flat

7556099

$1.59
