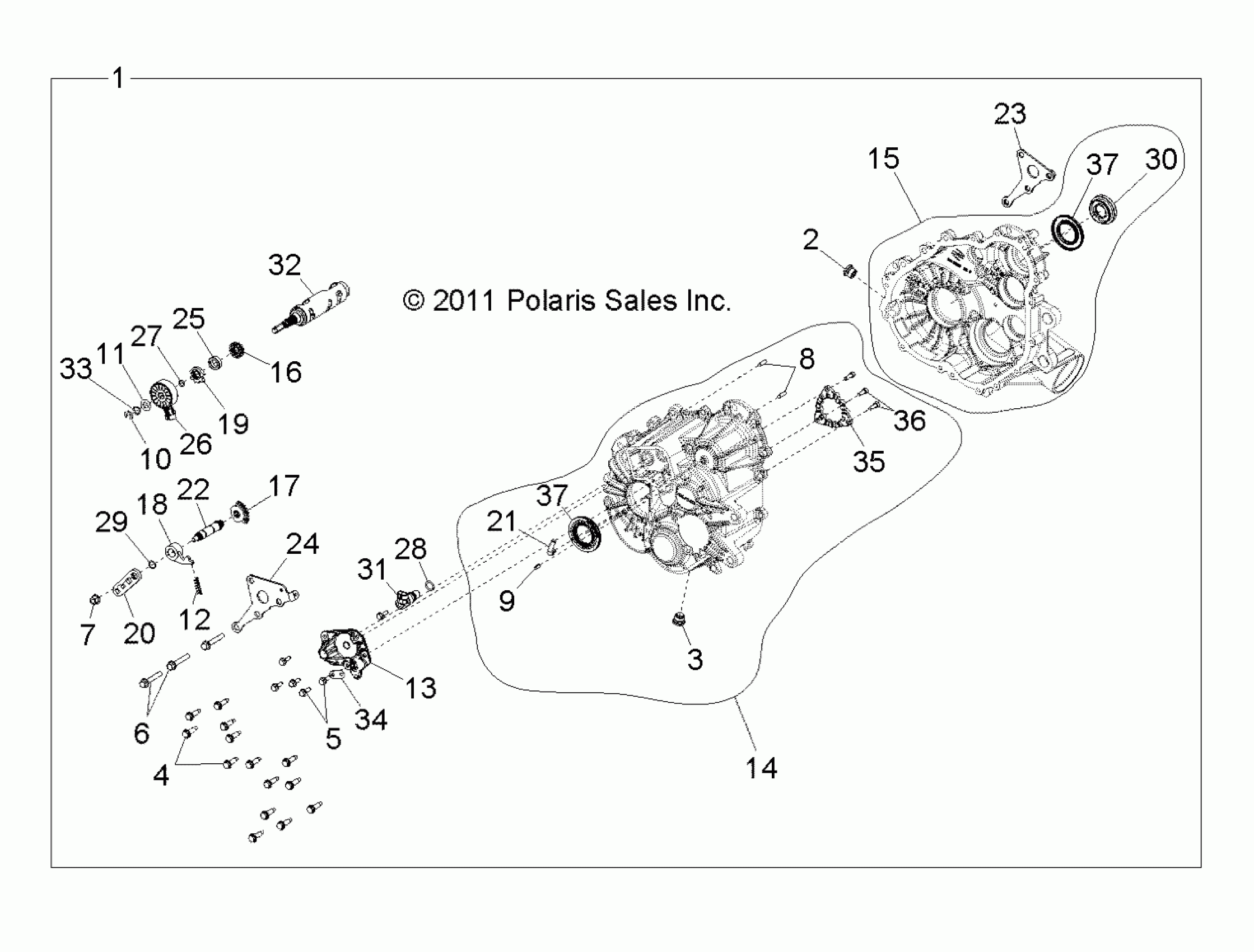

Polaris RZR XP 900 - R11JH87AA/AD DRIVE TRAIN, MAIN GEARCASE - R11JH87AA/AD (49RGRTRANS1332823) Diagram

#

Description
Price

1

Asm., Gearcase [Incl. All]

1332823

Unavailable

2

PLUG, M18 X 1.5

3234755

$27.99

3

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

5

SCREW

3235206

$7.19

6

SCREW

3235207

$10.39

7

NUT

3235210

$7.99

8

PIN, DOWEL 6 X 20

3234330

$7.19

9

PIN, SPRING, SLOTTED

7043746

$7.19

10

RING, RETAINING

3233834

$10.39

11

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

12

SPRING, COMPRESSION, DETENT

3234578

$12.79

13

SUBASM., SECTOR COVER W/PINS

3234188

$107.99

14

Subasm., Case, RH

3235334

$424.99

15

Subasm., Case, LH

3235333

$829.99

16

GEAR, 16T

3233839

$31.99

17

GEAR-SECTOR,31T

3233832

$31.99

18

Pawl, Detent

3233829

$31.99

19

Star, Detent

3233909

$23.99

20

BELLCRANK

3235227

$23.99

21

TUBE, VENT

3234230

$9.59

22

SHAFT-SHIFT(352973)

3235238

$37.61

23

BRACKET, MOUNT, REAR

3235239

$39.99

24

BRACKET, MOUNT, REAR

3235351

$47.99

25

SPACER

3235243

$9.59

26

PIN, GEAR POSITION SWITCH

7661999

$111.99

27

O-RING

3233076

$6.39

28

O-RING

3234302

$7.19

29

O-RING

3233869

$5.59

30

SEAL

3234851

$35.99

31

SENSOR-SPEED,TRANS

4013908

Unavailable

32

Drum, Shift

3235220

$115.08

33

WASHER, SPRING

3235327

$9.59

34

BRACKET, MOUNT

3235350

$8.79

35

Plate, Park, 12 Face

3235221

Unavailable

36

SCREW

3235332

$3.99

37

SEAL, TRIPLE LIP

3235052

$31.99

37

SEAL, TRIPLE LIP

3235052

$31.99
