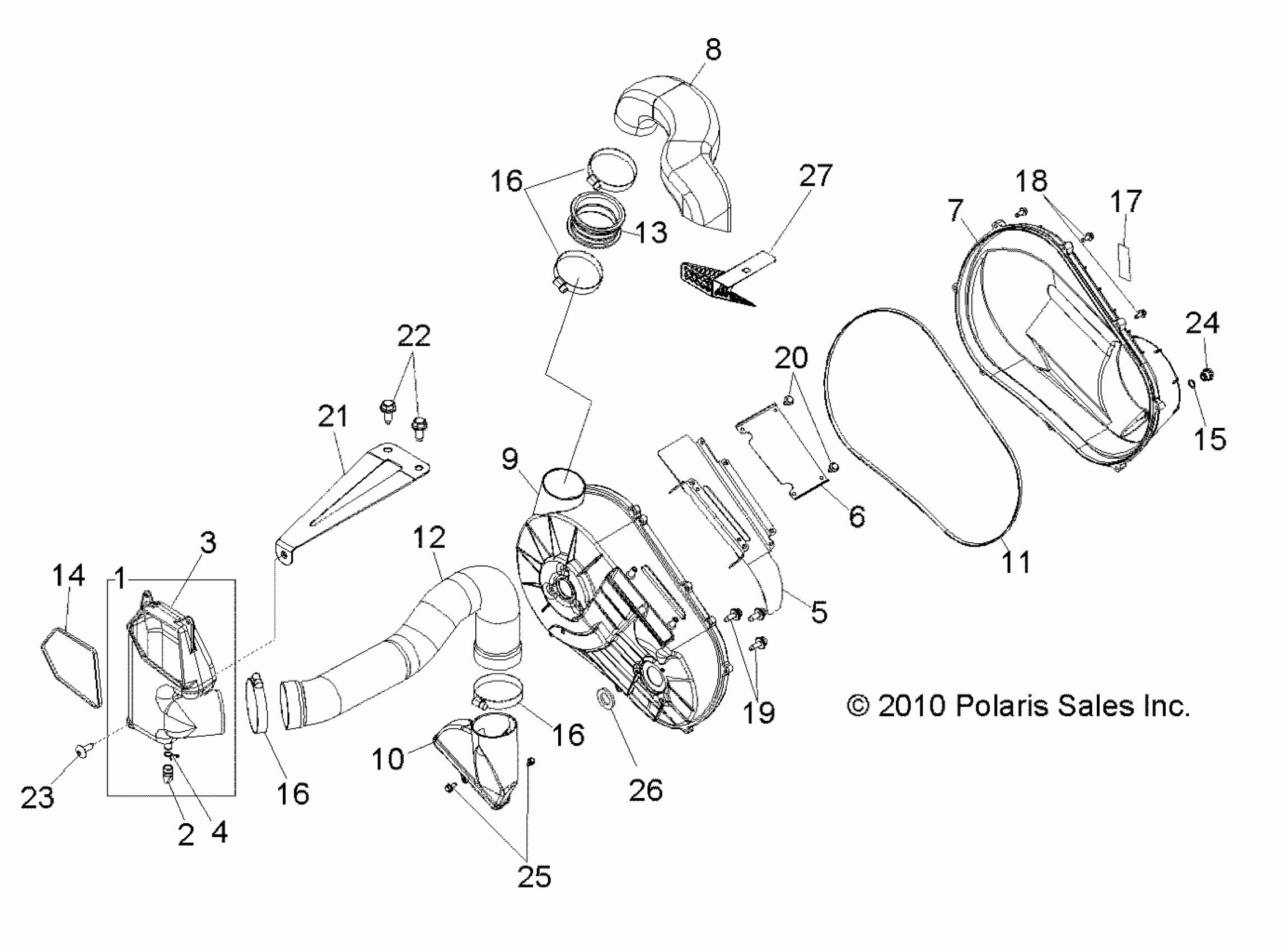

Polaris RZR XP 900 - R11JH87AA/AD DRIVE TRAIN, CLUTCH COVER and DUCTING - R11JH87AA/AD (49RGRCLUTCHCVR11RZR875) Diagram

#

Description
Price

1

ASM., INTAKE, CLUTCH [INCL. 2-4]

1240635

$52.60

2

Cap, Drain

5412960

$15.19

3

BOX, INTAKE, CLUTCH

5438705

Unavailable

4

CLAMP, HOSE

7081488

$6.39

5

Plate, Guard, Clutch Cover

5254668

Unavailable

6

Plate, Top, Guard

5254669

$15.67

7

ASM., COVER, CLUTCH, OUTER [INCL. 15,17,24]

2634160

$119.99

8

DUCT, CLUTCH, AIR OUTLET

5438326

$127.99

9

COVER, CLUTCH, INNER

5438327

$143.99

10

DUCT, CLUTCH, AIR INLET

5438951

$59.99

11

SEAL, OUTER, CLUTCH COVER

5521738

$42.46

12

HOSE, INTAKE, CLUTCH

5813638

$127.99

13

BOOT, INTAKE, CLUTCH

5813639

$10.39

14

Seal, Intake, Foam

5813673

$32.37

15

O RING-.364X.504X.07

5410542

Unavailable

16

CLAMP, WORM DRIVE

7081626

$7.99

16

CLAMP, WORM DRIVE

7081626

$7.99

16

CLAMP, WORM DRIVE

7081626

$7.99

17

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

18

SCREW

7512094

$1.59

19

ASM., BOLT/WASHER

7519278

$4.79

20

Rivet

7661855

$1.49

21

BRACKET, INTAKE BOX

5254859

Unavailable

22

BOLT

7518555

$2.39

23

SCREW

TBD

Unavailable

24

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

25

Screw

7512095

$4.79

26

SEAL-COVER,PTO

5813708

$23.99

27

BRACKET, SCREEN, BELT

5254860

$47.99
