Partiron

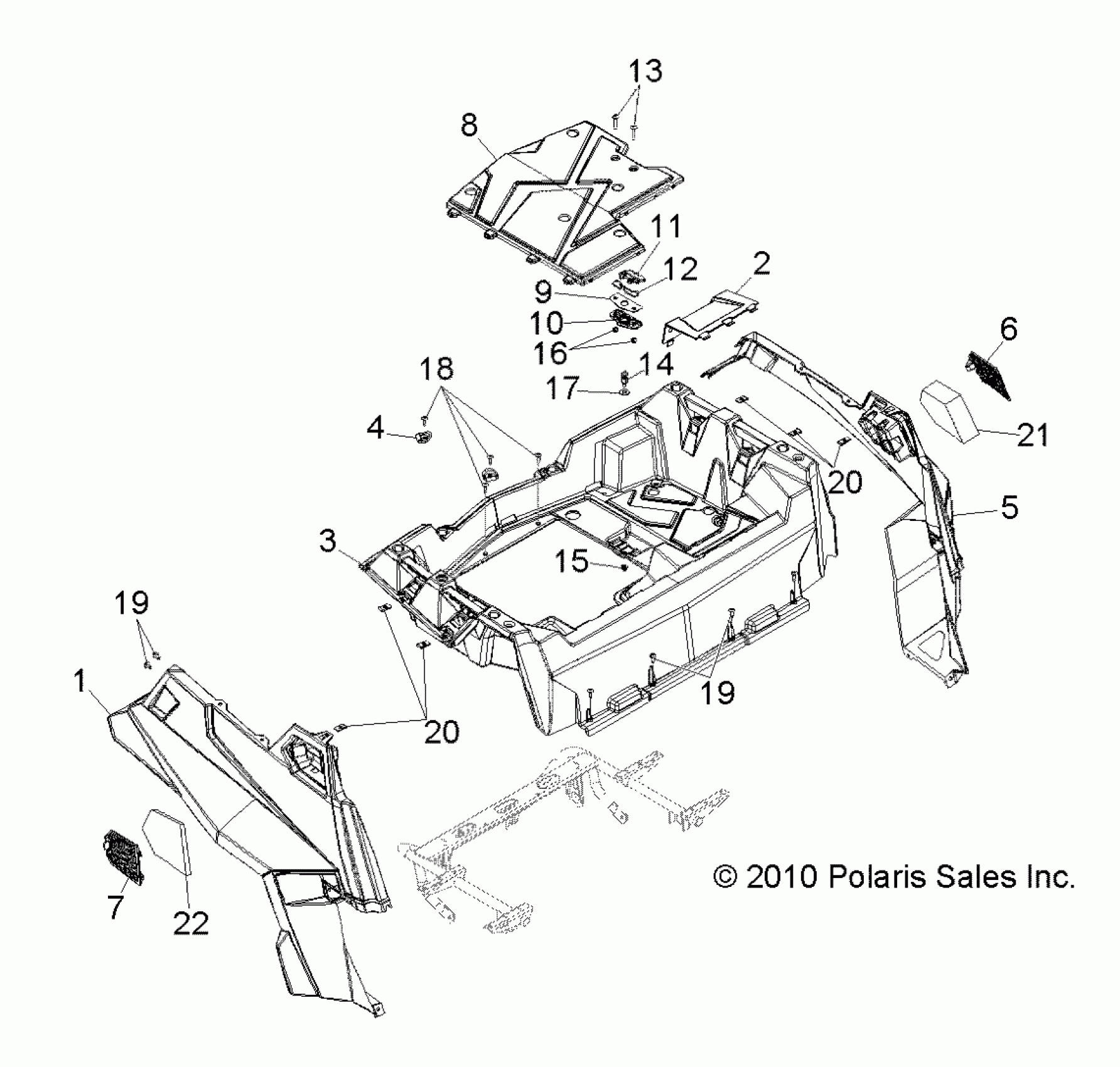

Polaris RZR XP 900 - R11JH87AA/AD BODY, REAR RACK and FENDERS - R11JH87AA/AD (49RGRRACKMTG11RZR875) Diagram

#

Description
Price

1

PANEL, FLAIR, BOX SIDE, RH, BLACK

5438732-070

$199.99

2

LID, MAINT, BOX, REAR

5438733-070

$47.99

3

Asm., Box, Main, Rear, Black [Incl. Warning Decals]

2634003-070

Unavailable

4

RING, TIEDOWN

7081195

$11.19

5

PANEL, FLAIR, BOX SIDE, LH, BLACK

5438729-070

$199.99

6

GRILL, INTAKE COVER, LH, BLACK

5438798-070

$27.99

7

GRILL, INTAKE COVER, RH, BLACK

5438799-070

Unavailable

8

BOX, MAINT. PANEL, REMOVABLE, BLACK

5438409-070

$104.49

9

PLATE, LATCH, SEAT

5251162

Unavailable

10

CAP-LATCH,SEAT

5437120

$7.99

11

HANDLE-SEAT BASE LATCH

5437121

$4.84

12

SPRING, LATCH, SEAT

7081466

$39.99

13

SCREW

7519001

$3.99

14

PLUNGER, BOS, LATCH

5137680

$13.59

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

16

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

17

WASHER, FLAT

7556216

$4.79

18

SCREW

7517685

$1.59

19

Screw

7518280

$1.49

19

Screw

7518280

$1.49

20

NUT, U TYPE SPEED

7670057

$1.49

20

NUT, U TYPE SPEED

7670057

$1.49

21

FILTER, FOAM, INLET

5813640

$19.99

22

FILTER, FOAM, INLET

5813675

$8.79
