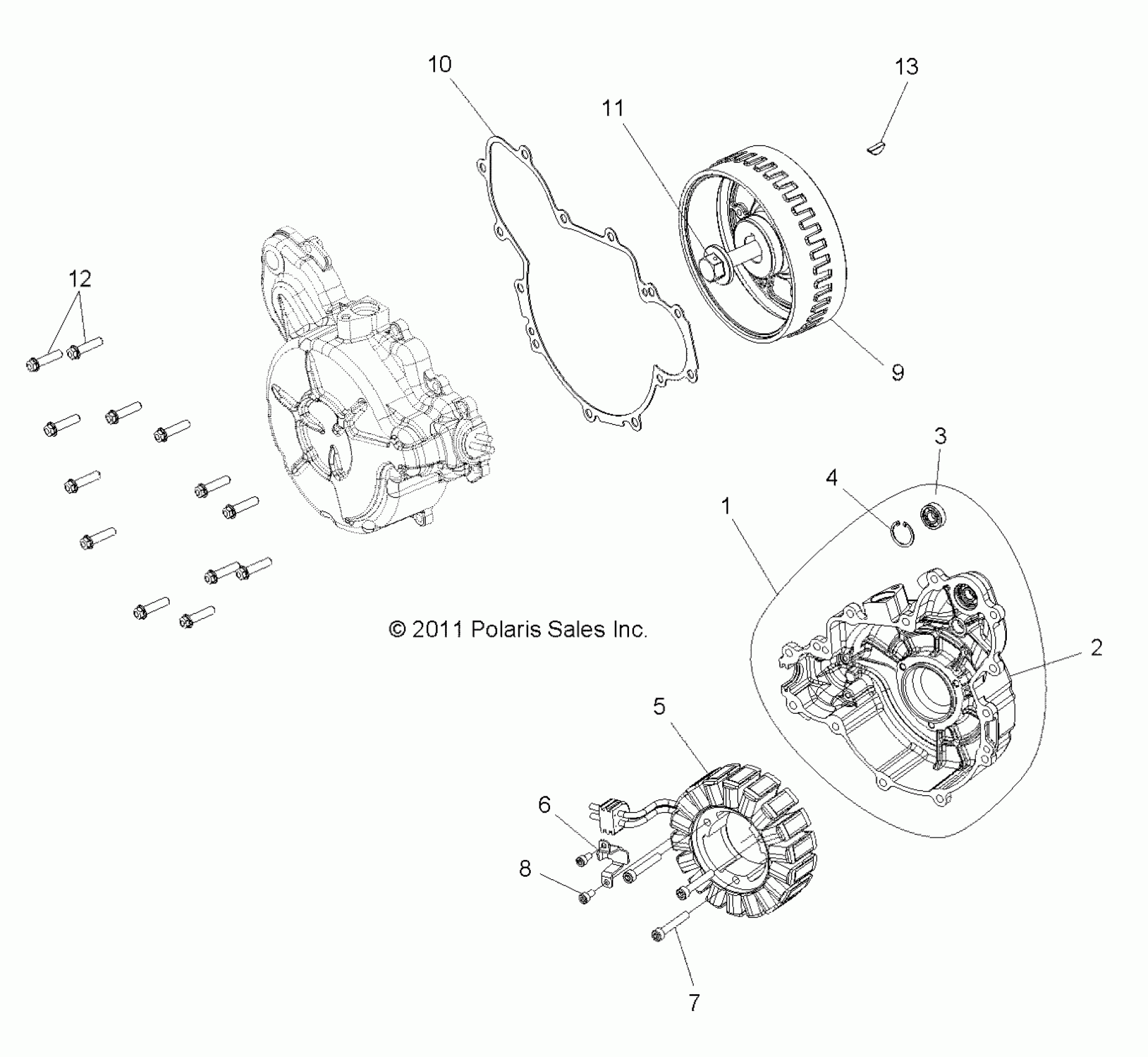

Polaris RZR XP 900 EFI - R13JT87AD/AL/9EAK/EAL/EAO/EAT/EAW/EAP ENGINE, STATOR and COVER - R13JT87AD/AL/9EAK/EAL/EAO/EAT/EAW/EAP (49RGRMAGNETOCVR12RZRXP900) Diagram

#

Description
Price

1

ASM., IGNITION COVER, STARTER BEARING [INCL. 2-4]

1204518

$169.43

2

COVER, STATOR

5137668

$169.43

3

BEARING, BALL

3514717

$8.73

4

RING, SNAP

7710654

$23.81

5

STATOR

4013970

$327.74

6

BRACKET, RETAINER, WIRE

5255473

$7.27

7

SCREW

7510005

$5.70

8

SCREW

7517847

$3.17

9

FLYWHEEL

4013969

$617.49

10

GASKET, IGNITION COVER

5813758

$40.46

11

SCREW

7519170

$23.81

12

SCREW

7519297

$3.97

13

KEY-WOODRUFF,4X5

7721122

$7.84
