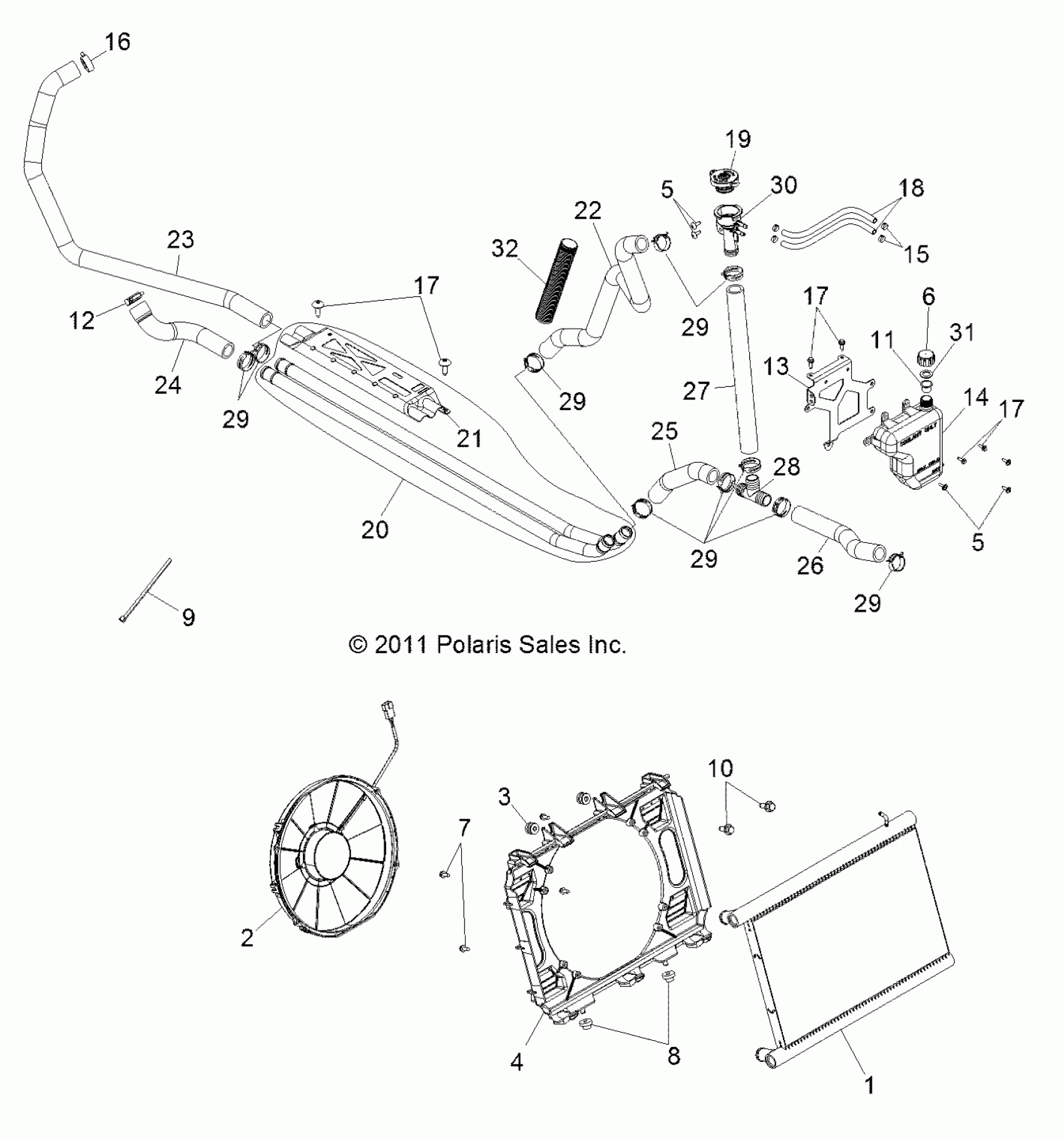

Polaris RZR XP 900 EFI - R13JT87AD/AL/9EAK/EAL/EAO/EAT/EAW/EAP ENGINE, COOLING SYSTEM - R13JT87AD/AL/9EAK/EAL/EAO/EAT/EAW/EAP (49RGRCOOL12RZRXP900) Diagram

#

Description
Price

1

ASM., RADIATOR, CORE

1240552

Unavailable

2

FAN

2411807

$251.99

3

ASM., GROMMET AND INSERT

5413509

$15.99

4

SHROUD, FAN

5438591

$67.99

5

Screw

7512084

$1.49

5

Screw

7512084

$1.49

6

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

7

Screw

7512095

$4.79

8

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

9

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

10

SCREW

7519342

$1.86

11

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

12

CLAMP-HOSE, 1.750-SS

7080560

$11.19

13

BRACKET, MOUNT, COOLANT FILL

5255187

Unavailable

14

TANK, SURGE

5439004

Unavailable

15

HOSE CLAMP, RED

7080003

$1.49

16

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

17

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

17

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

17

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

18

LINE, FUEL

8450120-66

Unavailable

19

CAP-PRESSURE

1240300

$40.46

20

ASM., COOLANT TUB [INCL. 21]

1240648

$263.99

21

Bracket, Fuel Tank Mount, Center, Black

5254161-329

$39.99

22

HOSE, UPPER, RADIATOR

5414230

$87.99

23

HOSE, ENGINE OUTLET, REAR

5414232

$71.99

24

HOSE, ENGINE INLET, REAR

5414231

$39.99

25

HOSE, LOWER, RADIATOR, SHORT

5414233

$39.99

26

HOSE, LOWER, RADIATOR, LONG

5414234

$43.99

27

HOSE, LOWER, RADIATOR, FILL

5414235

$47.99

28

CONNECTOR, TEE

7052373

$10.39

29

CLAMP, SPRINGBAND

7080844

$10.39

29

CLAMP, SPRINGBAND

7080844

$10.39

29

CLAMP, SPRINGBAND

7080844

$10.39

29

CLAMP, SPRINGBAND

7080844

$10.39

29

CLAMP, SPRINGBAND

7080844

$10.39

30

FILLER, REMOTE, COOLANT

5439079

$27.99

31

GASKET-OVERFLOW CAP

5810279

$2.41

32

CONDUIT, FLEX

5521287-18

Unavailable
