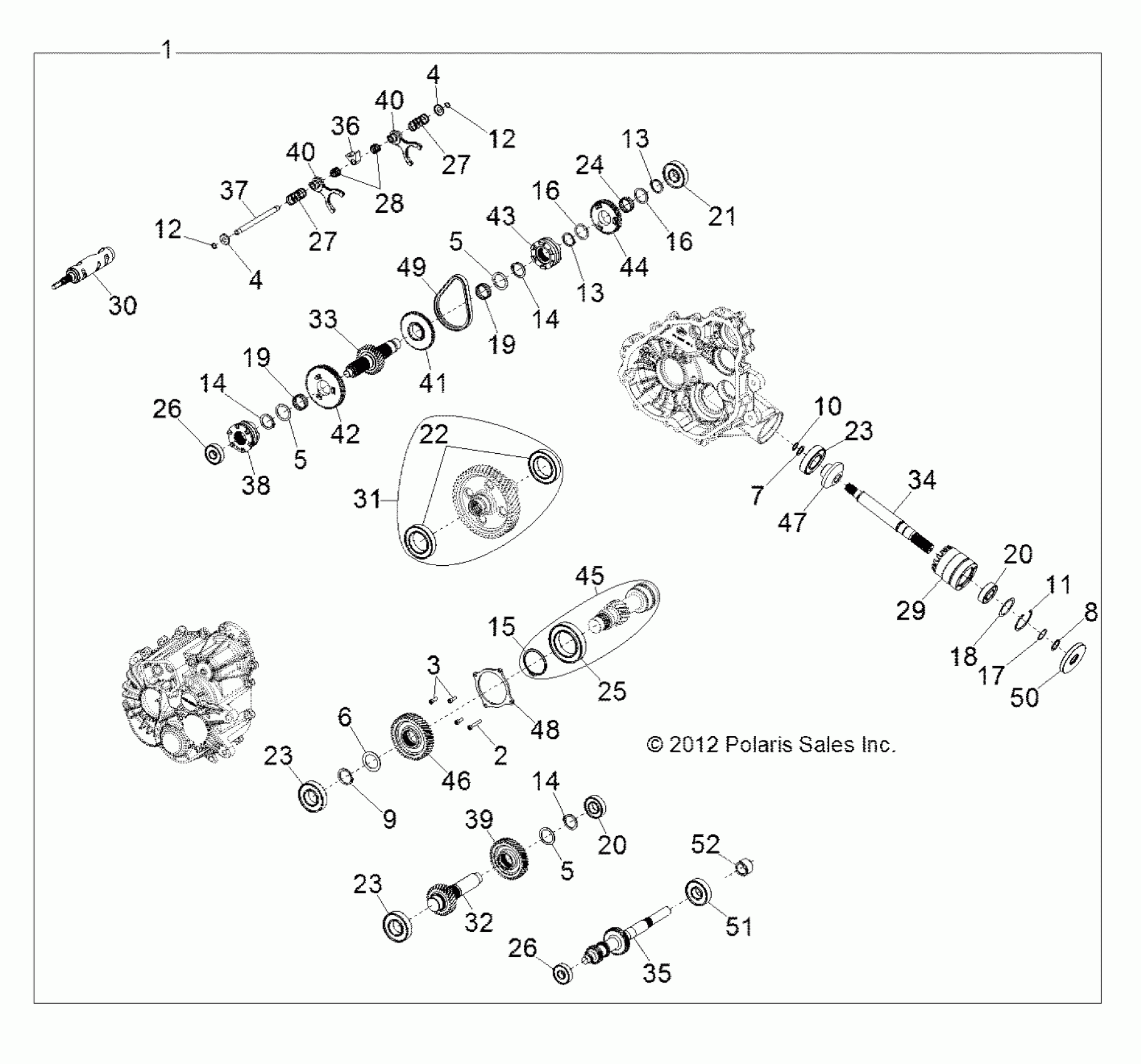

Polaris RZR XP 900 EFI - R13JT87AD/AL/9EAK/EAL/EAO/EAT/EAW/EAP DRIVE TRAIN, MAIN GEARCASE INTERNALS - R13JT87AD/AL/9EAK/EAL/EAO/EAT/EAW/EAP (49RGRTRANSINTL1333044) Diagram

#

Description
Price

1

ASM., GEARCASE [INCL. ALL]

1333044

$3,172.39

2

SCREW, SOCKET HEAD

3235208

$11.19

3

SCREW, SOCKET HEAD

3235332

$3.99

4

WASHER-CUP

3234091

$9.59

4

WASHER-CUP

3234091

$9.59

5

WASHER

3235211

$10.39

5

WASHER

3235211

$10.39

5

WASHER

3235211

$10.39

6

WASHER

3235212

$13.59

7

WASHER

3235213

$15.99

8

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

9

RING, RETAINING

3233364

$6.39

10

RING, RETAINING, EXTERNAL

3234318

$3.19

11

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

12

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

12

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

13

RING, RETAINING

3234205

$11.19

13

RING, RETAINING

3234205

$11.19

14

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

14

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

14

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

15

RING, RETAINING

3235216

$10.39

16

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

16

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

17

SHIM

3234272

$31.99

18

SHIM

3234273

$12.79

19

BEARING, NEEDLE

3233014

$43.99

19

BEARING, NEEDLE

3233014

$43.99

20

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

20

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

21

BEARING

3233020

$47.99

22

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

23

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

23

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

23

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

24

BEARING, NEEDLE

3233384

$31.99

25

BEARING, BALL

3235218

$59.99

26

BEARING, BALL

3234652

$15.99

26

BEARING, BALL

3234652

$15.99

27

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

27

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

28

SPRING, COMPRESSION

3234089

$23.99

29

TUBE

3234278

$95.99

30

DRUM-SHIFT,MACH.(255289)

3235463

$263.99

31

SHAFT, OUTPUT, GEAR [INCL. BEARINGS]

3235335

$342.75

32

SHAFT, IDLER, 29T

3235223

$107.99

33

SHAFT, REVERSE, 29T

3235224

$143.99

34

SHAFT, OUTPUT, FRONT

3235225

$119.99

35

SHAFT, INPUT

3235464

Unavailable

36

COLLAR-SHIFT

3234073

$31.99

37

RAIL, SHIFT SHAFT

3234079

Unavailable

38

DOG, SHIFT, PARK

3235457

$135.99

39

GEAR-44T,STAGE2

3235229

$87.99

40

FORK, SHIFT

3235454

$83.99

40

FORK, SHIFT

3235454

$83.99

41

SPROCKET, 48T, 6 FACE

3235231

$79.99

42

GEAR, 67T

3235232

$115.99

43

DOG, ENGAGEMENT, 6-FACE

3235233

$119.99

44

GEAR, 53T

3235234

$79.99

45

SUBASM.,SHAFT [INCL. BEARINGS, RETAINING RINGS]

3235336

$355.99

46

GEAR, 46T, STAGE 3

3235236

$103.99

47

GEAR, 13T, FRONT OUTPUT

3235237

$123.99

48

COVER-BEARING,CNTR DR.

3235241

$43.99

49

CHAIN,SIL 101,.25P X .40W X58L

3234737

$159.99

50

SEAL, TRIPLE LIP

3234113

$35.99

51

BEARING,BALL 6305RSH2 C3 25MMX62MMX17MM

3235328

$31.99

52

SLEEVE, COLLAR, INPUT SHAFT

3235465

$43.99
