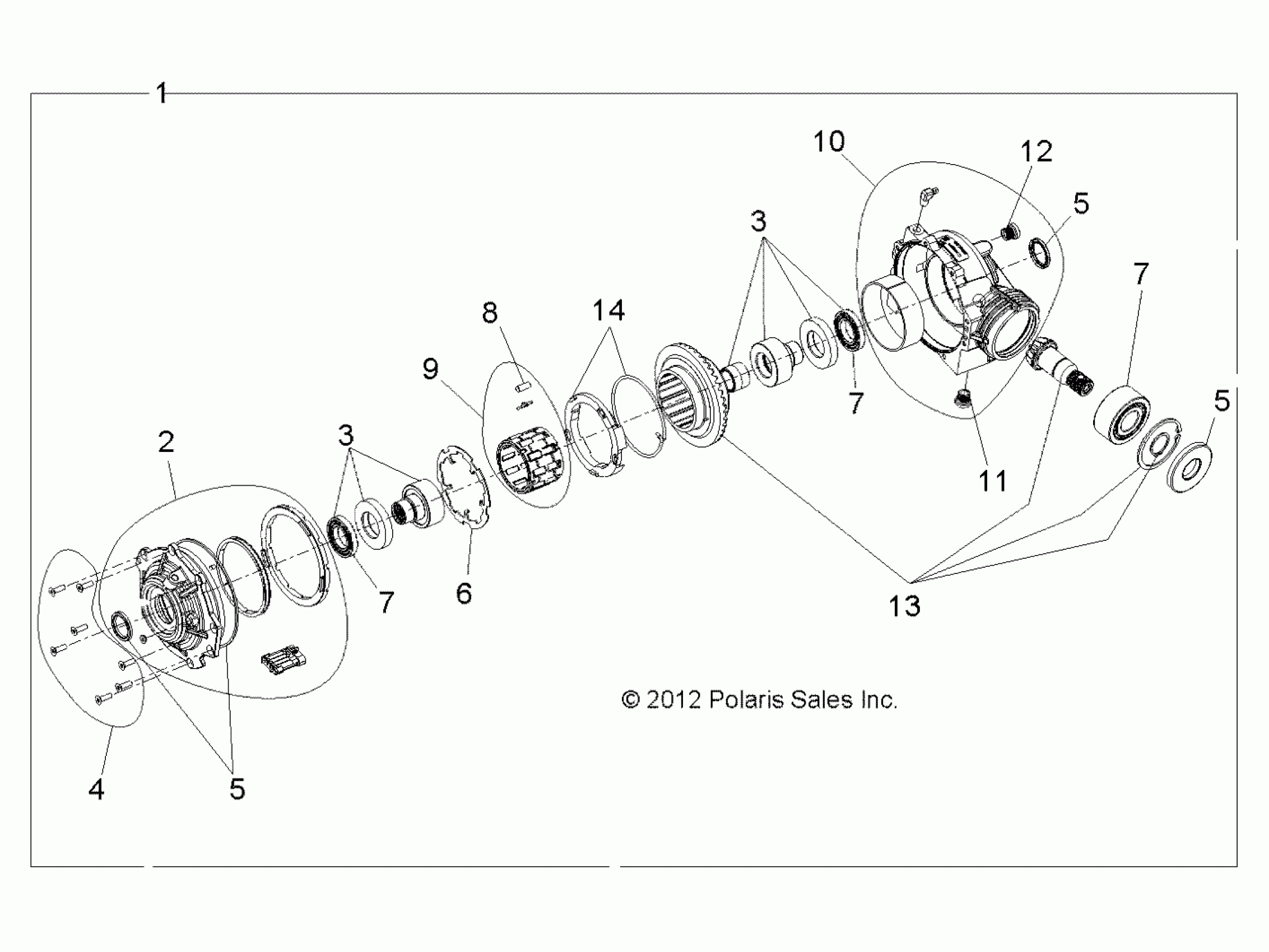

Polaris RZR XP 900 EFI - R13JT87AD/AL/9EAK/EAL/EAO/EAT/EAW/EAP DRIVE TRAIN, FRONT GEARCASE INTERNALS (BUILT 11/27/12 AND AFTER) - R13JT87AD/AL/9EAK/EAL/EAO/EAT/EAW/EAP (49RGRGEARCASE1333105) Diagram

#

Description
Price

1

ASM., GEARCASE, FRONT [INCL. 2-13]

1333105

Unavailable

2

ASM., COVER OUTPUT [INCL. O-RING, DOWEL PIN, OIL SEAL, COVER, CONNECTOR ASM., BACKLASH SPACER, 4WD COIL, GROMMET, HEAT SHRINK TUBING]

3235168

Unavailable

3

KIT, HUB ASM. [INCL. BUSHING, HUB SUB. ASM., NYLON SPACER]

3235169

$382.23

3

KIT, HUB ASM. [INCL. BUSHING, HUB SUB. ASM., NYLON SPACER]

3235169

$382.23

4

KIT, FASTENER [INCL. ALL FASTENERS]

3235170

$19.99

5

KIT, SEAL REPAIR [INCL. ALL SEALS]

3235171

Unavailable

5

KIT, SEAL REPAIR [INCL. ALL SEALS]

3235171

Unavailable

5

KIT, SEAL REPAIR [INCL. ALL SEALS]

3235171

Unavailable

6

PLATE, ARMATURE

3234407

$107.99

7

BEARING, PINION [INCL. ALL BEARINGS]

3235174

$79.99

7

BEARING, PINION [INCL. ALL BEARINGS]

3235174

$79.99

7

BEARING, PINION [INCL. ALL BEARINGS]

3235174

$79.99

8

KIT-ROLLER [INCL. COMPLETE SET OF ROLLER

3234393

$111.84

9

ASM., BILLET ROLL CAGE [INCL. ROLL CAGE, SPRING WIRE FOR, H-CLIP]

3235262

$526.49

10

KIT, GEARCASE ASM. [INCL. HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG, DRAIN PLUG]

3235440

$655.59

11

KIT-PLUG,DRAIN

2203738

$35.99

12

KIT-PLUG,FILL

2203739

$39.99

13

KIT, RING AND PINION [INCL. PINION, BEARING, INTERNAL SNAP RING, RING GEAR ASM., SHAFT RING]

3235441

Unavailable

14

SPRING, TORSION AND RETAINER

3234908

$87.99
