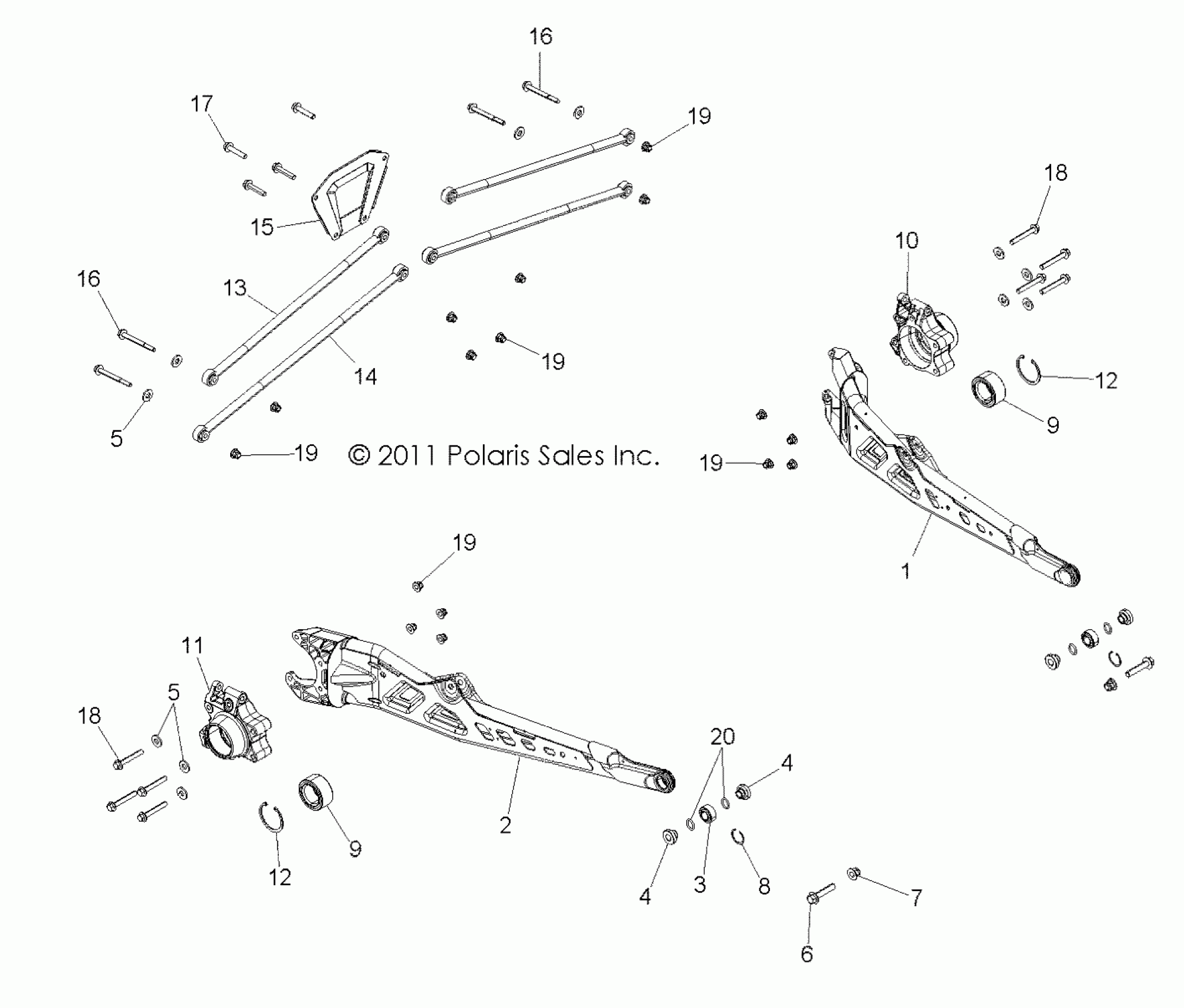

Polaris RZR XP 900 EFI - R12JT87AB/AD/AS/AW/9EAW SUSPENSION, REAR - R12JT87AB/AD/AS/AW/9EAW (49RGRSUSPRR12RZRXP900) Diagram

#

Description
Price

1

Arm, Trailing, LH, Bright White [AS][EAW]

1017465-133

Unavailable

1

Arm, Trailing, LH, Indy Red [AD][AW]

1017465-293

$410.01

2

Arm, Trailing, RH, Bright White [AS][EAW]

1017466-133

$410.01

2

Arm, Trailing, RH, Indy Red [AD][AW]

1017466-293

Unavailable

3

BEARING, SPHERICAL

3514689

$39.99

4

BUSHING, REDUCER

5336751

$6.39

4

BUSHING, REDUCER

5336751

$6.39

5

WASHER, FLAT

7556153

$1.99

5

WASHER, FLAT

7556153

$1.99

6

SCREW

7519138

$9.59

7

NUT, FLANGE, NYLOK

7547334

$4.79

8

RING, RETAINER

7710437

$3.19

9

BEARING, BALL, SEALED

3514699

$39.99

9

BEARING, BALL, SEALED

3514699

$39.99

10

CARRIER, BEARING, WHEEL, LH

5137180

$203.99

11

CARRIER, BEARING, WHEEL, RH

5137181

$203.99

12

RING, RETAINING

7710440

$10.39

12

RING, RETAINING

7710440

$10.39

13

Asm., Radius Rod, Top, VooDoo Blue [EAW]

1542940-619

Unavailable

13

Asm., Radius Rod, Top, Bright White [AS]

1542940-133

Unavailable

13

Asm., Radius Rod, Top, Orange Madness [AB]

1542940-589

Unavailable

13

Asm., Radius Rod, Top, Indy Red [AD][AW]

1542940-293

Unavailable

14

Asm., Radius Rod, Bottom, VooDoo Blue [EAW]

1542941-619

Unavailable

14

Asm., Radius Rod, Bottom, Bright White [AS]

1542941-133

Unavailable

14

Asm., Radius Rod, Bottom, Orange Madness [AB]

1542941-589

Unavailable

14

Asm., Radius Rod, Bottom, Indy Red [AD][AW]

1542941-293

Unavailable

15

Plate, Rear, Bolt Brace, Bright White [AS]

5254609-133

$95.99

15

Plate, Rear, Bolt Brace, Orange Madness [AB]

5254609-589

Unavailable

15

Plate, Rear, Bolt Brace, Indy Red [AD][AW]

5254609-293

$95.99

15

Plate, Rear, Bolt Brace, VooDoo Blue [EAW]

5254609-619

Unavailable

16

SCREW

7519284

$3.99

16

SCREW

7519284

$3.99

17

SCREW

7519306

$5.59

18

SCREW

7519286

$7.19

18

SCREW

7519286

$7.19

19

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

19

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

19

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

19

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

19

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

20

O-RING

5414198

$1.49
