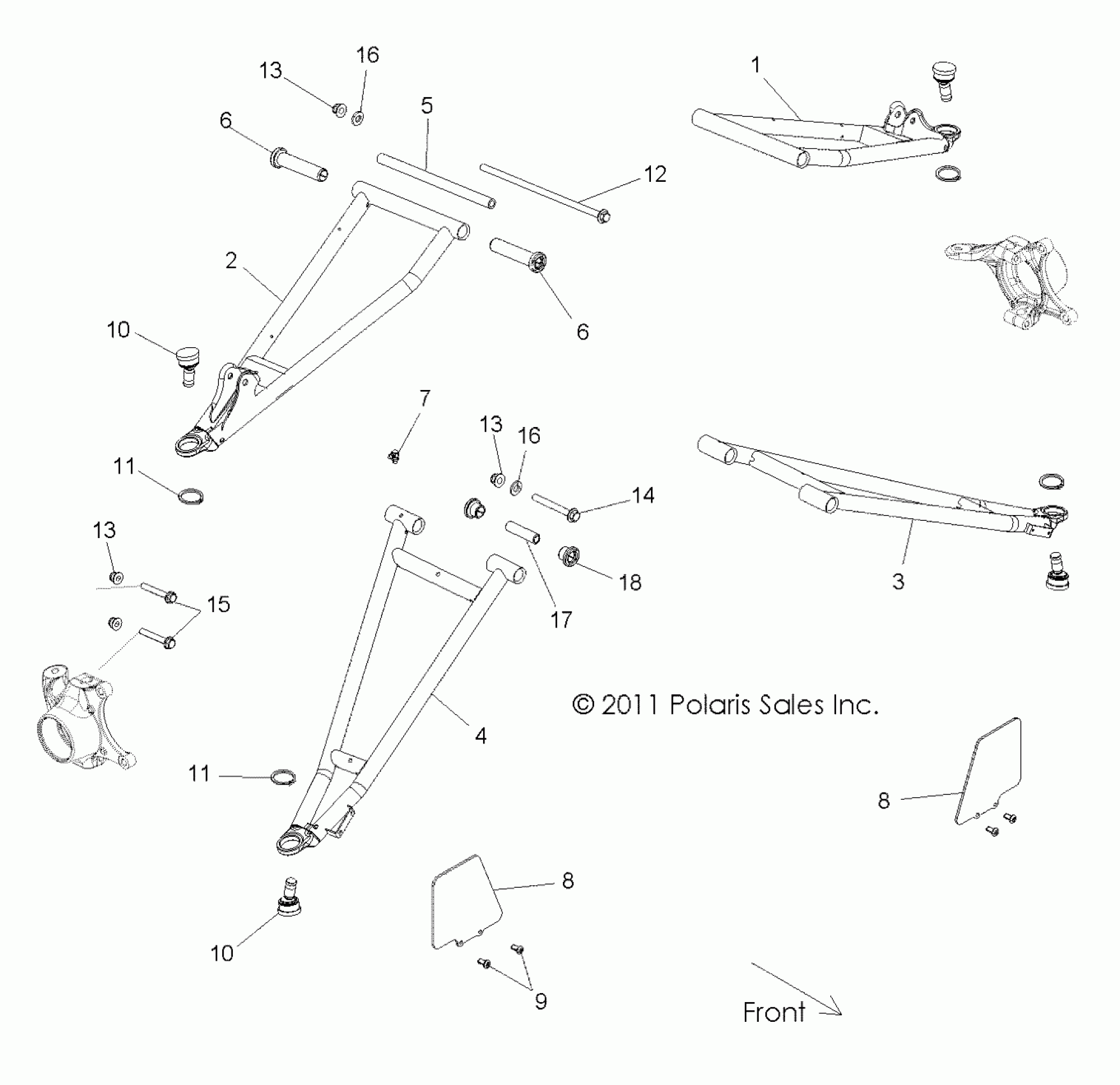

Polaris RZR XP 900 EFI - R12JT87AB/AD/AS/AW/9EAW SUSPENSION, FRONT CONTROL ARMS - R12JT87AB/AD/AS/AW/9EAW (49RGRSUSPFRT12RZRXP900) Diagram

Arm, Control, Upper, Front, Indy Red, LH [AD][AW]

1018199-293

$180.39

Arm, Control, Upper, Front, Bright White, LH [AS][AB][EAW]

1018199-133

$180.39

Arm, Control, Upper, Front, Indy Red, RH [AD][AW]

1018200-293

$180.39

Arm, Control, Upper, Front, Bright White, RH [AS][AB][EAW]

1018200-133

$180.39

Arm, Control, Lower, Front, Indy Red, LH [AD][AW]

1018356-293

Unavailable

Arm, Control, Lower, Front, Bright White, LH [AS][AB][EAW]

1018356-133

Unavailable

Arm, Control, Lower, Front, Indy Red, RH [AD][AW]

1018357-293

Unavailable

Arm, Control, Lower, Front, Bright White, RH [AS][AB][EAW]

1018357-133

$131.99

TUBE, PIVOT

5137104

Unavailable

BUSHING, A-ARM, LONG

5436973

$5.19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

BUSHING, A-ARM, LONG

5436973

$5.19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

FITTING, ZERK

7080510

$5.59

SHIELD, CV, FRONT, BLACK

5438641-070

$3.19

SHIELD, CV, FRONT, BLACK

5438641-070

$3.19

Screw

7512084

$1.49

JOINT, BALL

7081665

Unavailable

JOINT, BALL

7081665

Unavailable

RING, RETAINING

7710533

$2.39

RING, RETAINING

7710533

$2.39

SCREW, FLANGED

7519087

$13.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

SCREW

7519043

$9.59

SCREW, FLANGE

7519306

$5.59

WASHER

7556153

$1.99

WASHER

7556153

$1.99

TUBE, PIVOT

5136100

$15.99

Bushing, Control Arm

5436832

$2.38
