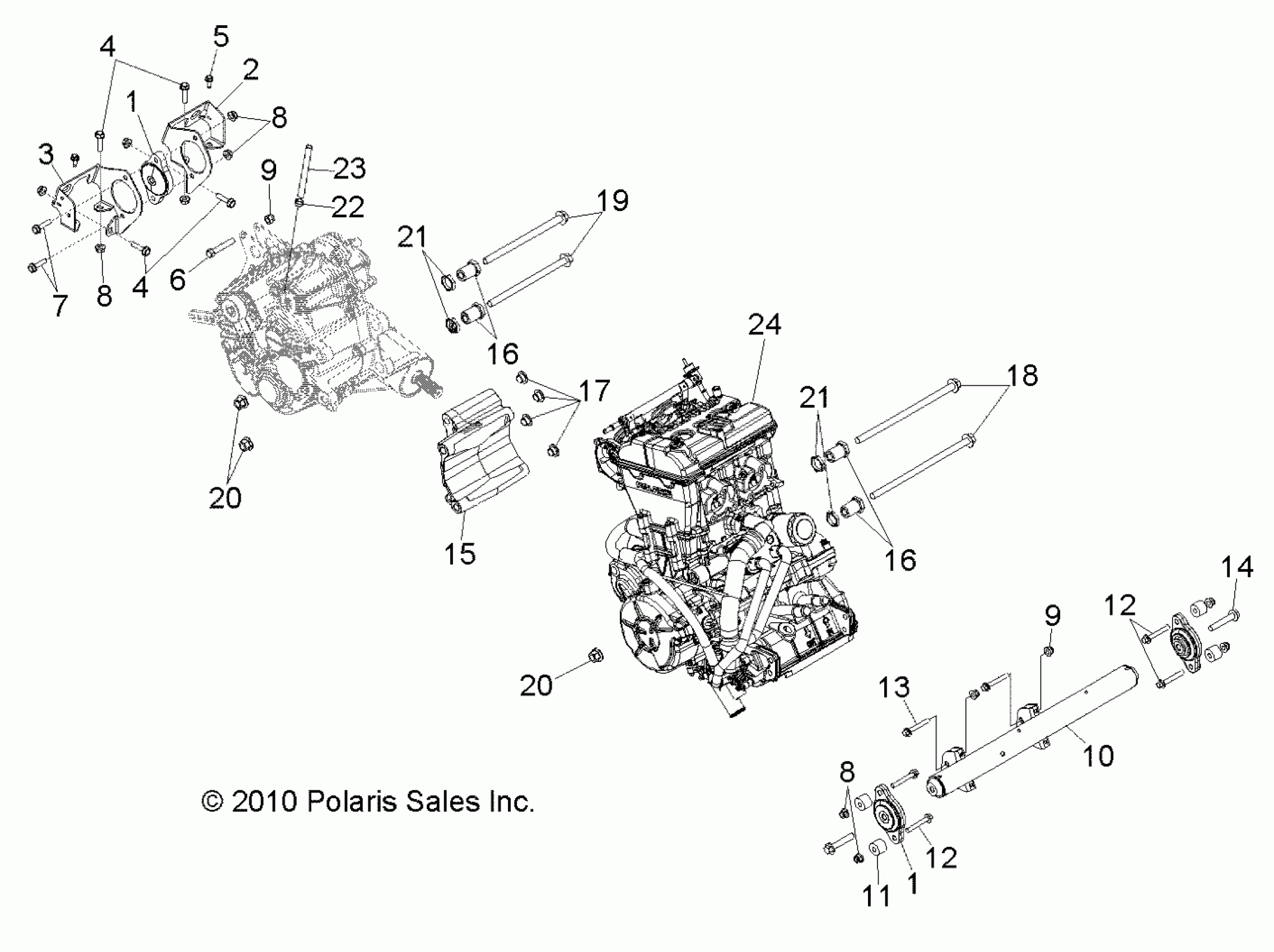

Polaris RZR XP 900 EFI - R12JT87AB/AD/AS/AW/9EAW ENGINE, TRANSMISSION MOUNTING - R12JT87AB/AD/AS/AW/9EAW (49RGRENGINEMTG11RZR875) Diagram

#

Description
Price

1

MOUNT, ISOLATOR

1332924

$101.19

1

MOUNT, ISOLATOR

1332924

$101.19

2

BRACKET, TRANS SUPPORT, REAR, LH, BLACK

5254350-458

$59.99

3

BRACKET, TRANS SUPPORT, REAR, RH, BLACK

5254351-458

$59.99

4

BOLT

7518702

$3.99

4

BOLT

7518702

$3.99

5

BOLT

7518555

$2.39

6

BOLT

7518563

$3.19

7

SCREW

7519052

$1.59

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

9

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

9

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

TUBE, MOUNT, ENGINE, BLACK

1017742-329

$147.99

11

SPACER, TUBE

5336305

$13.59

12

SCREW

7517281

$8.99

12

SCREW

7517281

$8.99

13

SCREW

7519332

$5.59

14

BOLT

7518826

$4.79

15

Coupler, Trans, Interm

5137277

$280.78

16

Spacer, Trans

5137310

$31.99

16

Spacer, Trans

5137310

$31.99

17

Bushing, Engine Mount

5137670

Unavailable

18

Screw

7519300

$51.99

19

Screw

7519301

$51.99

20

NUT, FLANGE, NYLOK

7547334

$4.79

20

NUT, FLANGE, NYLOK

7547334

$4.79

21

Nut, Jam

7547482

$9.59

21

Nut, Jam

7547482

$9.59

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

Line, Fuel

8450003-1525

Unavailable

24

Kit, Short Block The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, a piston & crankshaft assembly, and oil tank. Prior authorization required.

2204635

Unavailable
