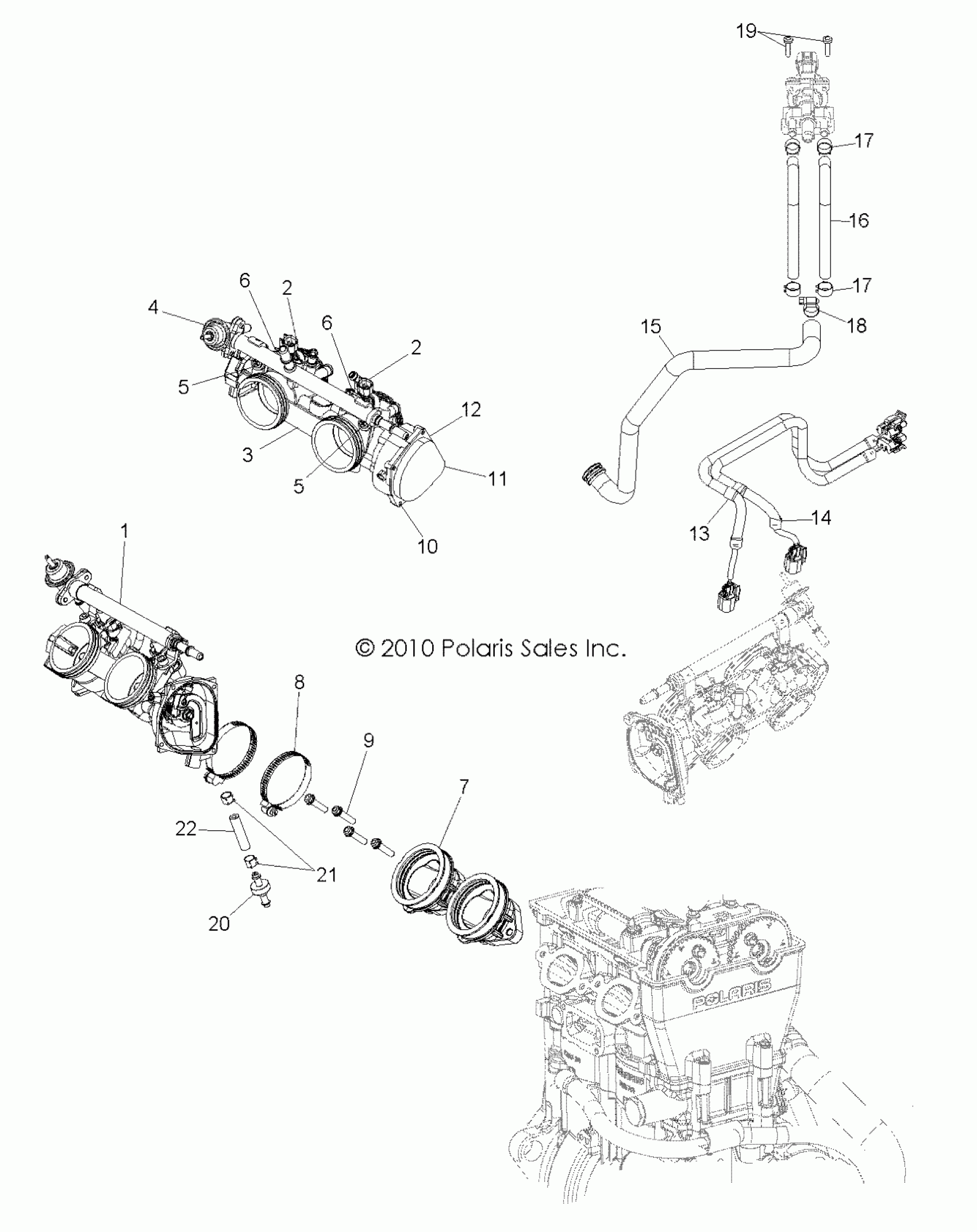

Polaris RZR XP 900 EFI - R12JT87AB/AD/AS/AW/9EAW ENGINE, THROTTLE BODY and INJECTOR - R12JT87AB/AD/AS/AW/9EAW (49RGRTHROTTLEBODY11RZRS) Diagram

Asm., Throttle Body, Dual [Incl. 1-6][Built 11/10/11 and After]

1204552

$756.57

Asm., Throttle Body, Dual [Incl. 1-6][Built 11/09/11 and Before]

1204120

$848.39

INJECTOR, FUEL

2521068

$95.99

INJECTOR, FUEL

2521068

$95.99

Asm., Throttle Body, Dual [Used w/1204552]

3131733

Unavailable

Asm., Throttle Body, Dual [Used w/1204120]

3131714

Unavailable

ASM., FUEL RAIL

3131715

$319.99

BOLT, FUEL RAIL

3131716

$4.79

BOLT, FUEL RAIL

3131716

$4.79

CLIP, INJECTOR

3131717

$11.19

CLIP, INJECTOR

3131717

$11.19

ADAPTER, THROTTLE BODY

1204490

Unavailable

Clamp, Narrow Band

7080413

$3.19

SCREW

7519297

$3.99

SCREW-MIKUNI C2=0408

3130592

Unavailable

Cover, Throttle Cam [Built 11/09/11 and Before]

5253974

$31.99

Cover, Throttle Cam [Built 11/10/11 and After]

3131734

$27.99

O-Ring, Throttle Cam Cover [Built 11/09/11 and Before]

5413898

$11.19

O-Ring, Throttle Cam Cover [Built 11/10/11 and After]

3131735

$7.19

ASM., INJECTOR, FUEL, MAG, BLACK

1204366

$51.99

ASM., INJECTOR, FUEL, PTO, GRAY

1204367

$35.99

HOSE, IAC, FORMED

5813644

$39.99

HOSE, IAC, SHORT

5813672

$5.59

HOSE CLAMP, RED

7080003

$1.49

HOSE CLAMP, RED

7080003

$1.49

CLAMP-HOSE,.875-SS

7080474

$8.40

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

VALVE, CHECK

7052038

$10.51

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

HOSE

8450113-153

Unavailable
