Partiron

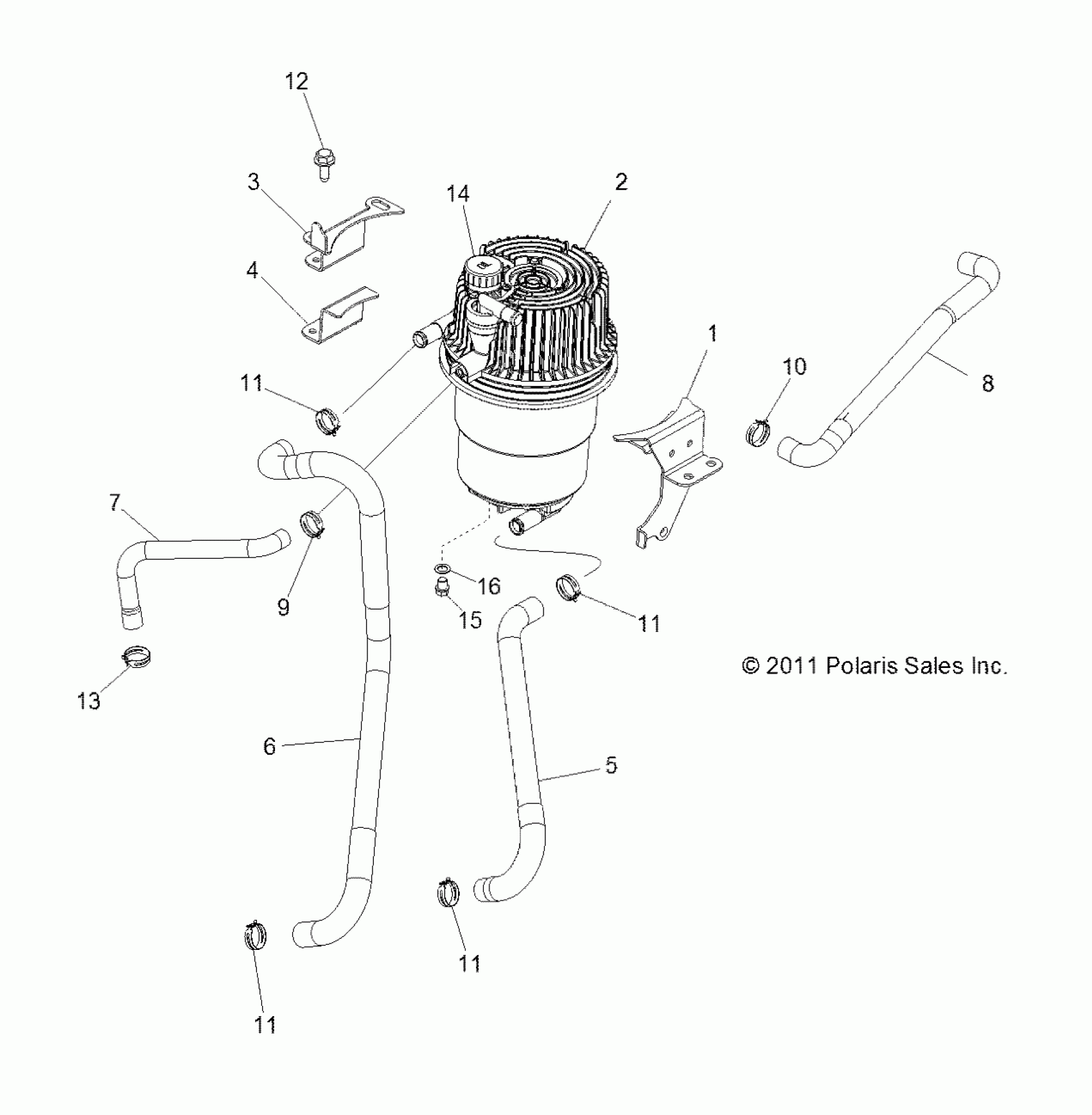

Polaris RZR XP 900 EFI - R12JT87AB/AD/AS/AW/9EAW ENGINE, OIL TANK and LINES - R12JT87AB/AD/AS/AW/9EAW (49RGROILTANK12RZRXP4) Diagram

#

Description
Price

1

Mount, Oil Bottle, Front

1018059

$84.98

2

Asm., Oil Tank [Incl. 14]

1204213

Unavailable

3

Bracket, Oil Bottle, Upper, Rear

5254062

Unavailable

4

Bracket, Oil Bottle, Lower, Rear

5254063

$32.37

5

Line, Main, Oil Supply

5413931

$68.79

6

Line, Main, Oil Return

5413932

$95.99

7

Line, Oil/Air, Top

5413933

$119.99

8

Line, Oil Bottle Vent

5413934

$99.99

9

CLAMP, HOSE, SPRING

7081026

$7.99

10

CLAMP, SPRINGBAND

7080841

$7.19

11

Clamp, Constant Tension

7081415

$7.19

11

Clamp, Constant Tension

7081415

$7.19

11

Clamp, Constant Tension

7081415

$7.19

11

Clamp, Constant Tension

7081415

$7.19

12

BOLT

7518555

$2.39

13

Clamp, Hose, Spring

7081533

$3.99

14

Dipstick

5439524

Unavailable

15

Plug, Drain

7052548

Unavailable

16

Seal

0451514

$9.59
