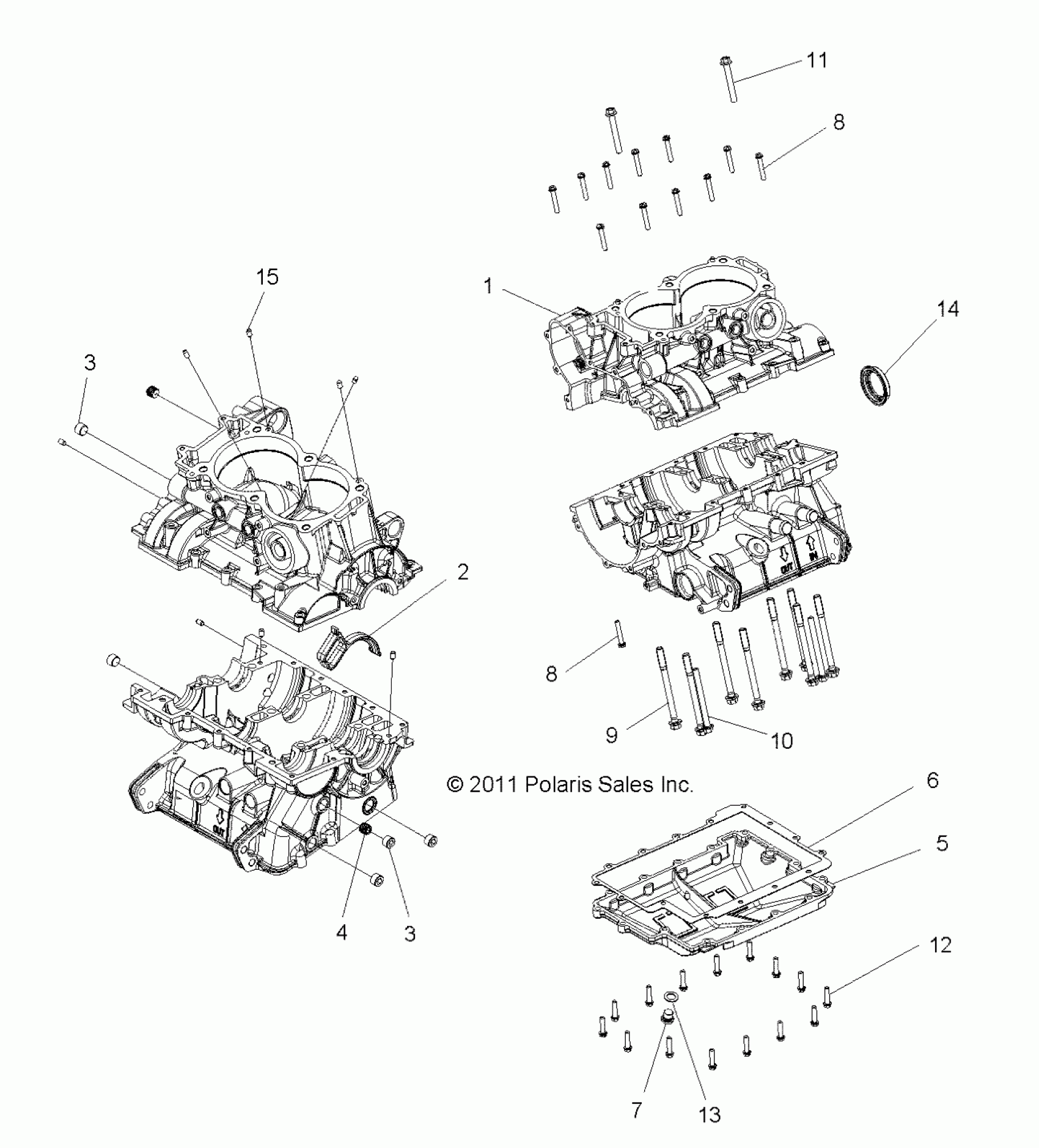

Polaris RZR XP 900 EFI - R12JT87AB/AD/AS/AW/9EAW ENGINE, CRANKCASE - R12JT87AB/AD/AS/AW/9EAW (49RGRCRANKCASE12RZRXP900) Diagram

#

Description
Price

1

Kit, Crankcase [Incl. 2-4,8-10,15]

2204636

Unavailable

2

DIVERTER, OIL DRAIN

5438214

Unavailable

3

PLUG

7052306

$15.37

3

PLUG

7052306

$15.37

4

PLUG, HEX SOCKET

7518835

$5.59

5

Cover, Oil Sump

5137037

$101.17

6

Gasket, Oil Sump Cover

5813518

Unavailable

7

PLUG-SOCKET,M12X1.5 DIN 908A

7052306

$15.37

8

SCREW

7518578

$3.99

8

SCREW

7518578

$3.99

9

SCREW

7519141

Unavailable

10

SCREW

7519154

$7.19

11

SCREW

7519186

$6.53

12

SCREW

7519297

$3.99

13

WASHER, COPPER

5812232

$1.59

14

SEAL, FLANGE

3610176

$31.99

15

PIN-DOWEL,M6X10

5136879

Unavailable
